2000L S/S JKTD Vacuum Conical Littleford Mixer/Drier Model MBX525

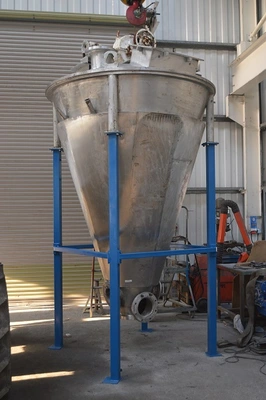

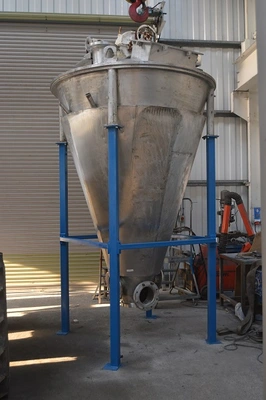

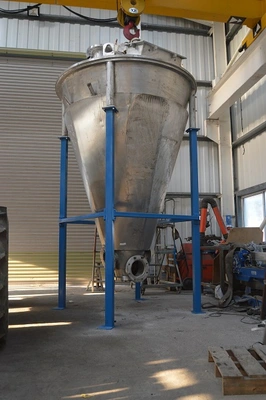

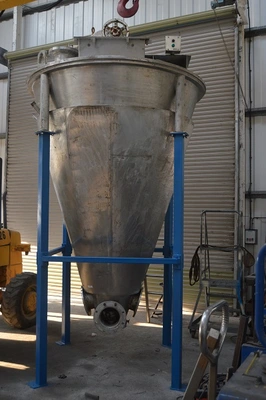

All Stainless Steel Water Jacketed J H Day Littleford Conical mixer Drier Model MBX525. (CS) NAUTA type Conical mixer Drier Chamber Full Vacuum 250F with Stainless Steel Water Jacket.
2000mm dia x 2600mm deep. Overall height 3750mm. With domed welded lid with 610mm x 355mm manway, 2 off 150mm dia sight glasses, 90mm dia, 63mm dia , 50mm dia and 25mm dia inlets with 200mm dia bottom outlet.
 Two lump breakers
each
driven by 7.5KW motor 380/3/50Ac. Main motor driving arm is 0.75KW
380/3/50Ac

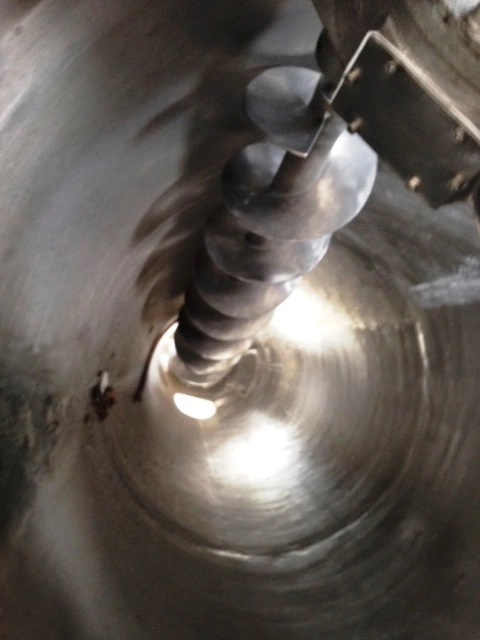

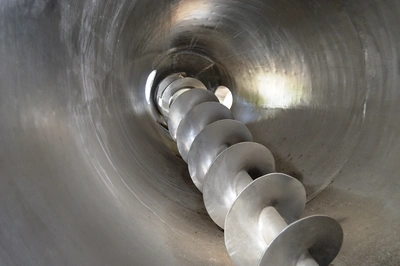

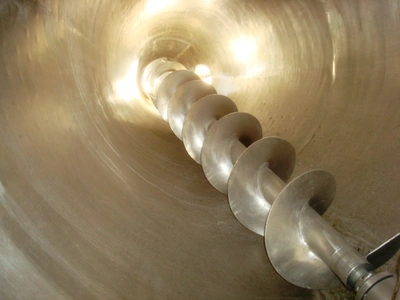

at 2.2 RPM. Motor for screw is 7.5KW 280/230/460/3/50Ac at 64RPM.

Serial No 89328/56135. New 1993. Stainless Steel Control
Cabinet.
