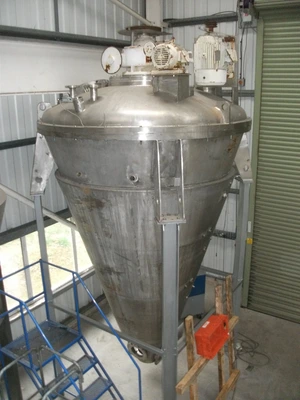

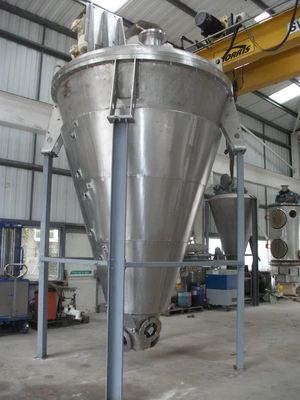

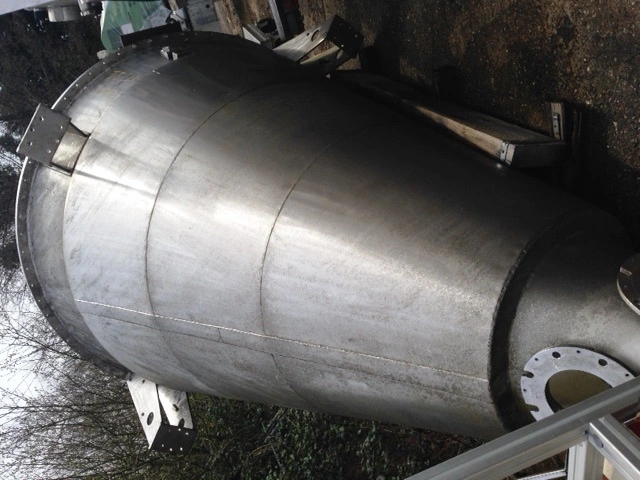

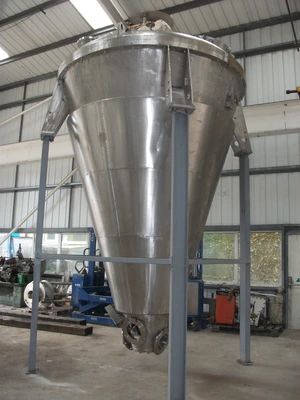

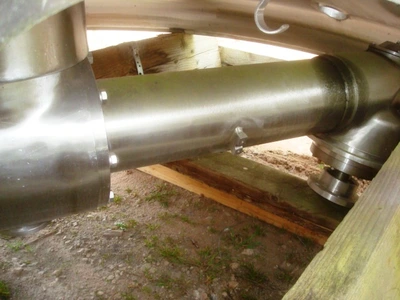

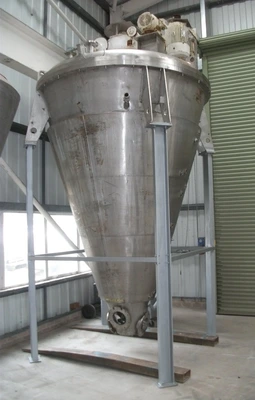

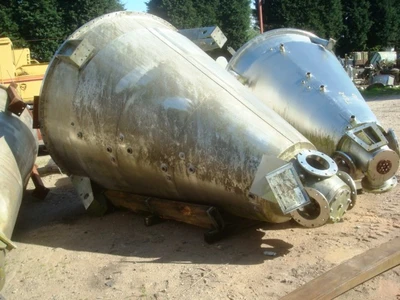

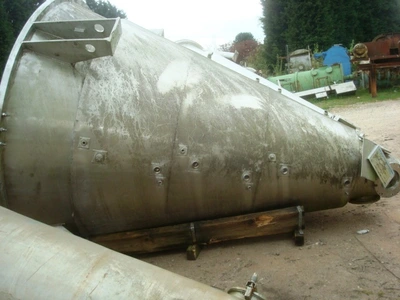

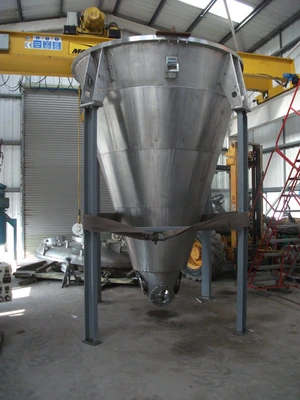

4,000L S/S JKTD Vacuum Conical J. H. Day Mixer Model 1225MBX

All Stainless Steel Quality Steam/Water Jacketed Conical
Vacuum

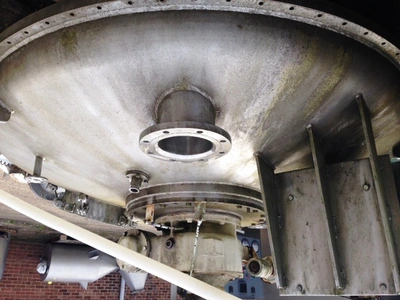

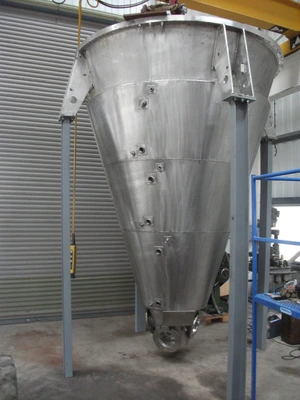

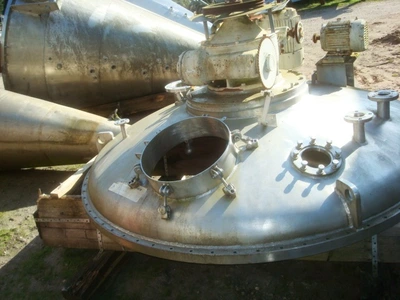

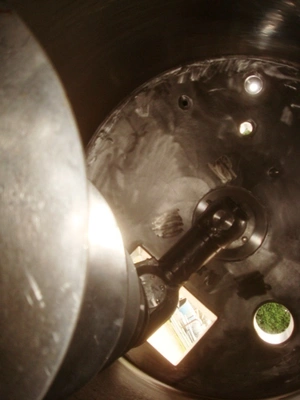

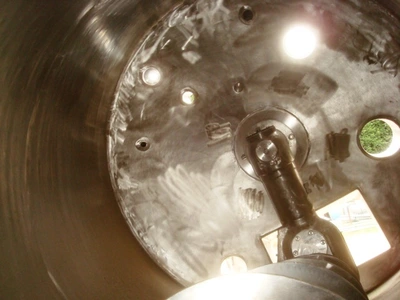

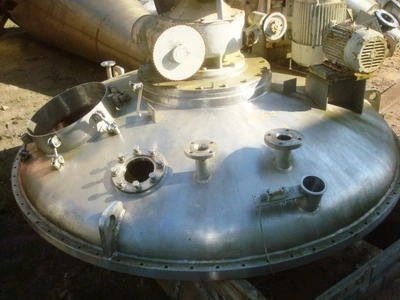

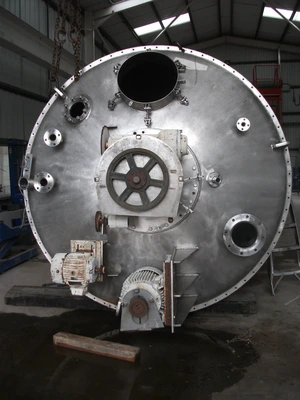

Mixer made by J. H. Day Model 1225 MBX. Chamber 2,490mm dia x 3,510mm deep  Dish  bolted removable lid with various connections and 500mm dia removable manhole cover. Sprayball Two Lump Breakers each driven by
7.5 kW 380/3/50Ac at 1,465 rpm. Main

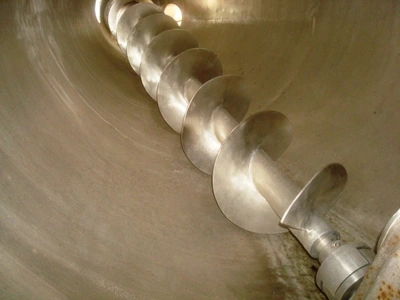

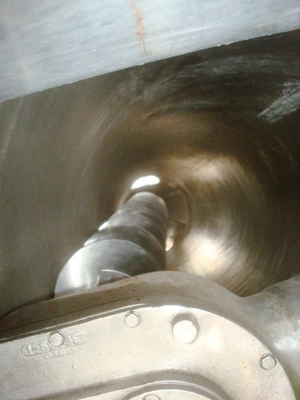

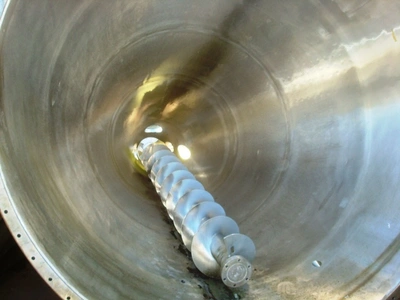

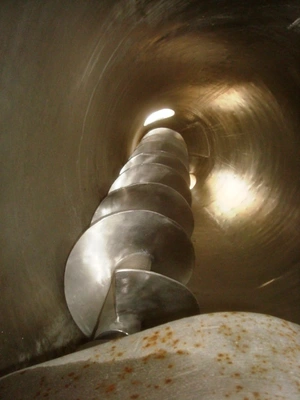

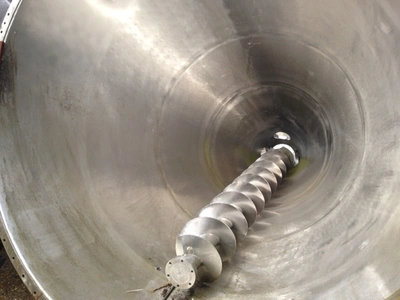

motor driving arm is 11 kW 190/380/3/50Ac at 2.2 rpm. Motor for screw is

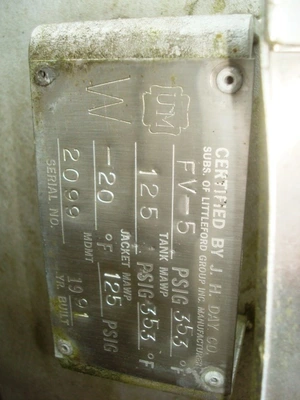

1.5 kW. 190/380/3/50Ac at 64 rpm. (No legs.) Tank Fullvac to 5 PSIG @ 353
degrees F, Jacket 125 PSIG @ 353 degrees F, Min jacket temp - 20 degrees F @

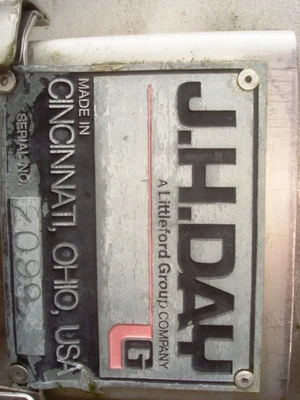

125 PSIG.  Serial number 2099. New 1991. Stainless steel control panel.
