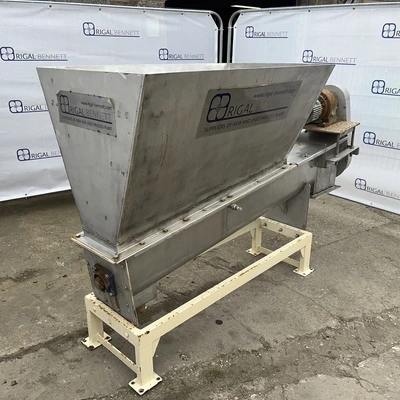

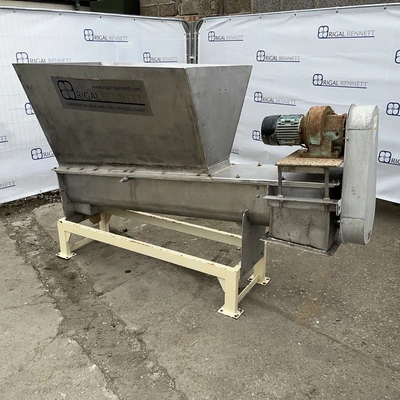

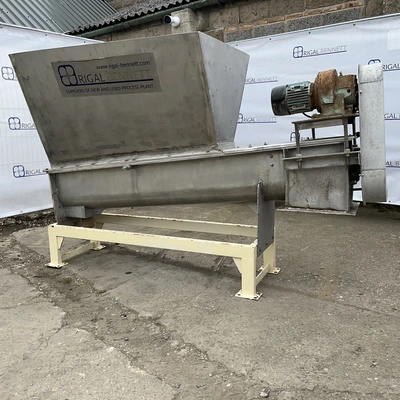

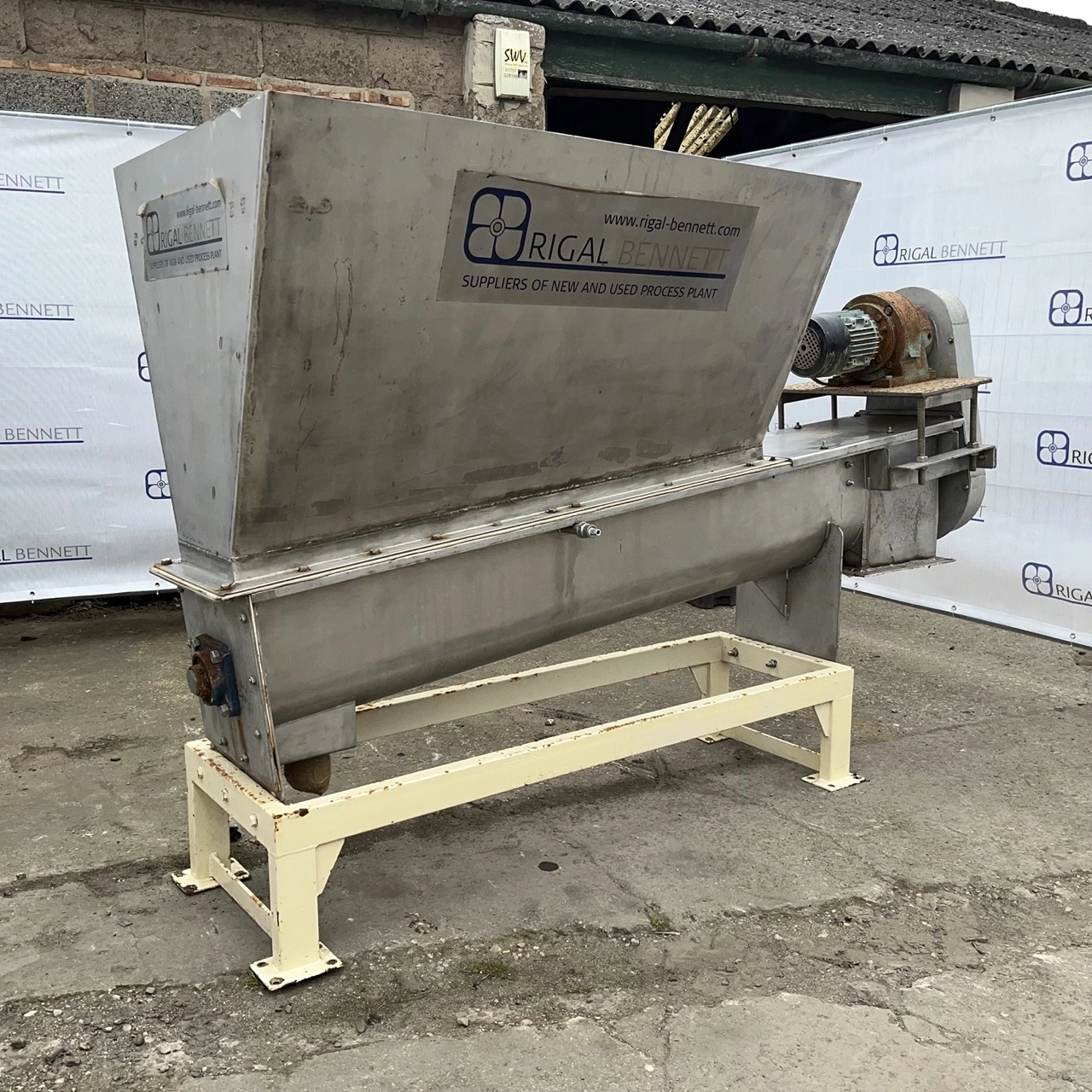

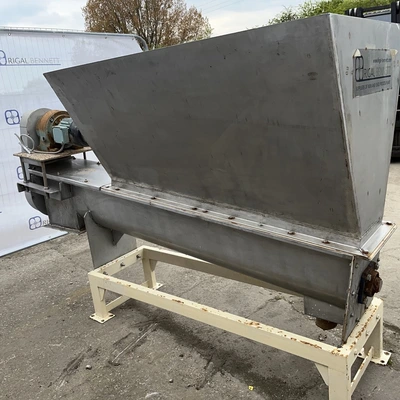

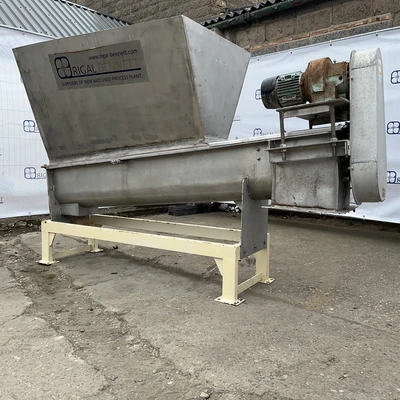

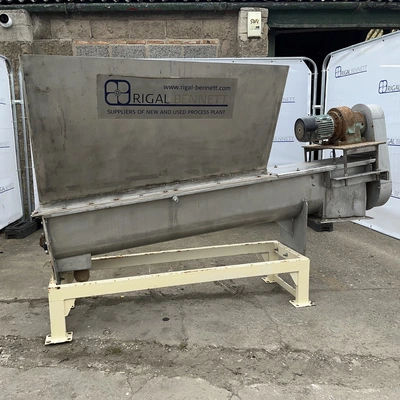

S/S U Section Conveyor 300Mm X 2000Mm

Stainless Steel 300 mm Wide X 350mm Deep X 2000 mm Long With Bolt On Lid Top With 280mm X 455mm Inlet. With Feed Shoot 1,400 mm x 850 mm x 560 mm deep with internal grid. Bottom End 340mm X 250mm Outlet. Opposite End 75mm Dia Drain. Mounted On Mild Steel Frame To Give A 10 Degree Angle To Give 700mm Ground Clearance From Discharge.

Stainless Steel U-Section Conveyor – 300 mm x 2000 mm
A compact, robust stainless steel U-section conveyor designed for controlled transfer of bulk materials. Complete with bolt-on lid, feed chute, and supporting frame set at a fixed incline for efficient product flow.
Key Features

300 mm wide conveyor channel

2,000 mm overall length

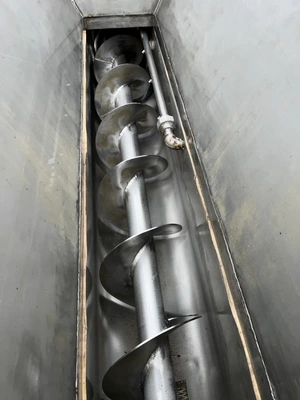

Deep U-section design for improved containment

Stainless steel construction with bolt-on top lid

Integrated feed chute with internal safety grid

Discharge end positioned at 700 mm height via mild-steel support frame

Conveyor Specifications

Channel Size: 300 mm wide × 350 mm deep × 2,000 mm long

Top Lid: Bolt-on stainless steel cover

Inlet Opening: 280 mm × 455 mm

Outlet (Bottom End): 340 mm × 250 mm

Opposite End: 75 mm dia drain connection

Feed Chute Details

Dimensions: 1,400 mm (L) × 850 mm (W) × 560 mm (Deep)

Features: Internal grid for product control and safety

Mounting & Orientation

Mounted on a sturdy mild-steel frame

Fixed 10° incline for consistent product discharge

Provides 700 mm ground clearance at the outlet
