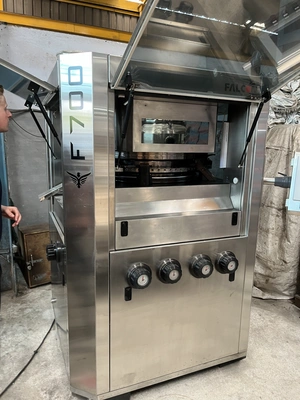

Type -B4 Model 27 Station Rotary Tablet Press 10 Ton

Type -B4 Model 27 Station Rotary Tablet Press 10 Ton
Rotary
Tablet Press Type Tooling D , 27 Station, Max.Operating Pressure 10
Ton, Max Tablet Diameter 25 mm., Max Tablet Depth of fill 20 mm max
thickness of tablet 18 mm
output tab/hr 48,000 to 125,000.
upper punch penetration 1.5 mm to 8 mm turret RPM 16 to 40 Rpm. power
supply 3.7 kw / 1440 rpm / 3 phase. overall size 1,85 mm x 1850 mm x
2,000 mm tall weight 2,100 kg


KEY Features

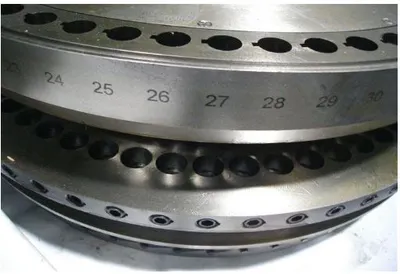

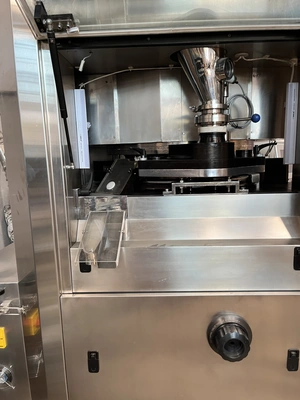

– B4 Model Tablet Press – cGMP model, in terms of safety, accuracy,surface finish, absence of sharp corners, clean ability, assembling & dismantling ofcomponentsand control system for its intended use.? Ideal machine for production (Single layer & bi layer production)? Easy to operate, maintain & change over.? Re-designed variable speed pulley (for speed adjustment).? Turret of SG IRON 500/12 grade.? Sturdy and easy fit M Type Feed Frame with sufficient height to avoid spill over of powder.? Central oil lubrication system with hand pump.? Machine can be equipped to compress two-layered tablets (Optional).? Cam tracks and pressure rolls made out of alloy steel for maximum wear resistanceandlong life. Worm is made up Phosphor Bronze.? Machine is totally enclosed i.e. Top half of the machine (Compression zone) with S.S.hood, acrylic covers, and lower half of the machine complete with SS Cover in GMPModeland in standard model top hood and lower half of the machine with MS colorpainted. This reduces the noise level and to & fro flow of dust between compressionzone and machine room.? Anti vibration mounting provided, hence no foundation required.? Large paints free compression zone with plenty of space for ease ofcleaning &accessibility of components in GMP Model.? Precision machined turret with double thrust bearing with lower punch seal &keyway inupper punch bore for shaped punches.? Higher turret speed 15 to 42 RPM gives higher output than standard machine.? The equipment will rest on vibration mounting pads to enable proper leveling of the
? Friction plate is provided on cam plate to minimize wear & tear of cam track, whichalsofacilitates its easy replacement.? Fly over on upper punch is provided to avoid the jumping of upper punches.? Reverse direction motion protection is provided to avoid major accident.? Imported needle roller bearing provided at the bottom of turret, which is immersedin oilfor frictionless rotation.? Aluminum covers for rotor teeth.? Auto Lubrication pump will be provide on demand (Optional feature).? Force Feeder will be provide on demand (Optional feature).? Electro less nickel plating on turret – provides excellent protection against corrosionfromsalts, acids, alkali, humidity, temperature etc.? Dial gauge for main compression (10 ton) & fill depth control (all tablet parameterscan becontrolled from outside (Optional feature).

ELNP –Electro Less Nickel Plating (Optional Feature)
There will be one process applied on turret called ELNP which will form a very thin layeronthe turret. It will ensure lesser chances of Turret getting rusted due to outsidemoisture/humid condition and thus increased the durability.

ACVF Drive (Alternative Current Frequency Drive)
A) While machine is on, we can increase decrease the RPM Speed of the machine aspercustomized requirement.B) It will save motor form getting unwanted load during power fluctuation and thuscanensure durability.

Detachable Electrical Panel:
There will be detachable electrical panel provided with Machine, which will be with allelectrical components i.e. ACVF drive, relay, contactor etc.. So it will reduce the chances ofcontamination. And while cleaning the bottom parts of the machine, electricalcomponent will have reduced chances of getting affected due to dust and other outsideobjects.

INCLUDING ACESSORIES
