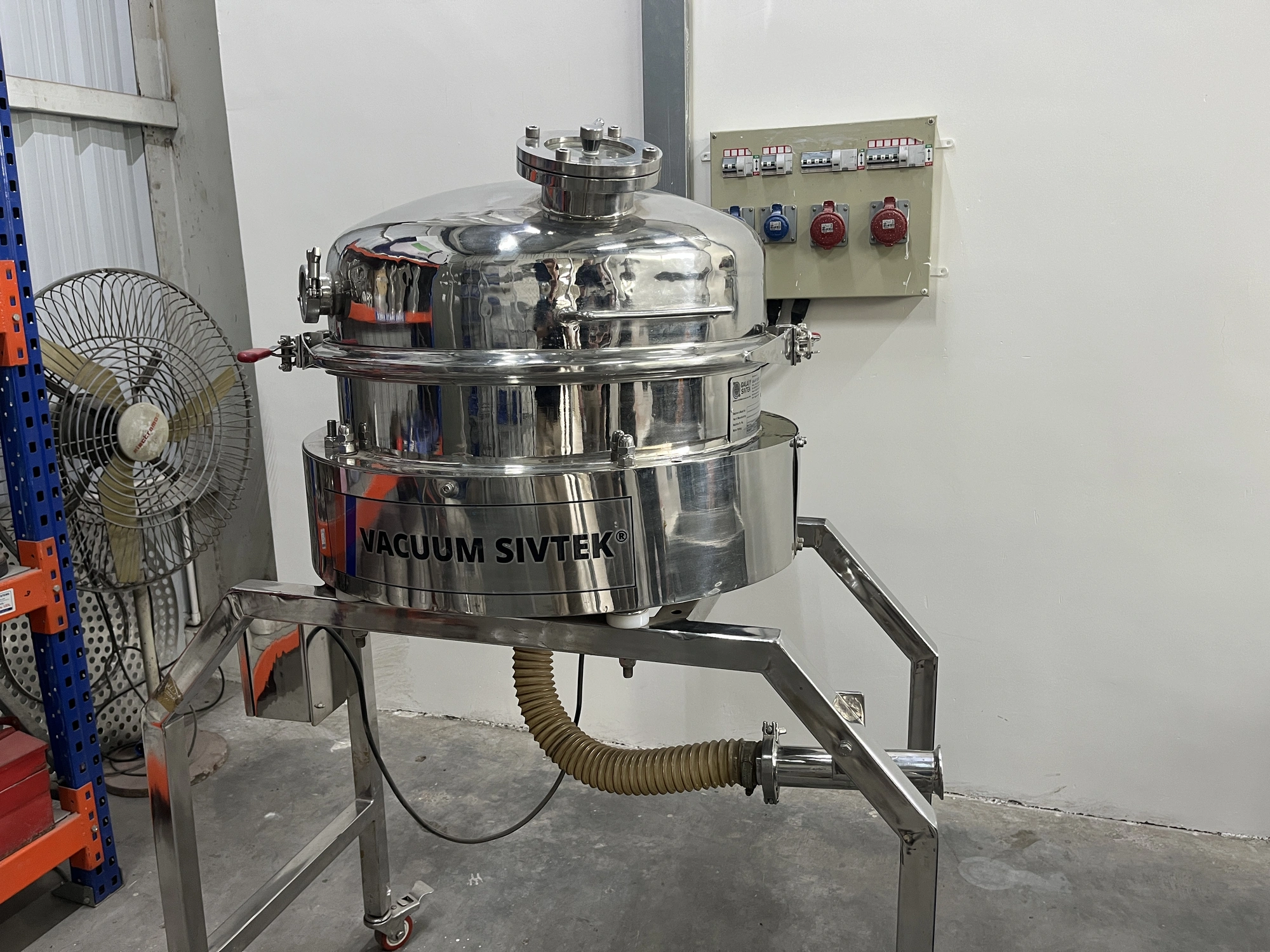

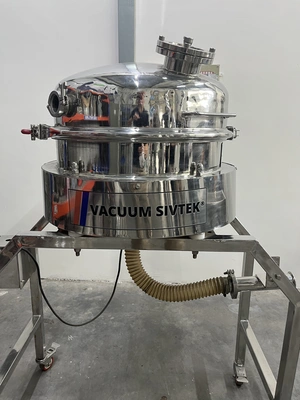

New Vacuum Seive 1600mm x 1.81m2

Description

The Vacuum Sieve is a cutting-edge vacuum sieve, designed for
efficient particle sieving in contained environments, making it ideal for
industries such as pharmaceuticals and chemicals, where handling hazardous or
contagious materials requires strict containment.

Its pneumatic screening system ensures that materials are
securely contained throughout the sieving process, maintaining safety and
preventing contamination while delivering optimal sieving quality. The
self-loading sieve arrangement further enhances ease of operation, making the
Vacuum Sieve both efficient and user-friendly.

Built from high-quality stainless steel, available in SS 304
to SS 316L grades, the Vacuum Sieve ensures durability and safety. It can be
customized in sizes ranging from 24” to 48” in diameter to meet specific needs.

As a leading manufacturer of sieving machines, we are
dedicated to providing top-tier sieving solutions. Our machines are known for
their powerful vibrations, exceptional hygiene standards, and safety
certifications, including CGMP and FDA compliance.

Features

-

Conceal
System

-

Hygienic
Sieving Experience

-

Convenient
Inspection Window

-

Customization
Options

How it works

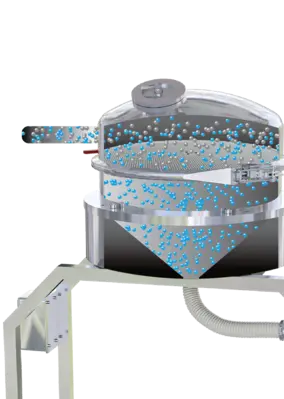

The Vacuum sieve utilizes a pneumatic sifter vibratory
separator for in-line pneumatic scalping and dedusting of free-flowing
materials, leveraging dilute-phase pneumatic conveying systems. A central
bypass chute connects the top and bottom screens, enabling on-size materials to
enter the central chamber through two pathways: upward through the top screen
and downward via the chute, or directly down through the bottom screen. Any
oversize materials are ejected through a spout located at the periphery of the
lower screen. This efficient design ensures precise separation and handling of
materials within a contained environment.

Specification

Diameter – 1600 mm

Area – 1.81 m
2


Layers - 1

Application

Ideal for dry material with low
bulk density, to avoid contamination and run the risk of batch failure. Liquid
application requires frequent cleaning and increased manpower.

Product Advantage



-

Higher
Output

-

Dust-free
Operation

-

Compact
Design
