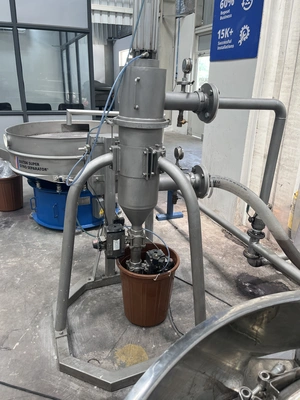

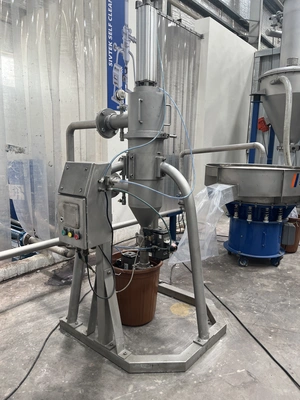

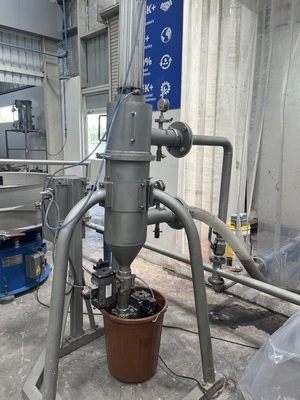

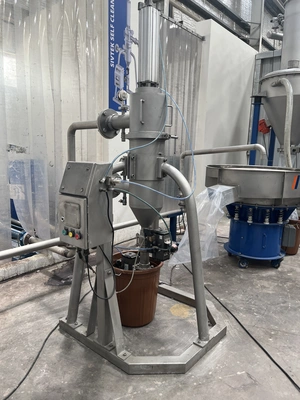

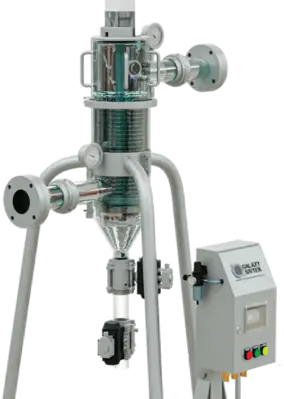

0.16 m.Sq S/S Sivtek self cleaning filter

Stainless Steel screen 457 mm dia

Description:The automatic filter's ingenious, robust design eliminates the need for filter changes, allowing continuous processing. Unlike conventional filters that require cleaning after each batch, our automatic filters use pneumatic actuators and a cleaning disk. Designed to efficiently strain watery applications as well as highly viscous substances. Its automatic filters can eliminate suspended and unwanted particles present in the substance.  Automatic filters are considered superior to conventional self-cleaning strainers. Using Delta P's principle, these filters regulate pressure differences to enable continuous automatic filtering. FeaturesAutomatic Pneumatic Actuators While conventional filters need periodic cleaning after each batch, our automatic filters use pneumatic actuators and a cleaning disk.Hygienic Filtration The self-cleaning filter comes with a cleaning disk that accumulates the particles and residues from the periphery of the basket.High-Temperature Filtration Self Cleaning Filters can withstand the filtration of liquids that are as hot as 250 DegreeC. Plug and Play Function The 'Plug and Play Function' of the machine automatically controls cylinder strokes which rotates the cleaning disk and removes the contaminants on the filter. How it worksThe Self-Cleaning Filter operates on the principle of differential pressure (ΔP), where material flows from a high-pressure zone to a low-pressure zone. Particles collect on the basket's outer periphery and are periodically removed by a disc cleaning arrangement, depositing the material in the bottom chamber for flushing out at regular intervals. SpecificationsDiameter - 457 mm Area - 0.16 M squared Layers - 1 Pressure - 10 bar (potential for more)Viscosity - 1cp to 50000cp  ApplicationsSuitable for most process industries such as: - Food processing - Pharmaceutical - Chemical - Paint - ETP industries - Also used for liquid solid separation for variety of viscosity Product Advantage Optimum Filtration - The filters provide the finest level of screening, and the cleaning disk assures to keep the filters clean. Lower Maintenance - With most of the processes being automated, it is considerably easier to maintain and clean this machine. 24/7 Continuous Processing - The most impressive property of our product is is the 24/7 capacity to continuously process the substance without taking a break.
Description:
The automatic filter's ingenious, robust design eliminates the need for filter changes, allowing continuous processing. Unlike conventional filters that require cleaning after each batch, our automatic filters use pneumatic actuators and a cleaning disk.

Designed to efficiently strain watery applications as well as highly viscous substances. Its automatic filters can eliminate suspended and unwanted particles present in the substance.
Automatic filters are considered superior to conventional self-cleaning strainers. Using Delta P's principle, these filters regulate pressure differences to enable continuous automatic filtering.

Features
Automatic Pneumatic Actuators
While conventional filters need periodic cleaning after each batch, our automatic filters use pneumatic actuators and a cleaning disk.
Hygienic Filtration
The self-cleaning filter comes with a cleaning disk that accumulates the particles and residues from the periphery of the basket.
High-Temperature Filtration
Self Cleaning Filters can withstand the filtration of liquids that are as hot as 250 DegreeC.
Plug and Play Function
The 'Plug and Play Function' of the machine automatically controls cylinder strokes which rotates the cleaning disk and removes the contaminants on the filter.

How it works
The Self-Cleaning Filter operates on the principle of differential pressure (ΔP), where material flows from a high-pressure zone to a low-pressure zone. Particles collect on the basket's outer periphery and are periodically removed by a disc cleaning arrangement, depositing the material in the bottom chamber for flushing out at regular intervals.

Specifications
Diameter - 457 mm
Area - 0.16 M squared
Layers - 1
Pressure - 10 bar (potential for more)
Viscosity - 1cp to 50000cp

Applications
Suitable for most process industries such as:
- Food processing
- Pharmaceutical
- Chemical
- Paint
- ETP industries
- Also used for liquid solid separation for variety of viscosity

Product Advantage
Optimum Filtration - The filters provide the finest level of screening, and the cleaning disk assures to keep the filters clean.
Lower Maintenance - With most of the processes being automated, it is considerably easier to maintain and clean this machine.
24/7 Continuous Processing - The most impressive property of our product is is the 24/7 capacity to continuously process the substance without taking a break.
