0.63 m.Sq S/S Sivtek self cleaning filter

Description:

The automatic
filter's ingenious, robust design eliminates the need for filter changes,
allowing continuous processing. Unlike conventional filters that require
cleaning after each batch, our automatic filters use pneumatic actuators and a
cleaning disk.

Designed to
efficiently strain watery applications as well as highly viscous substances.
Its automatic filters can eliminate suspended and unwanted particles present in
the substance.

Automatic filters
are considered superior to conventional self-cleaning strainers. Using Delta
P's principle, these filters regulate pressure differences to enable continuous
automatic filtering.

Features

Automatic
Pneumatic Actuators

While conventional
filters need periodic cleaning after each batch, our automatic filters use
pneumatic actuators and a cleaning disk.

Hygienic
Filtration

The self-cleaning
filter comes with a cleaning disk that accumulates the particles and residues
from the periphery of the basket.

High-Temperature
Filtration

Self Cleaning
Filters can withstand the filtration of liquids that are as hot as 250
DegreeC.

Plug and Play
Function

The 'Plug and Play
Function' of the machine automatically controls cylinder strokes which rotates
the cleaning disk and removes the contaminants on the filter.

How it works

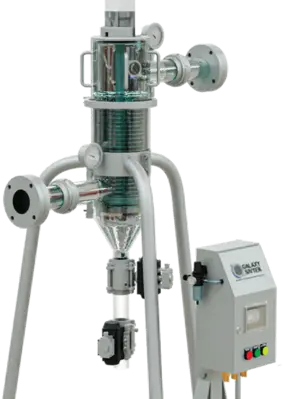

The Self-Cleaning
Filter operates on the principle of differential pressure (ΔP), where material
flows from a high-pressure zone to a low-pressure zone. Particles collect on
the basket's outer periphery and are periodically removed by a disc cleaning
arrangement, depositing the material in the bottom chamber for flushing out at
regular intervals.

Specifications

Diameter - 1016
mm

Area - 0.63 M
squared

Layers - 1

Pressure - 10 bar
(potential for more)

Viscosity - 1cp to
50000cp

Applications

Suitable for most
process industries such as:

- Food
processing

-
Pharmaceutical

- Chemical

- Paint

- ETP
industries

- Also used for
liquid solid separation for variety of viscosity

Product
Advantage

Optimum Filtration
- The filters provide the finest level of screening,
and the cleaning disk assures to keep the filters clean.

Lower Maintenance
- With most of the processes being automated, it is
considerably easier to maintain and clean this machine.

24/7 Continuous
Processing - The most impressive property of our product is is
the 24/7 capacity to continuously process the substance without taking a
break.
