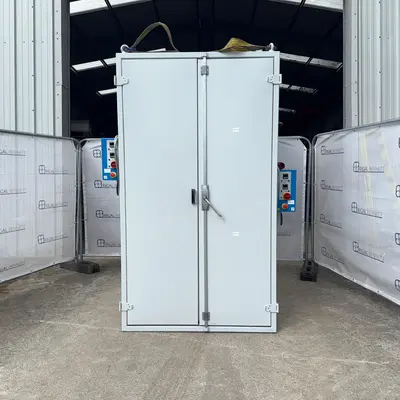

8,890L Electric Drum Heating Oven Capacity 16 x 200Lt Drums

16 Drum Oven – Double stacked 4 x 200L Drums8,890 Litres
Model: 16 Drum Oven
150°C Max temp
Construction:
• Mild steel box section frame, powder coated panels/body• Fans & heater in rear• Heavy duty floor• Horizontal swing doors• Door handle and locking mechanism• Rockwool insulation• Industrial door hinges• 2 Removable shelves each to hold 200kg• 2 x doors per unit – total of 4 x doors

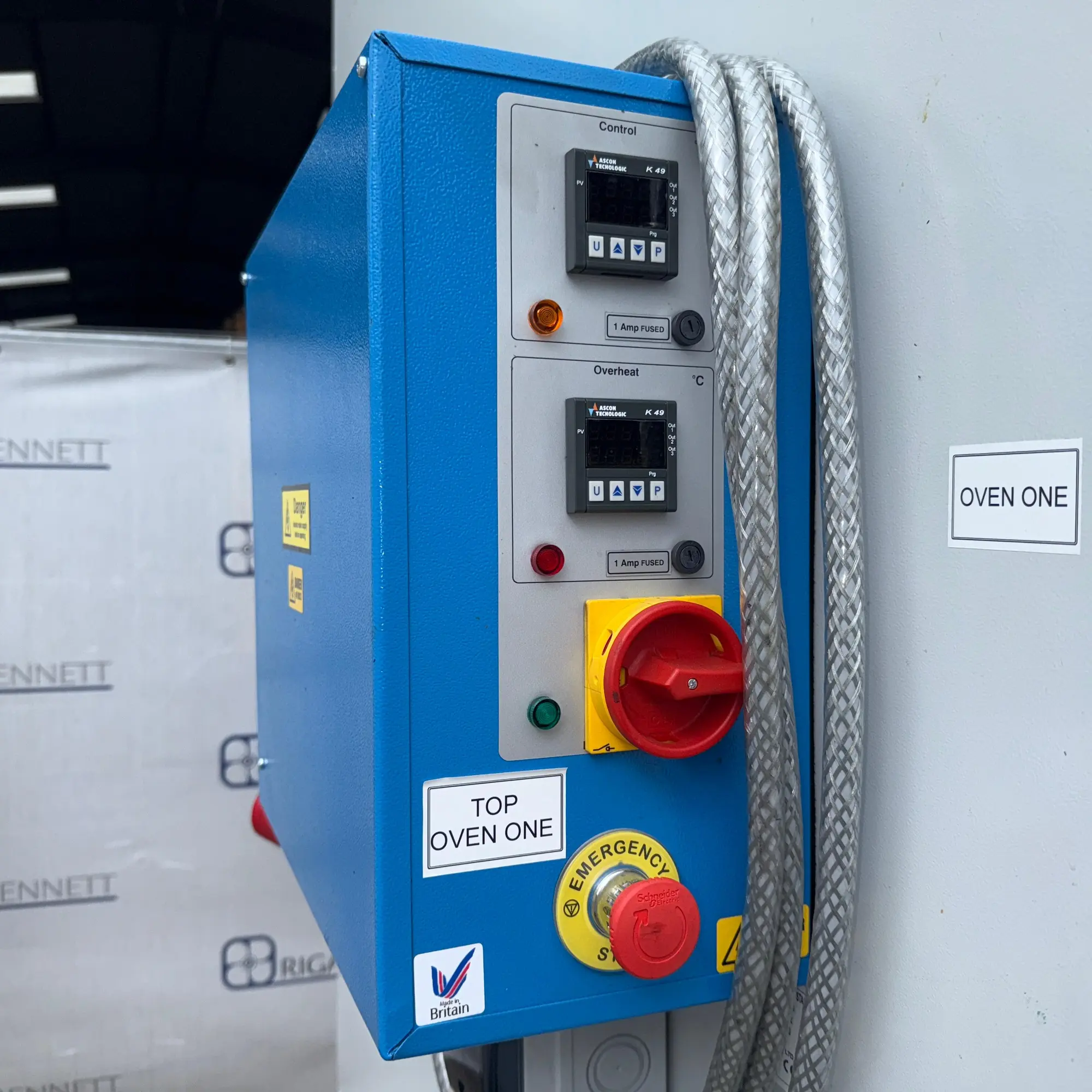

Control System:
• Digital Overheat Protection: K49 Standard Controller (1 program, 4 steps, 2 ramp dwells)• Digital Controller – K49 Standard Controller (1 program, 4 steps, 2 ramp dwells)
Dimensions (Approx.):
• Int Dimensions: H1200 x W2000 x D600 mm as per drawing from Peter – Each chamber• Overall Dimensions: H2625 X W2100 X D1600 - ADD 200mm for controls
Power Specifications:
• 415V• 3PHASE• 24Kw• 64AMP

x2 one for each chamber
