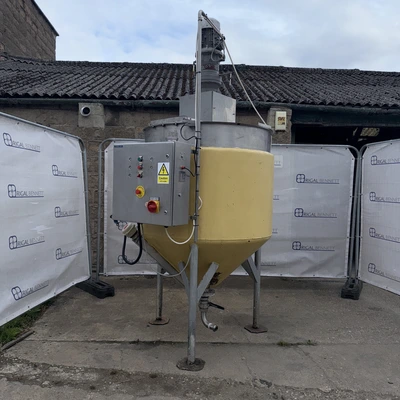

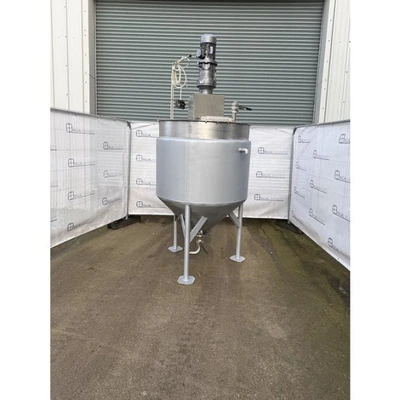

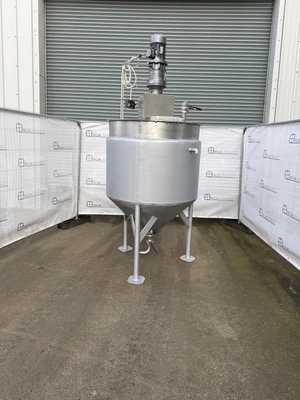

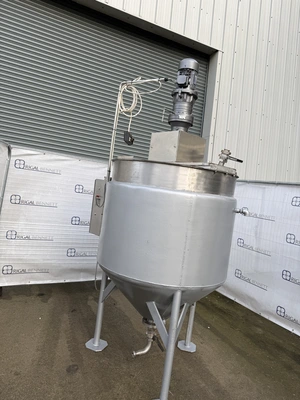

600L S/S JKTD vertical Anchor paddle mixer

Stainless steel chamber 910 mm dia x 910 mm deep with 500 mm deep cone to 100mm dia outlet mounted on 3 legs to give 400 mm ground clearance. with mild steel water jacket with aprox 9 kw heating element.  with  bridge mounted 2.2 kw about 40 Rpm Anchor type paddle stainless steel lid fixed one side.  hinged 1/3

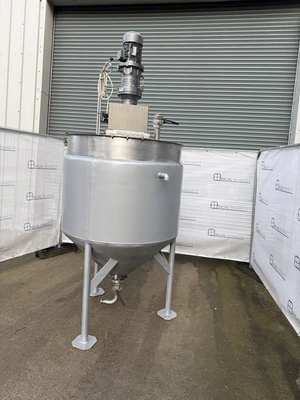

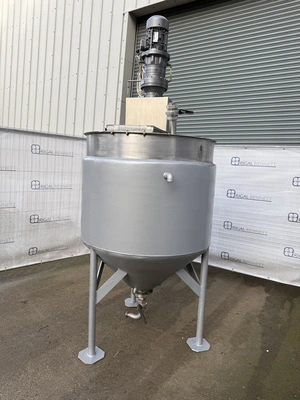

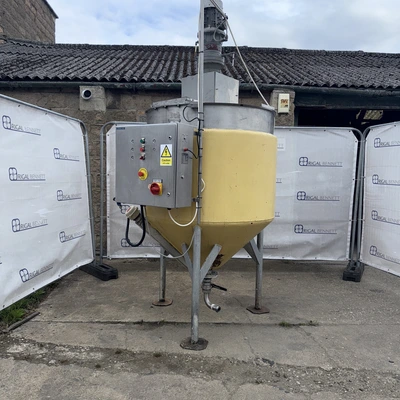

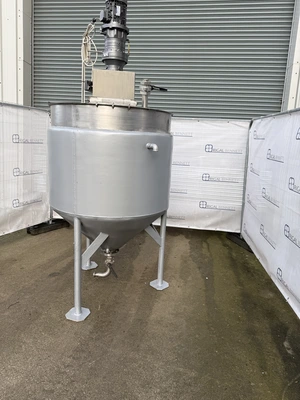

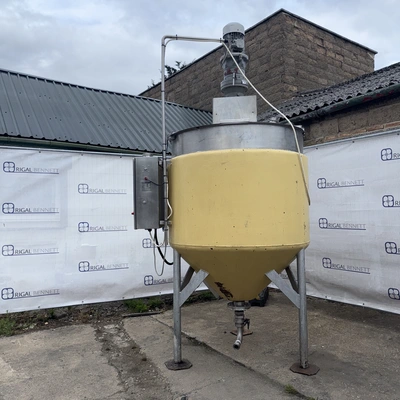

600 L Stainless Steel Jacketed Vertical Anchor Paddle Mixer

Chamber:

Stainless steel vessel

Ø 910 mm × 910 mm deep cylindrical section

500 mm deep conical bottom to 100 mm dia outlet

Mounted on 3 stainless steel legs with 400 mm ground clearance

Jacket:

Mild steel water jacket

Approx. 9 kW heating element

Mixer:

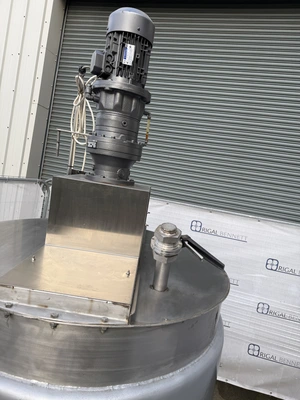

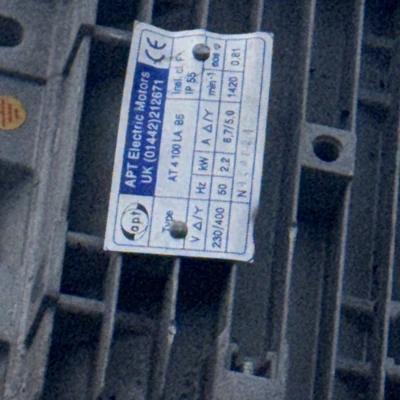

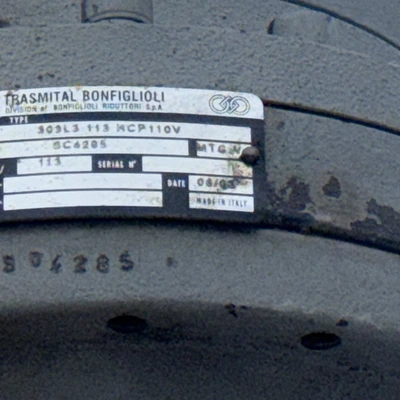

Bridge-mounted 2.2 kW motor

Approx. 40 rpm

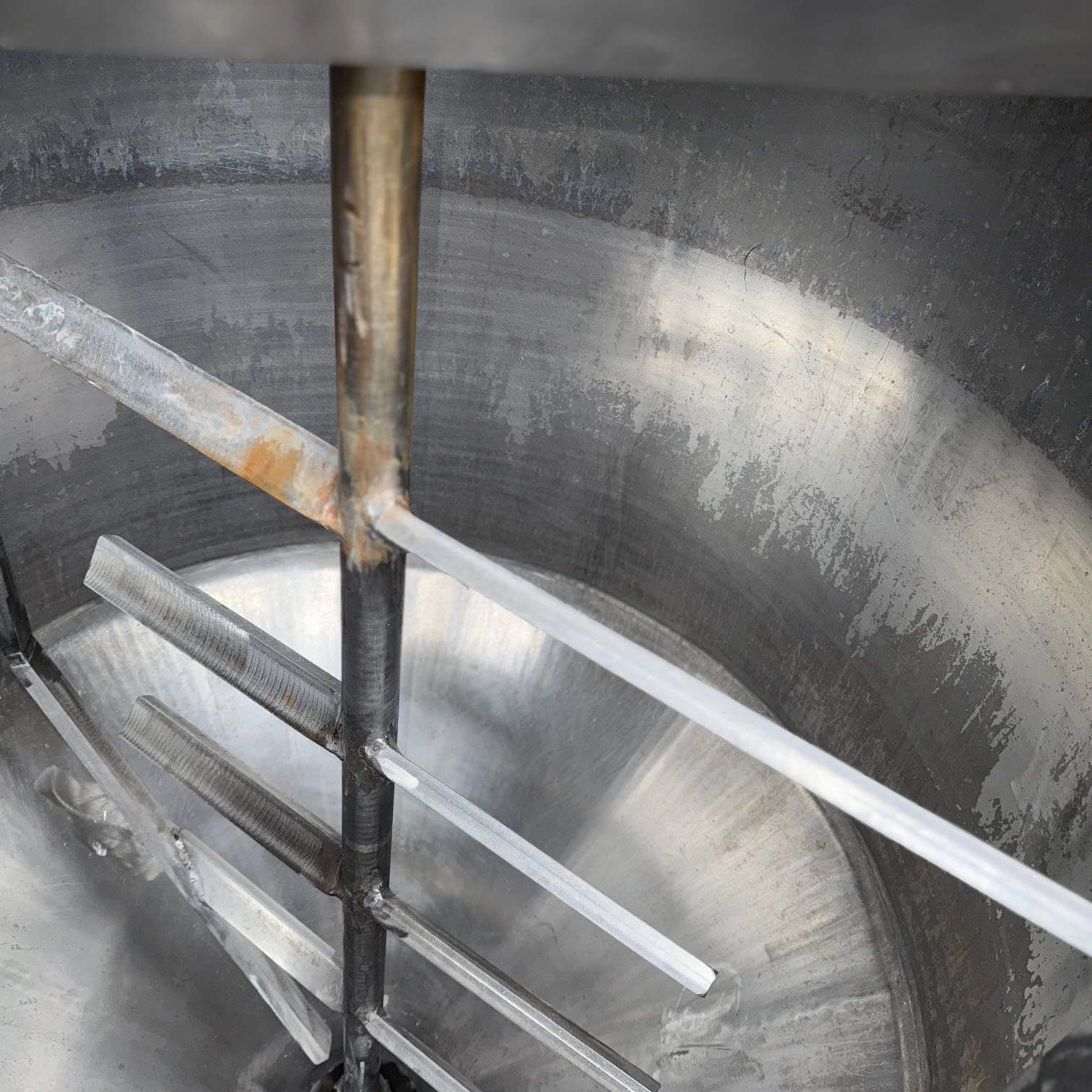

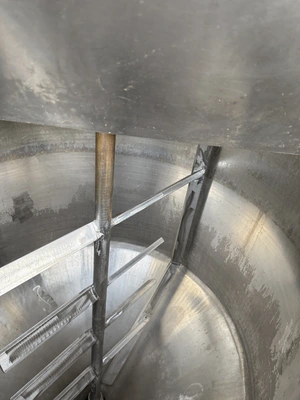

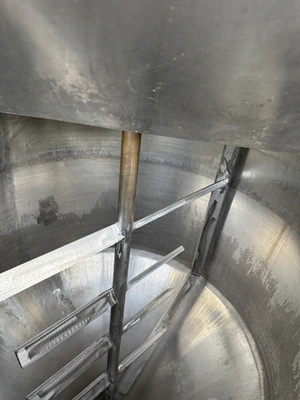

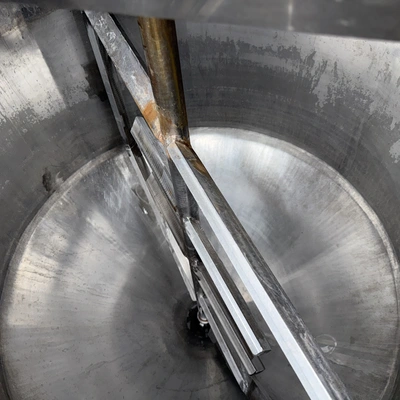

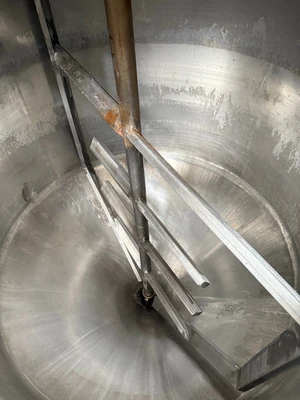

Anchor-type paddle agitator

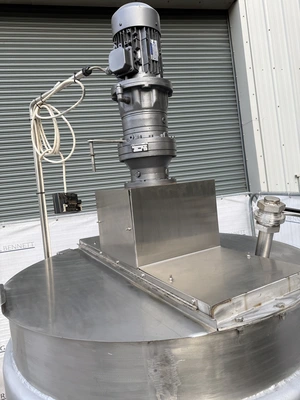

Lid:

Stainless steel construction

Fixed one side, hinged 1/3 for access
