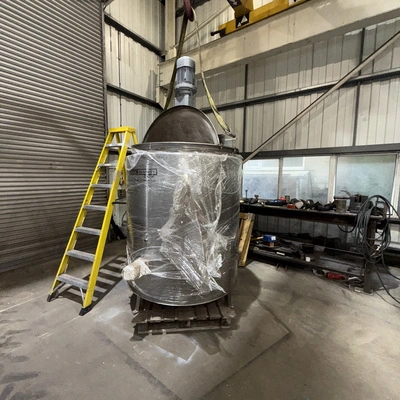

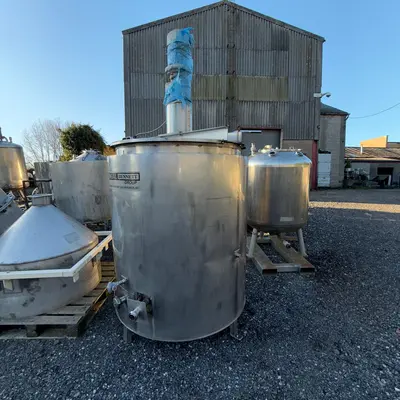

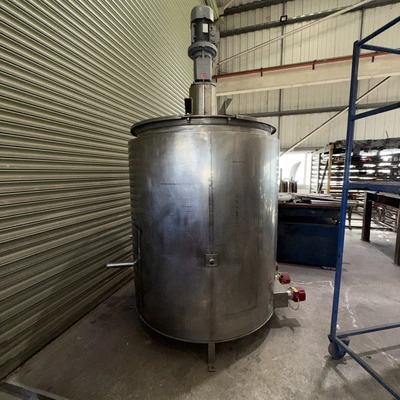

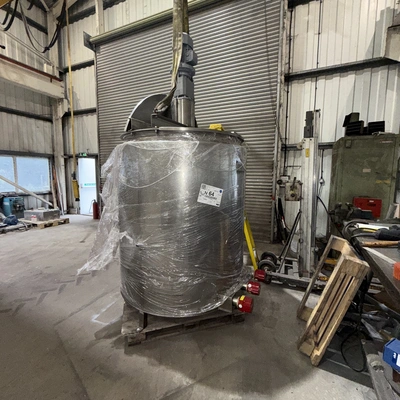

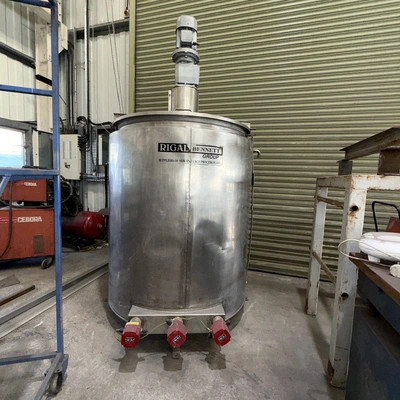

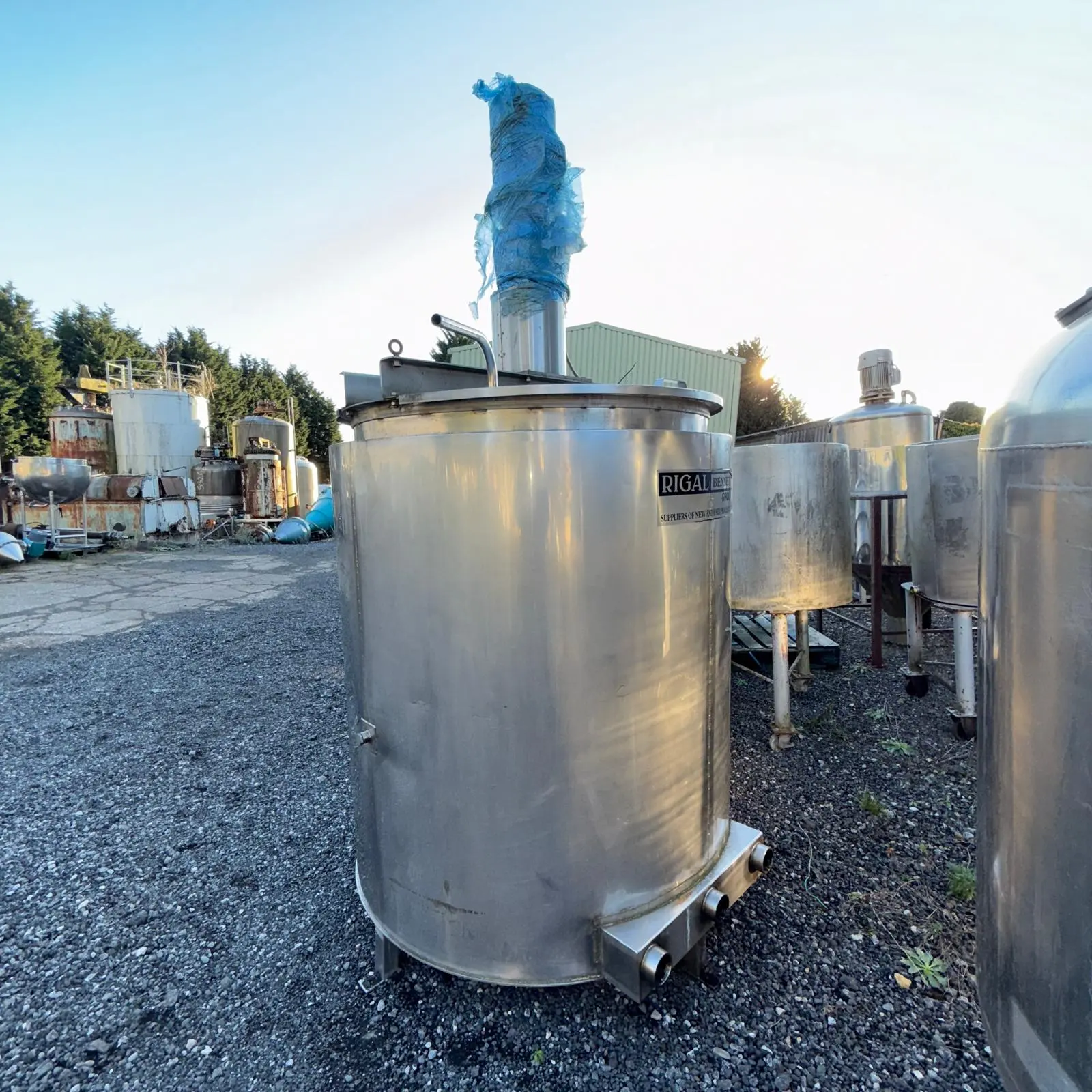

1,000L S/S Electrically Heated Jacketed Scraped Anchor Mixer

1,000L mixing tank is made from Stainless Steel 316 and is designed for industrial mixing applications. The tank measures 1,140mm in diameter and 1,190mm deep, with a cone bottom and 50mm outlet.

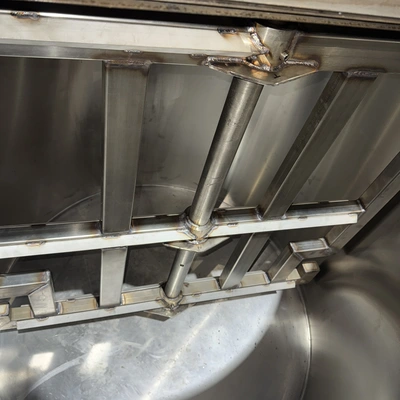

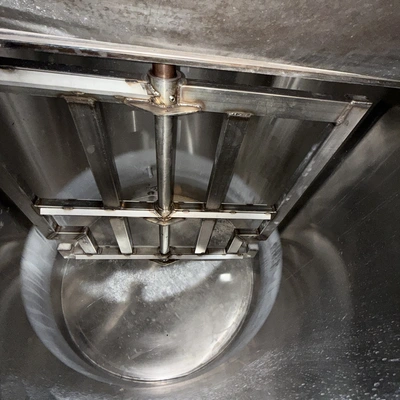

Equipped with a stainless steel Eco Oil Jacket, Rockwool insulation, and six 12 kW immersion heaters, it can heat up to 120°C. The tank features combination stirrers: a 4 kW, 30 rpm anchor scraped paddle with PTFE scrapers and a 7.5 kW, 2880 rpm top-entry shearhead mixer. The setup includes a vented stainless steel motor shroud and is mounted on legs with a 730mm ground clearance.
A dedicated control panel is included for precise operation. The overall size is 1,300mm x 1,500mm x 3,300mm tall, with a weight of 2,000 kg.
Technical Specifications:
Material:

Stainless Steel 316
Capacity:

1,100L
Dimensions:

1,140mm dia x 1,190mm depth
Heating:

6 x 12 kW Immersion Heaters (120°C)
Mixers:
4 kW, 30 rpm Anchor Paddle with PTFE Scrapers
7.5 kW, 2880 rpm Shearhead Mixer
Mounting:

730mm ground clearance
Overall Size:

1,300mm x 1,500mm x 3,300mm tall
Weight:

2,000 kg
