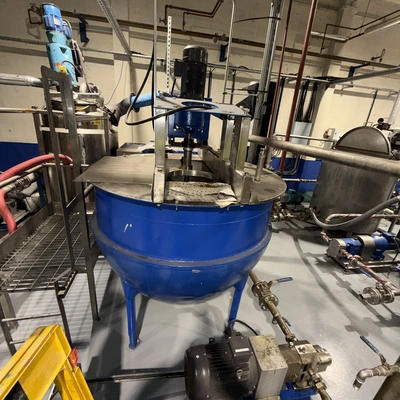

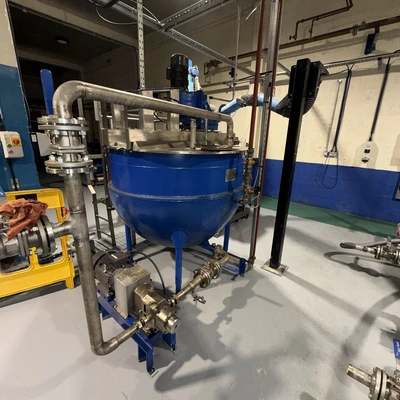

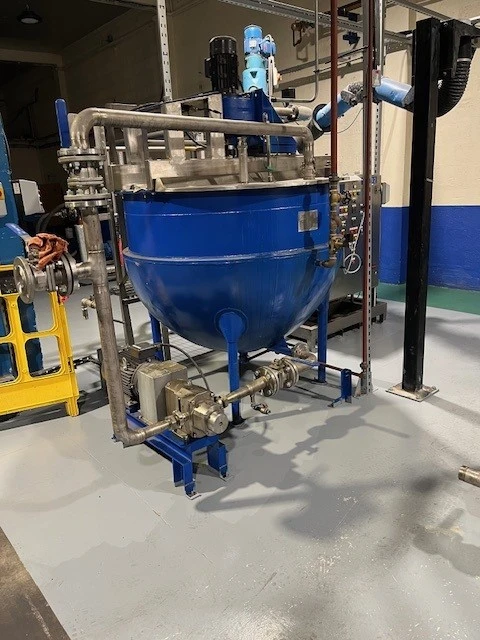

1,000 L S/S Chem Plant Hemispherical JKTD Scraped Surface Mixing Pan 5.5 kW

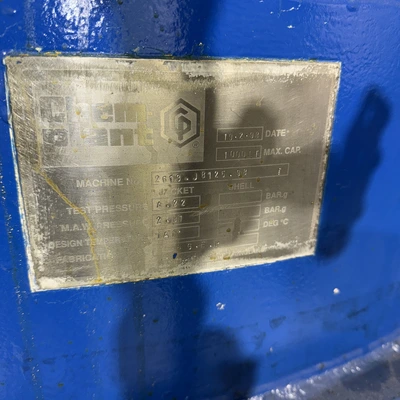

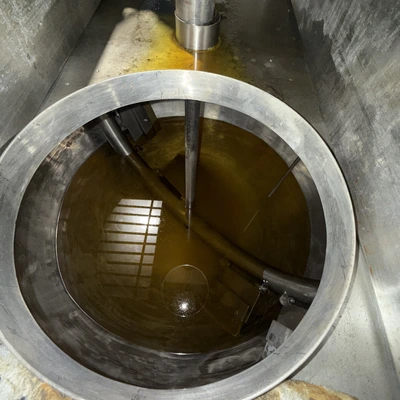

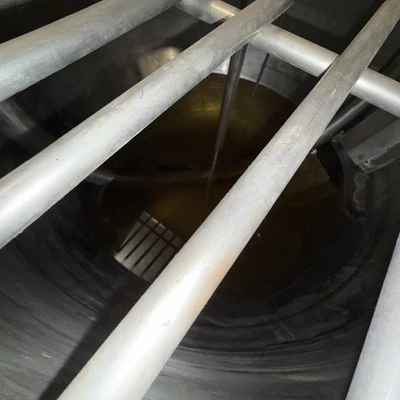

Stainless Steel Hemispherical Vessel with Mild Steel Jacket Test pressure 4.22 Bar.  Working pressure 2.11 Bar. Chamber about 1,200 mm dia x 1,200 mm deep to 38 mm dia outlet, mounted on 4 legs to give aprox 610 mm ground clearance.  With Stainless Steel bridge and lid to suit aprox 5.5 kW Stainless Steel Anchor Scrape Surface Stirrer with PTFE Hinged Scrapers.  [ with space to add a Rigal Bennett Shearhead Mixer]Hinged lid on both sides of bridge brim height 1,870 mm.  Overall height 2,600 mm.
