Rigal Bennett Continuous Inline Shearhead Dry Powder - Liquid Mixer 22 kw

New
Mono Block Continuous Inline Shearhead Dry Powder - Liquid Mixer Design
Foot Mounted with 22 kw 3 Ph 2,880 Rpm Drive.
Chamber with Stainless Steel 316 Garde contact parts fitted with General
Purpose Shearhead Screen complete with Mechanical Seal.  Liquid Inlet
63.5mm dia with 150L Cone Shape Powder Feed Hopper/Funnel With Ports To
Suit High & Low Level Sensors Fitted With 50mm dia Tri-Clover Bottom
Outlet   and Hand operated Ball Valve.   Fitted With 63.5 mm Dia
Tri-Clover Liquid Outlet. Mounted on Static Base.  Overall size 1,930 mm
long x 700mm deep x 1,890 mm tall [ extra specification can be offered
at extra cost]

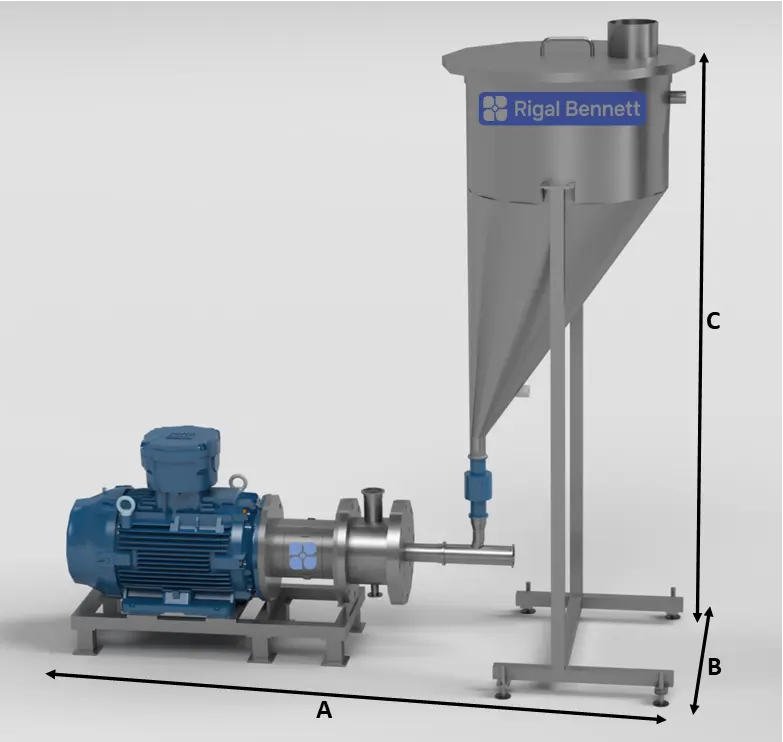

Technical Specifications:Mixer Type: Continuous Inline Shearhead Mixer (Mono-Block Design)Mounting: Foot mounted on a static baseMotor Power: 22 kwDrive: 3-phase, 2,880rpmChamber & Components:Material: Stainless Steel 316 (SS316) contact partsShearhead Screen: General-purpose, with a mechanical sealInlets & Outlets:Liquid Inlet: 63.5mm diameter Powder Feed: 150L cone-shaped hopper with ports for high and low-level sensorsLiquid Outlet: 63.5mm Tri-Clover connectionPowder Hopper Bottom Outlet: 50mm Tri-Clover with a hand-operated ball valveDimensions:Length (A): 1,930mmDepth (B): 700mmHeight (C): 1,890mmAdditional Features:Stable operation due to its static base mountingOptional additional specifications available at extra costCurrent Condition: Brand New - Manufactured in house by Rigal Bennett Group

Current Condition: Brand New - Manufactured in house by Rigal Bennett Group
