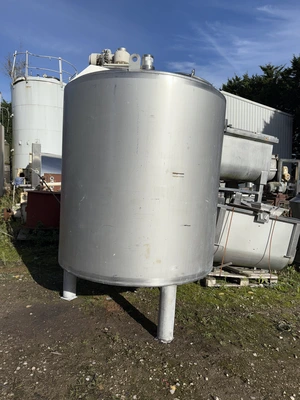

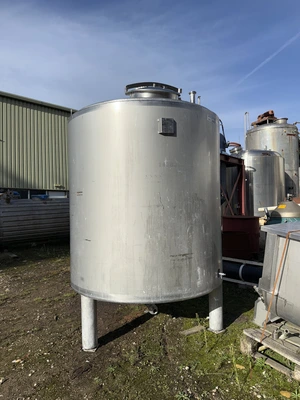

4,000L S/S Enclosed Mixing Tank 1.1 kw

4,000L S/S Enclosed Mixing Tank 1.1 kw
Stainless Steel
insulated tank with outer Stainless Steel Cladding 1,800 mm dia x 1,800
mm deep cone bottom 50 mm dia mounted on three legs to give 250 mm
ground clearance. Top entry with 450 mm dia manway 100 mm vent and 50 mm
dia inlet  1.1 kw about 120 Rpm Jongia paddle stirrer, Vessel made by
GTI Siersema Procestechnologie Year 2003 Overall size 2,000 mm dia x 3,100 mm tall.

4,000 Litre Stainless Steel Enclosed Mixing Tank – 1.1 kW Agitator

Capacity: 4,000 litres

Construction: Stainless steel insulated vessel with stainless steel external cladding

Dimensions: Approx. 1800 mm Ø × 1800 mm deep

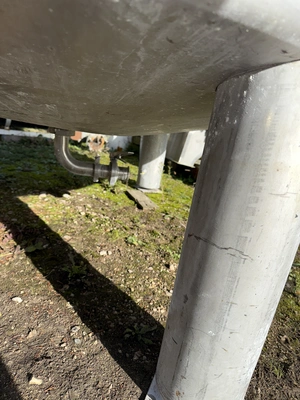

Base: Conical bottom with 50 mm outlet, mounted on 3 support legs providing 250 mm ground clearance

Access & Connections:

450 mm top manway

100 mm vent

50 mm inlet

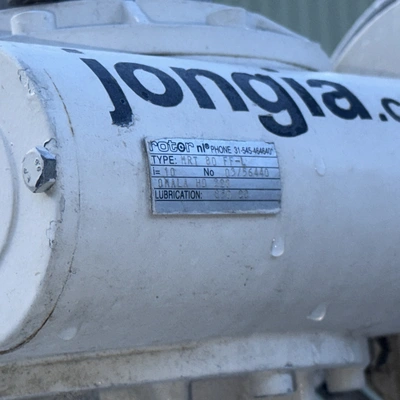

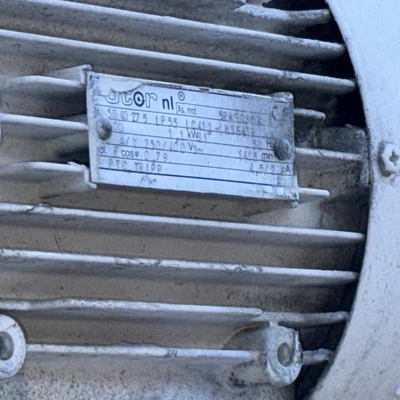

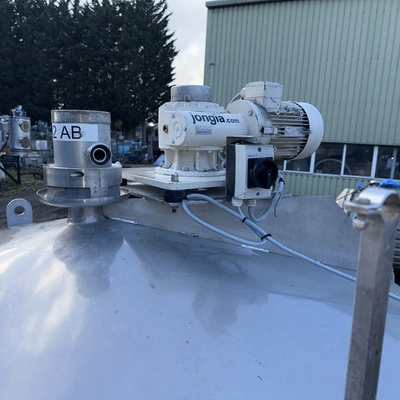

Agitator: 1.1 kW Jongia top-entry paddle mixer, approx. 120 rpm

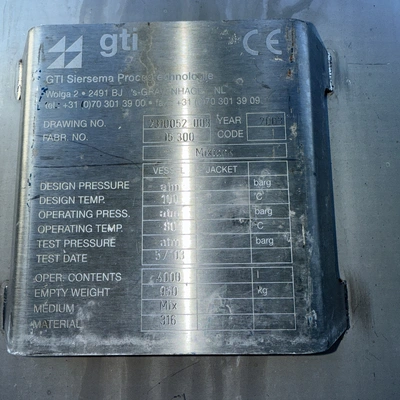

Manufacturer: GTI Siersema Procestechnologie

Year of Manufacture: 2003

Approx. Overall Dimensions: 2000 mm Ø × 3100 mm high
