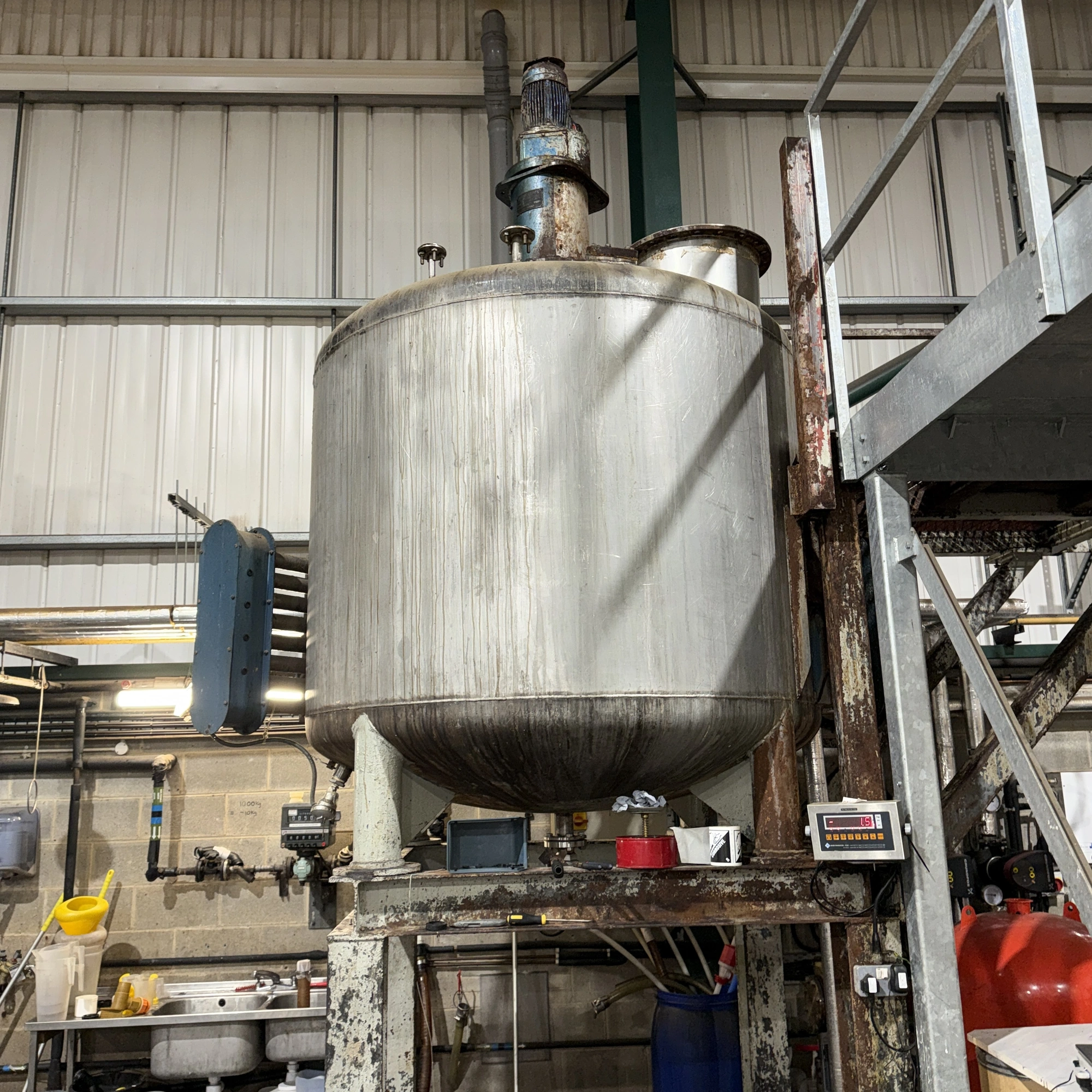

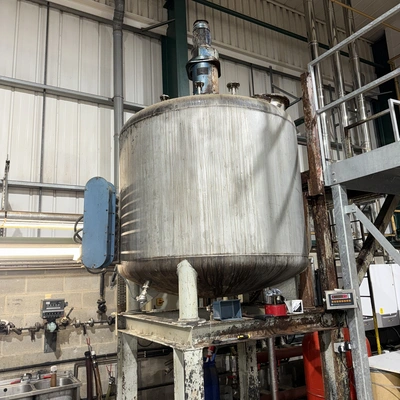

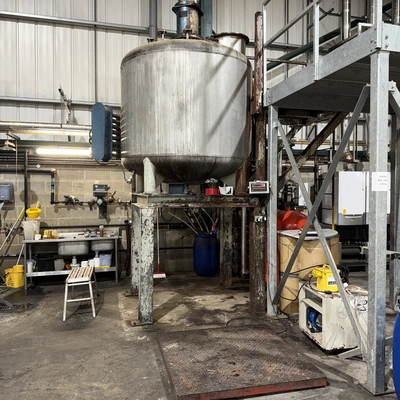

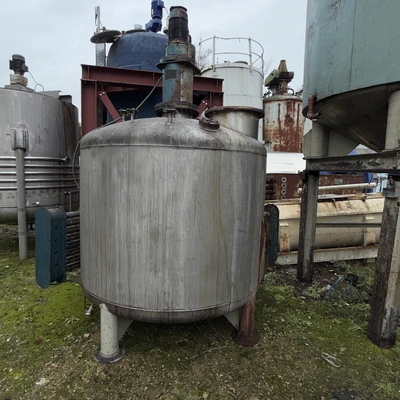

5200L S/s enc mix tank 4 kw
Overview
Description
Stainless steel tank 1,800mm dia x 2,000mm tall dish top and bottom 300 mm deep bottom to 75 mm dia outlet top with central stirrer mount flange, 400 mm dia x 350 mm dia , 100 dia sight glass, 75 mm dia , 50 mm dia , 25 mm dia and 2 off 19 mm dia inlets
with about 4 kw 80 rpm Turbine stirrer [ with internal coil needs removal or replacing]
Key Features
Capacity: 5,200 litres
Construction: Stainless steel tank
Dimensions: 1,800 mm diameter x 2,000 mm overall height
Top & Bottom: Dish-shaped top and 300 mm deep bottom
Discharge Outlet: 75 mm diameter central outlet
Central Stirrer Mount: Flanged top mounting for agitator
Inlets & Sight Glass:
400 mm dia x 350 mm dia main access
100 mm dia sight glass
Additional inlets: 75 mm, 50 mm, 25 mm, and 2 × 19 mm dia
Agitation System
Type: Turbine stirrer
Motor: Approx. 4 kW
Speed: 80 RPM
Note: Internal coil currently installed; requires removal or replacement for operation
