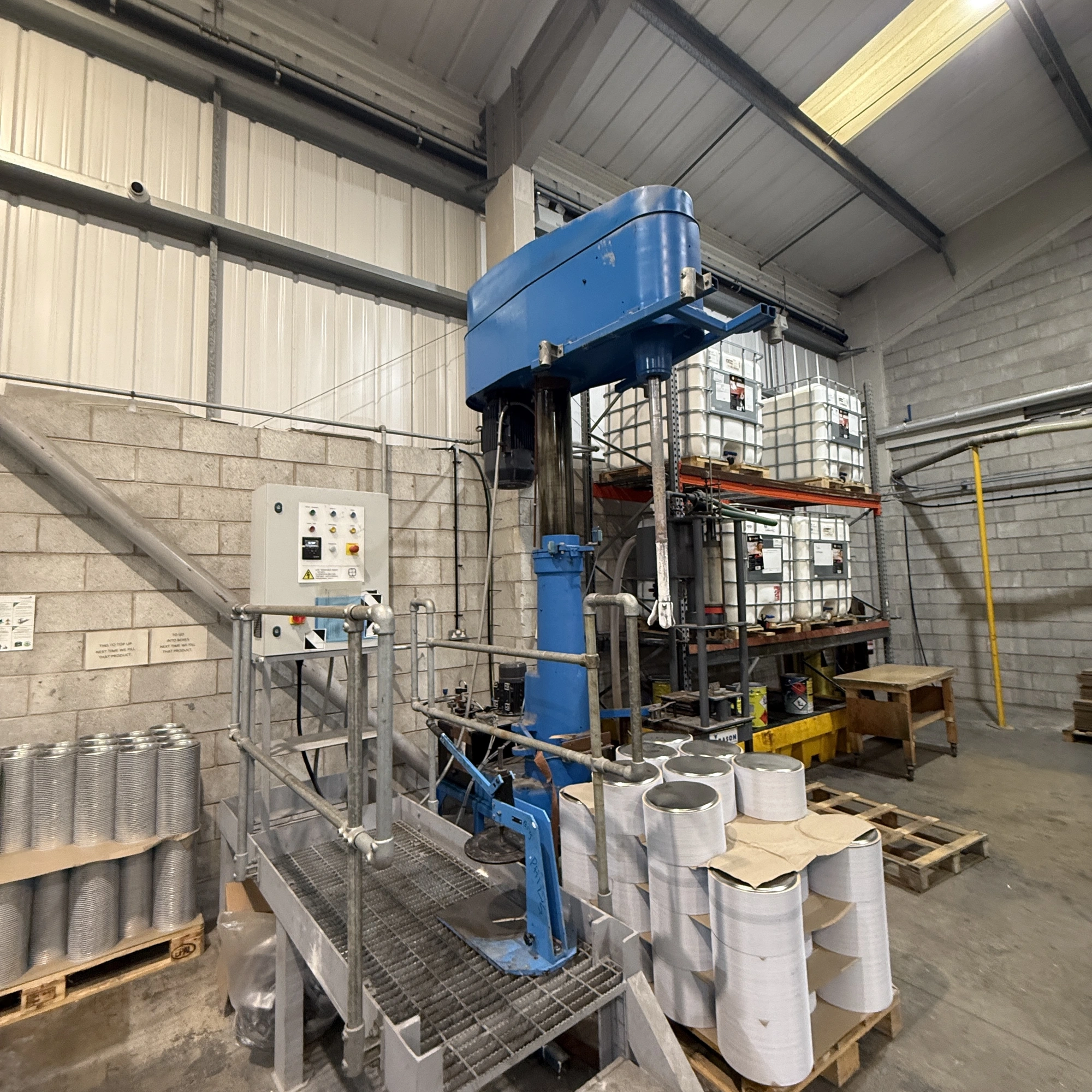

22 kw Westerlins Sawtooth Dissolver Mixer Raise lower Mixer DS 30

22 kw Westerlins Sawtooth Dissolver Mixer Raise lower Mixer DS 30
Mounted
on mild steel frame to suit with hydraulic raise - lower frame fitted
with  22 kw 1420 rpm belt drive with cone variable speed drive with
1,200 mm long shaft fitted with 400 mm dia Sawtooth Dissolver
blade. With Mild steel lid 1,370 mm dia,  Sith Stainless steel lid to
suit mix tanks Overall size 2,800 mm x 1,500 mm x 2,800 mm closed height

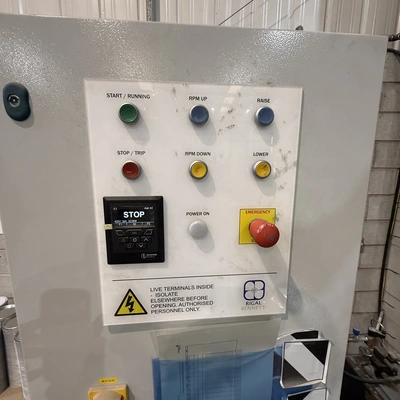

4,000 mm open height. with control panel to suit

Key Specifications:

Motor: 22 kW, 1420 rpm

Drive: Belt drive with cone variable speed

Shaft Length: 1,200 mm

Blade: 400 mm diameter sawtooth dissolver

Lift: Hydraulic raise/lower

Frame: Mild steel

Controls: Control panel included

Dimensions:

Footprint: 2,800 mm (L) x 1,500 mm (W)

Height (closed): 2,800 mm

Height (open): 4,000 mm
