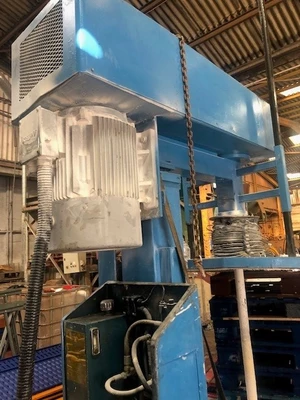

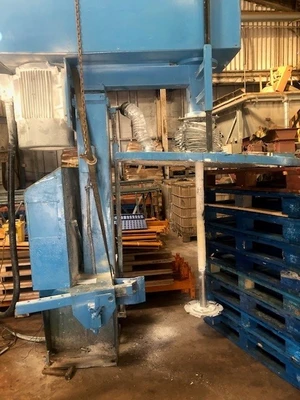

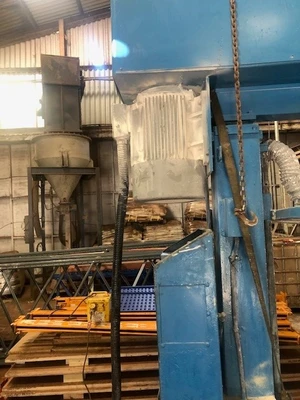

45 kw Sawtooth Raise Lower Mixer with 2,000L mix Tank.

Mounted
on mild steel frame to suit with hydraulic raise - lower frame fitted
with  45 kw 1420 rpm belt drive with 1,600 mm long shaft fitted with 380
mm dia Sawtooth Dissolver blade. Overall size about  2,800 mm x 1,500
mm x 2,850 mm closed height  open about 4.250 mm

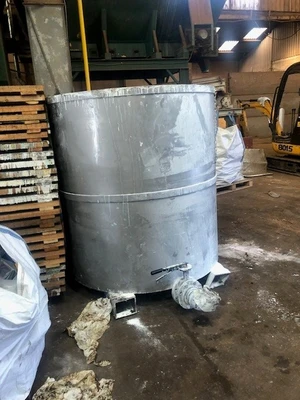

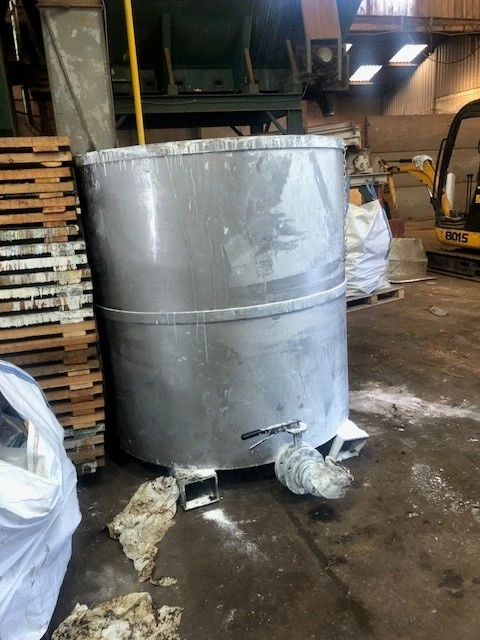

Stainless
Steel mix chamber about 1450mm dai x 1,500mm deep overall height about

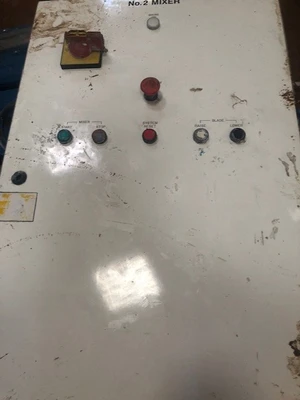

1,700 mm. [ currently has a fix speed Star delta control panel] for the
serviced Unit price will supply with inverter variable speed controls

Equipment Type: Sawtooth Raise Lower Mixer with a 2,000L mix tank.Components:Mild Steel Frame: Mounted with hydraulic raise-lower mechanism.Drive System: 45 kW, 1420 rpm belt drive with a 1,600 mm long shaft.Blade: 380 mm diameter Sawtooth Dissolver blade.Mix Tank: Stainless steel, approximately 1450 mm diameter x 1,500 mm deep.Dimensions:Closed Height: Approximately 2,850 mmOpen Height: Approximately 4,250 mmOverall Size: Approximately 2,800 mm x 1,500 mmControl System:Currently equipped with a fixed-speed Star Delta control panel.Optional upgrade to inverter variable speed controls for the serviced unit.Other Details:The unit is designed for mixing applications, likely in industrial or manufacturing settings.It provides flexibility in speed control with the option of upgrading to variable speed controls.The stainless steel mix chamber indicates suitability for handling various substances and ease of cleaning.ComponentSpecificationEquipment TypeSawtooth Raise Lower Mixer with 2,000L mix tankFrameMild steel frame mounted with hydraulic raise-lower mechanismDrive System45 kW, 1420 rpm belt drive with 1,600 mm long shaftBlade380 mm diameter Sawtooth Dissolver bladeMix TankStainless steel, approximately 1450 mm diameter x 1,500 mm deepDimensionsClosed Height: Approximately 2,850 mm
Open Height: Approximately 4,250 mm
Overall Size: Approximately 2,800 mm x 1,500 mmControl SystemCurrently equipped with a fixed-speed Star Delta control panel
Optional upgrade to inverter variable speed controls for the serviced unit
ComponentSpecificationEquipment TypeSawtooth Raise Lower Mixer with 2,000L mix tankFrameMild steel frame mounted with hydraulic raise-lower mechanismDrive System45 kW, 1420 rpm belt drive with 1,600 mm long shaftBlade380 mm diameter Sawtooth Dissolver bladeMix TankStainless steel, approximately 1450 mm diameter x 1,500 mm deepDimensionsClosed Height: Approximately 2,850 mm
Open Height: Approximately 4,250 mm
Overall Size: Approximately 2,800 mm x 1,500 mmControl SystemCurrently equipped with a fixed-speed Star Delta control panel
Optional upgrade to inverter variable speed controls for the serviced unit
