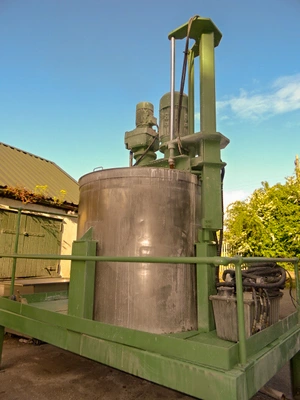

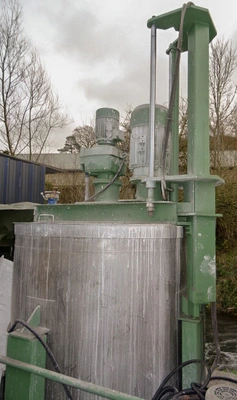

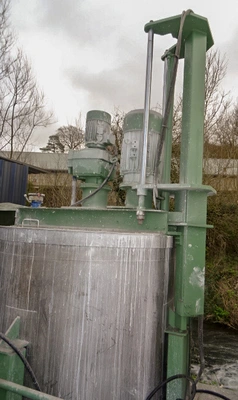

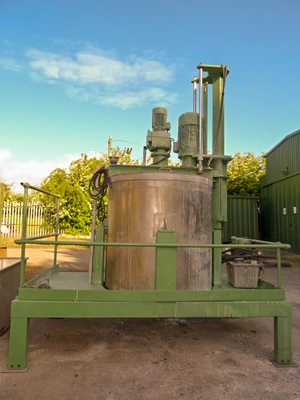

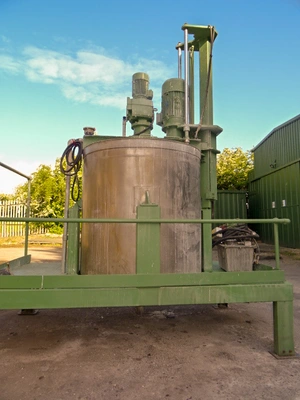

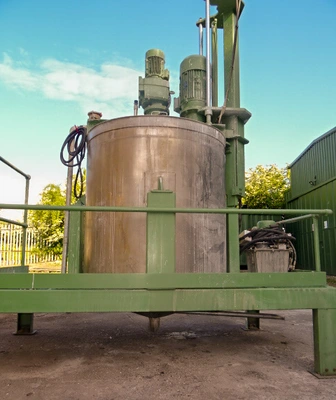

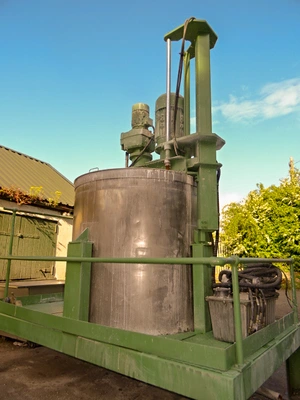

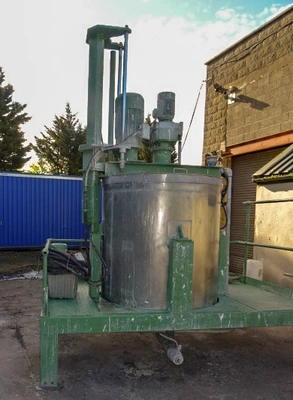

2000L S/S R&B Combination Mixer

Stainless steel
Rigal Bennett Combination Mixer
suitable for a wide range of mixing, dispersion, and homogenisation applications.

The 2,000 litre vessel measures approximately
1,320 mm diameter x 1,400 mm deep
and features a
225 mm deep conical bottom
tapering to a
100 mm diameter outlet
for efficient discharge.

Fitted with a

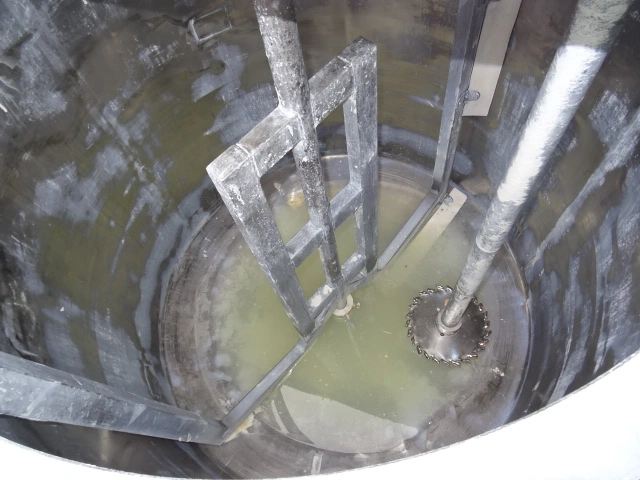

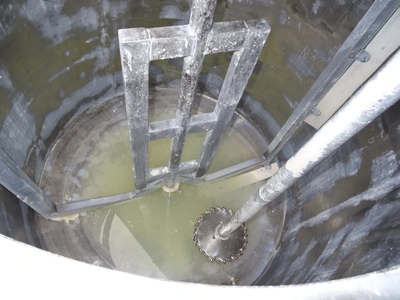

top-entry, bridge-mounted stainless steel anchor agitator
, driven by a
4 kW geared motor at approx. 30 rpm
. The anchor is equipped with
PTFE hinged wall scrapers
to ensure thorough mixing and improved heat transfer.

An
off-centre high-speed sawtooth disperser
, driven by a
7.5 kW motor at approx. 2,880 rpm
, is mounted on a
mild steel raise/lower frame
, allowing accurate positioning of the disperser within the vessel.

The mixer is supplied on a
mild steel working platform
measuring approximately
2,200 mm x 1,600 mm
, with a
working height of 630 mm
.
Overall height approx. 3,550 mm
.

Control panel available at extra cost.
Typical applications:
Starch, adhesives, coatings, polymers, resins, food and chemical products
