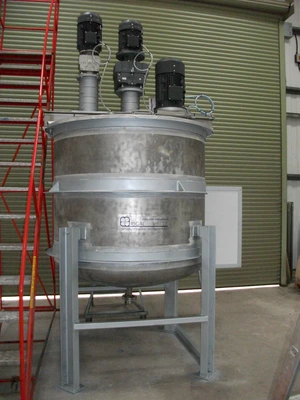

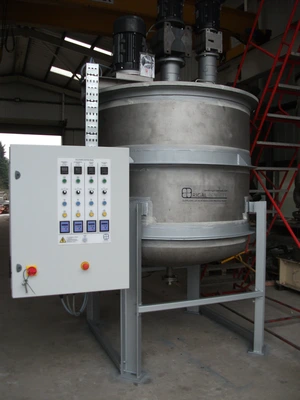

2,200L S/S Enclosed Combination mixer

Heavy-duty
2,200 litre stainless steel enclosed combination mixer
designed for demanding mixing, dispersion, and powder incorporation applications.

The vessel measures approximately
1,530 mm diameter x 1,200 mm deep
and features a
dished bottom
with a
50 mm diameter outlet
. The tank is fitted with
side mounting pads
and supplied on
mild steel legs with trolley wheels
, allowing repositioning within the plant.

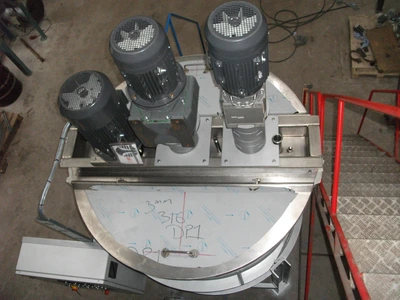

The mixer is supplied with a
stainless steel bridge
to suit multiple agitators, incorporating
hinged access lids on both sides
. A
safety grid on the operator side
allows access during production while the stirrer is in motion.

Agitation System

1) Anchor Scrape Agitator
Centre-mounted stainless steel anchor profile, driven by a
5.5 kW TEFC geared motor at approx. 30 rpm
. Fitted with
PTFE hinged wall scrapers
to ensure effective wall cleaning and heat transfer. Suitable for combination mixer applications up to
2,000 L
.

2) High-Shear Mixer
Off-centre, top-entry
Rigal Bennett EH753-63 Shearhead Mixer
, supplied new.

3-phase, 2,880 rpm drive

130 mm diameter general-purpose shearhead

Stainless steel product-contact parts

Flange-mounted to bridge with
lift-out hook for servicing
Designed to provide high-shear agitation for rapid dispersion and blending.

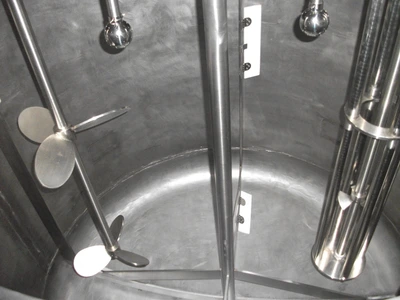

3) Incorporator / Marine Paddle Mixer
Off-centre
Rigal Bennett GP553-63 incorporator mixer
, driven by a
5.5 kW motor
, operating at
180–500 rpm
.
Fitted with a
stainless steel shaft
and
three bush-mounted 450 mm diameter marine impellers
, providing strong axial flow for powder wet-out and bulk mixing.

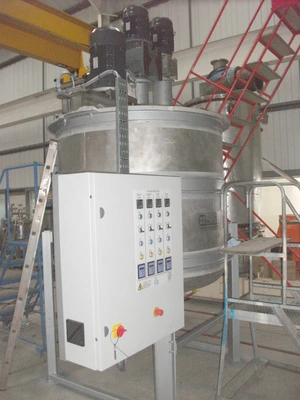

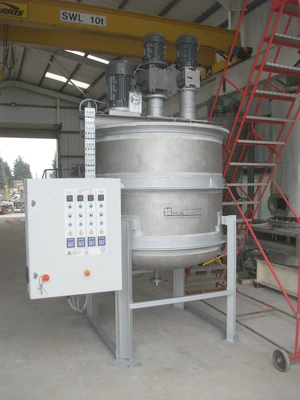

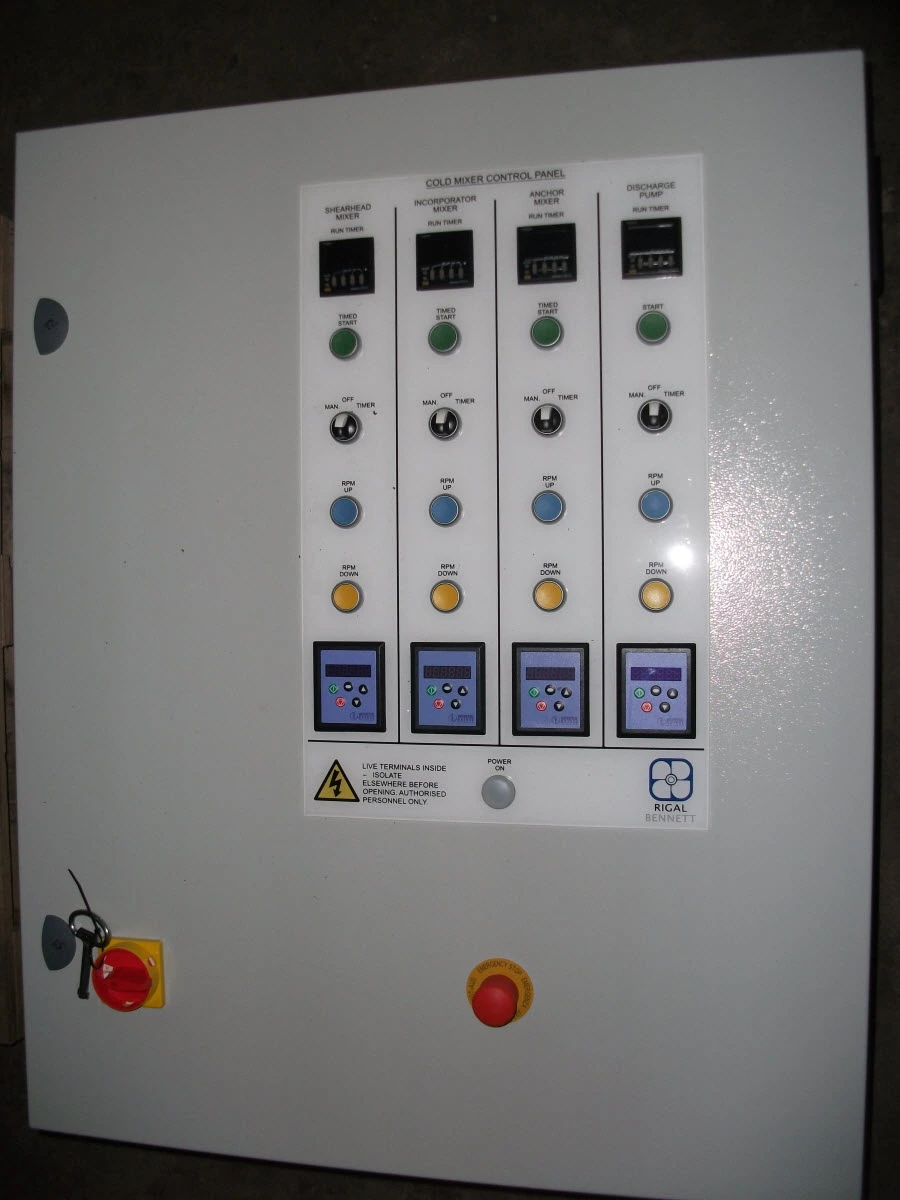

Controls & Safety

Supplied with a
tank-mounted, powder-coated control panel
featuring:

Individual
start / stop controls
for all three mixers

Run indication lights

Emergency stop

Lid safety interlocks

Additional control features:

Shearhead mixer
fitted with
timer control

Anchor mixer
fitted with
variable speed inverter
, digital display and
timer control

Incorporator mixer
fitted with
variable speed inverter
, digital display and
timer control

Typical Applications

Starch processing, adhesives, polymers, coatings, resins, food and chemical products.
