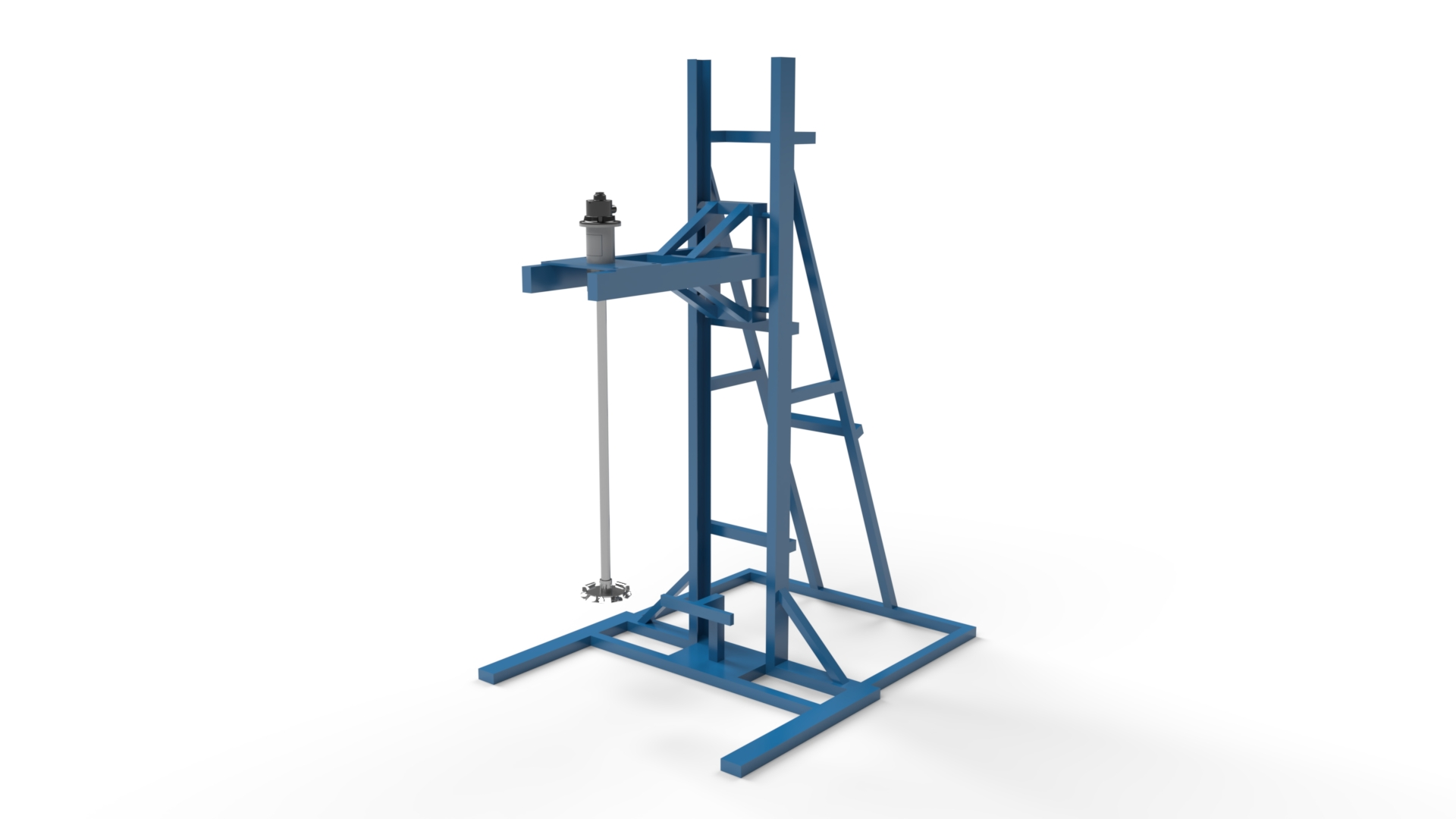

R&B Turbine/Sawtooth Air Operated Mixer 3.7Kw

New Dispersion Mixer Intended For Mobile Containers With A Dia Up To 600mm. With Max. Lift Of 1200mm. Air operated Lift Frame To Give A Lift Time Of Approx. 45 Seconds. Remote Control Panel Mounted Near Or On The Column With Shaft Speed Indication Stop/Start. Increase And Decrease Speed Control To Suit With Raise/Lower Hydraulic Control. Dispersion Mixer Supplied With Pneumatic Air Motor  with Speed Controller Speed Range To Give A Range Of 300-6,000 Rpm And Fitted With 100mm Dia Disc Mixing Head. Mounted With A Floating Stainless Steel Lid To Suit With Inspection/Loading Hatch Stainless Steel Shaft Is Fitted With Sleeve Protection. To Allow Head To Raise/ Lower During Mix. Supplied With Fixing Device, Adjustable Safety Switches Placed On Frame So That Machine Will Stop When Turbine Head And Lid Is Raised Above The Upper Edge Of The Container And Second Safety Switch Built Into The Container Fixing Device. Motor Controller Stop/ Start And Control Panel To Be Mounted Outside The Working Area Or Outside Where Applicable. With Power Pack.

R&B Turbine/Sawtooth Air Operated Mixer – 3.7 kW
Overview:
A newly developed high-performance dispersion mixer, specifically designed for use with mobile containers up to 600mm in diameter. Ideal for applications requiring precise mixing, safety, and ease of operation.
Key Features:

Mixer Type: Turbine/Sawtooth dispersion mixer powered by a 3.7 kW pneumatic air motor.

Container Compatibility: Suitable for mobile containers with diameters up to 600mm.

Lift Mechanism: Air-operated vertical lift with a maximum stroke of 1200mm and lift time of approximately 45 seconds.

Speed Control: Variable speed range from 300 to 6,000 RPM, adjusted via a remote control panel.

Mixing Head: Fitted with a 100mm diameter disc-type mixing head.

Shaft Design: Stainless steel shaft with protective sleeve to allow smooth vertical movement during operation.

Floating Lid: Stainless steel floating lid with integrated inspection/loading hatch.

Control Panel:

Mounted near or on the mixer column.

Includes shaft speed indication, start/stop controls, speed increase/decrease, and raise/lower hydraulic control.

Main control panel to be mounted outside the working area where applicable.

Safety Features:

Adjustable safety switches positioned on the frame.

Automatic shut-off if the mixing head or lid is raised above the container edge.

Additional safety interlock integrated into the container fixing device.

Fixing Mechanism: Supplied with a container fixing device for secure positioning during operation.
