4,500L S/S JKTD Rigal Bennett Combination Mixer
Overview
Description

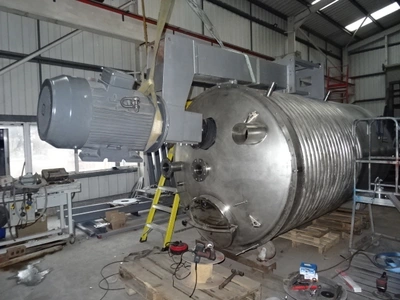

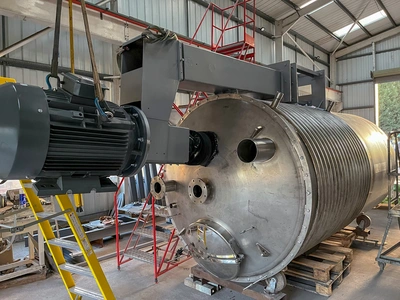

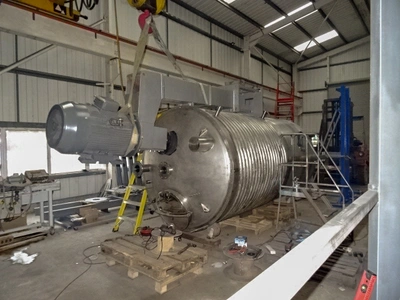

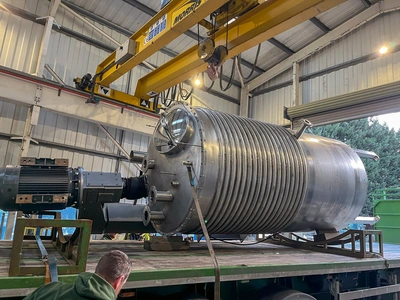

Stainless Steel Fabricated 304 grade Chamber 1,730 mm x 1,800 mm Deep with inverted cone base to 150 mm dia outlet with skirt mount to give 2,300 mm ground clearance. With bottom entry 11 kw 20 Rpm 4 bladed Stainless Steel Anchor Paddle with PTFE Hinged Scrapers. Dish top with 610 mm dia Manway 150 mm dia Vent connection 4 off product inlet connections to suit with side mounted 55 kw 960 Rpm Sawtooth Dispersion Mixer with 500 mm dia sawtooth dispersion disc. Mounted on Mild Steel hydraulic rasie lower column. supplied with mild steel powder coated Controller with Isolator E Stop, safety circuit to suit, each stirrer with timer & inverter control with digital display on the panel for each stirrer drive, Start - Stop for hydraulic power pack ,with raise - lower sawtooth stirrer control, plus product temperature digital indication on panel door. Start - Stop [ other options available at extra cost]
A high-performance combination mixer designed for fast, efficient blending, dispersion, and product movement. Fully equipped with anchor scraping technology and a powerful high-shear sawtooth mixer.

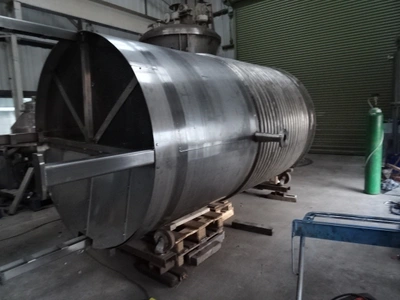

Vessel & Construction
Capacity: 4,500 litres
Material: 304 grade stainless steel

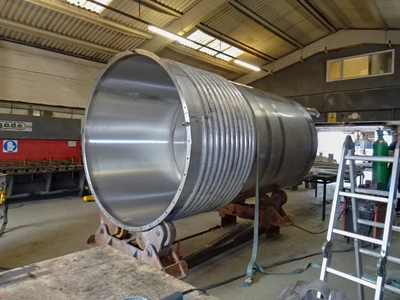

Chamber Dimensions: 1,730 mm diameter × 1,800 mm deep

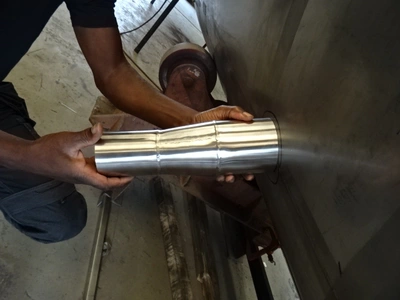

Base: Inverted cone to 150 mm dia outlet
Mounting: Skirt mount giving 2,300 mm ground clearance

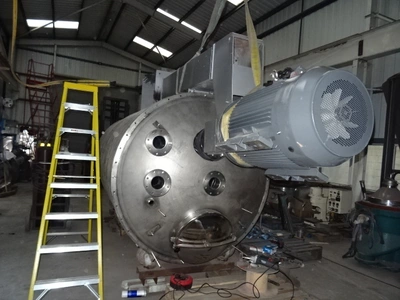

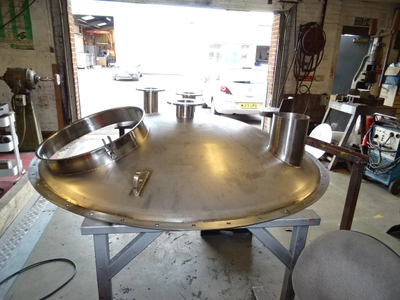

Top: Dished top with 610 mm dia manway and 150 mm dia vent
Inlets: 4 × product inlet connections

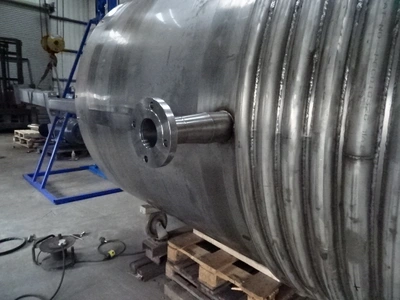

Jacket: Stainless steel jacketed chamber (JKTD)Agitation & Mixing

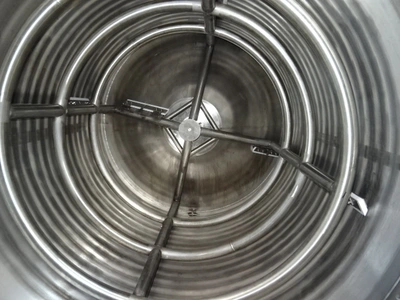

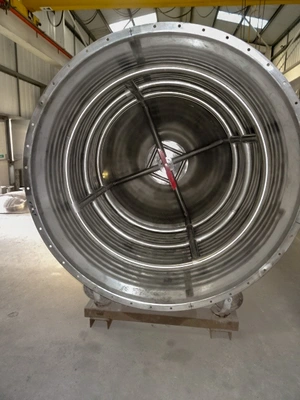

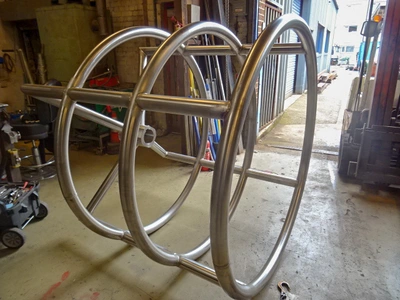

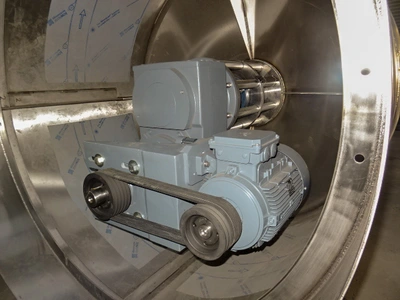

Bottom Entry Anchor Paddle:
11 kW, 20 rpm drive
4-bladed stainless steel anchor

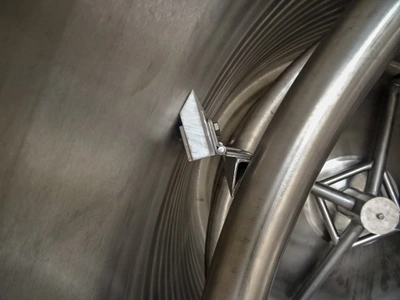

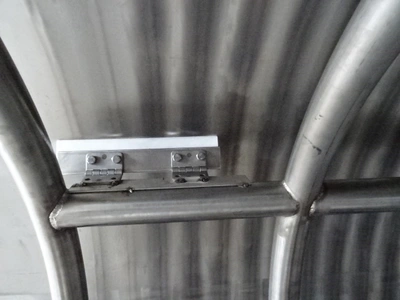

PTFE hinged scrapers for full wall and base sweeping

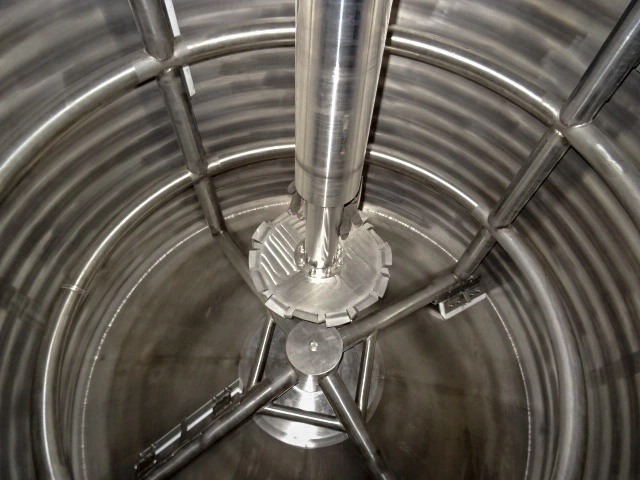

High-Shear Dispersion Mixer:
Side-mounted 55 kW, 960 rpm sawtooth dispersion mixer
Fitted with 500 mm diameter sawtooth disc

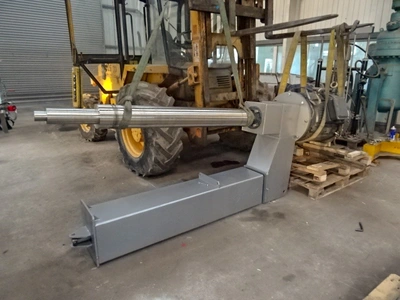

Mounted on a mild steel hydraulic raise/lower column
Control Panel
Mild steel, powder-coated controller
Fitted with isolator and emergency stop
Safety circuit to customer requirements
Individual timers and inverters for each stirrer, with digital speed display
Start/stop control for hydraulic power pack
Raise–lower controls for sawtooth mixer
Digital product temperature indication on panel door
Additional control options available at extra cost
