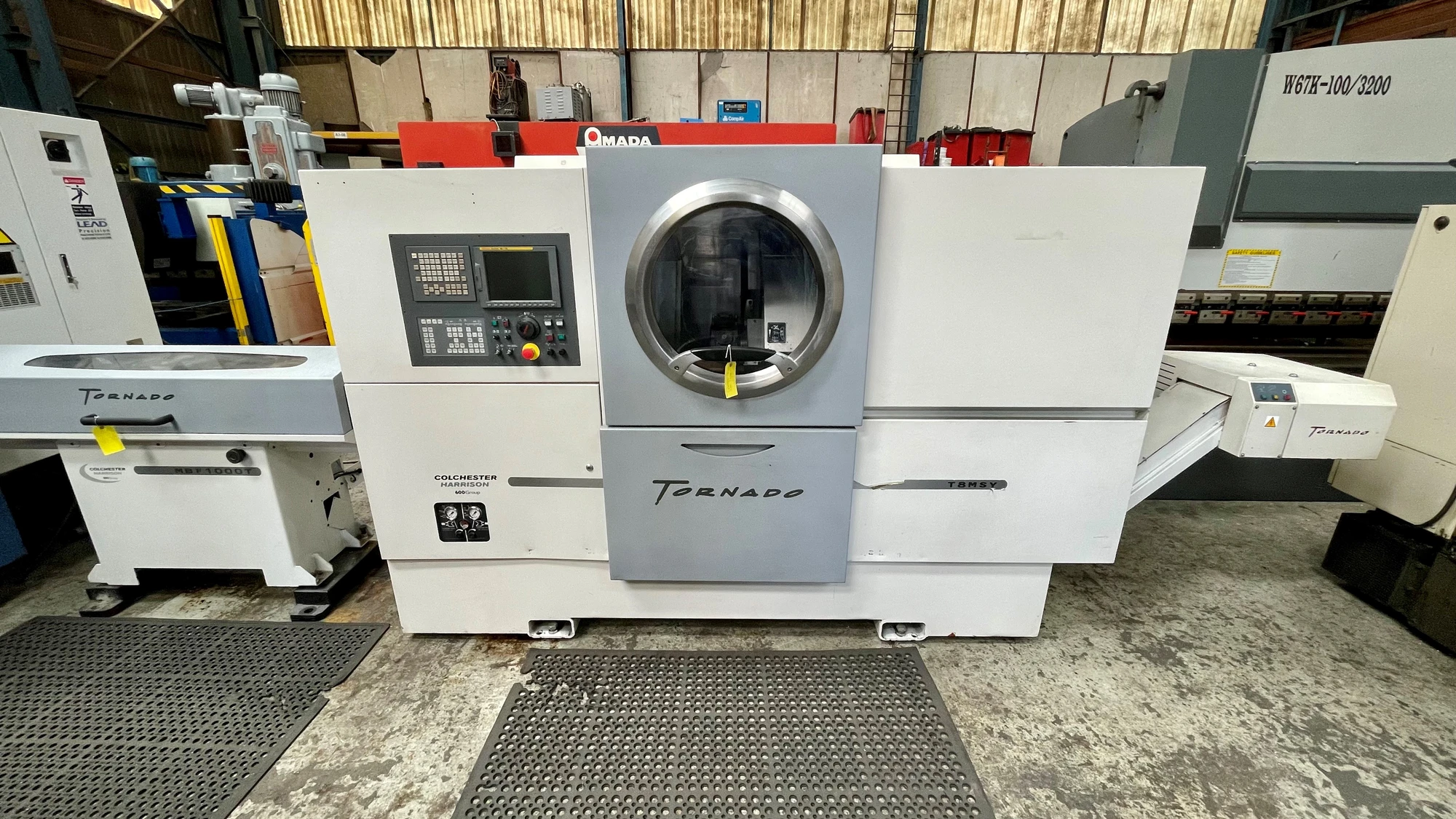

USED 2007 COLCHESTER, MADE IN ENGLAND T8-SMY

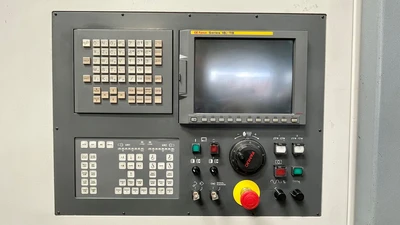

CONTROL: FANUC 18iTB
CHUCK SIZE: 210.0 mm
SWING OVER BED: 510.0 mm
MAX TURNING DIAMETER: 260.0 mm
MAX TURNING LENGTH: 490.0 mm
BAR CAPACITY: 65.0 mm
MAIN SPINDLE RANGE: 0 - 5000 rpm
SUB SPINDLE RANGE: 0 - 6000 rpm
SPINDLE NOSE: A2-8

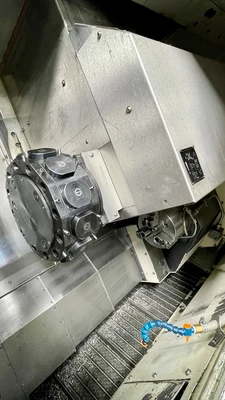

TURRET: 12 STATIONS
TOOL SIZE: VDI 30
TAILSTOCK: SUB SPINDLE
C-AXIS TRAVERSE: 0.001 Degree
Y-AXIS TRAVERSE: +/- 40.0 mm
X-AXIS TRAVERSE: 235.0 mm
Z-AXIS TRAVERSE: 540.0 mm
PLUS: C-AXIS Y-AXIS SUB SPINDLE MAGAZINE BAR FEED SWARF CONVEYOR PARTS CATCHER
