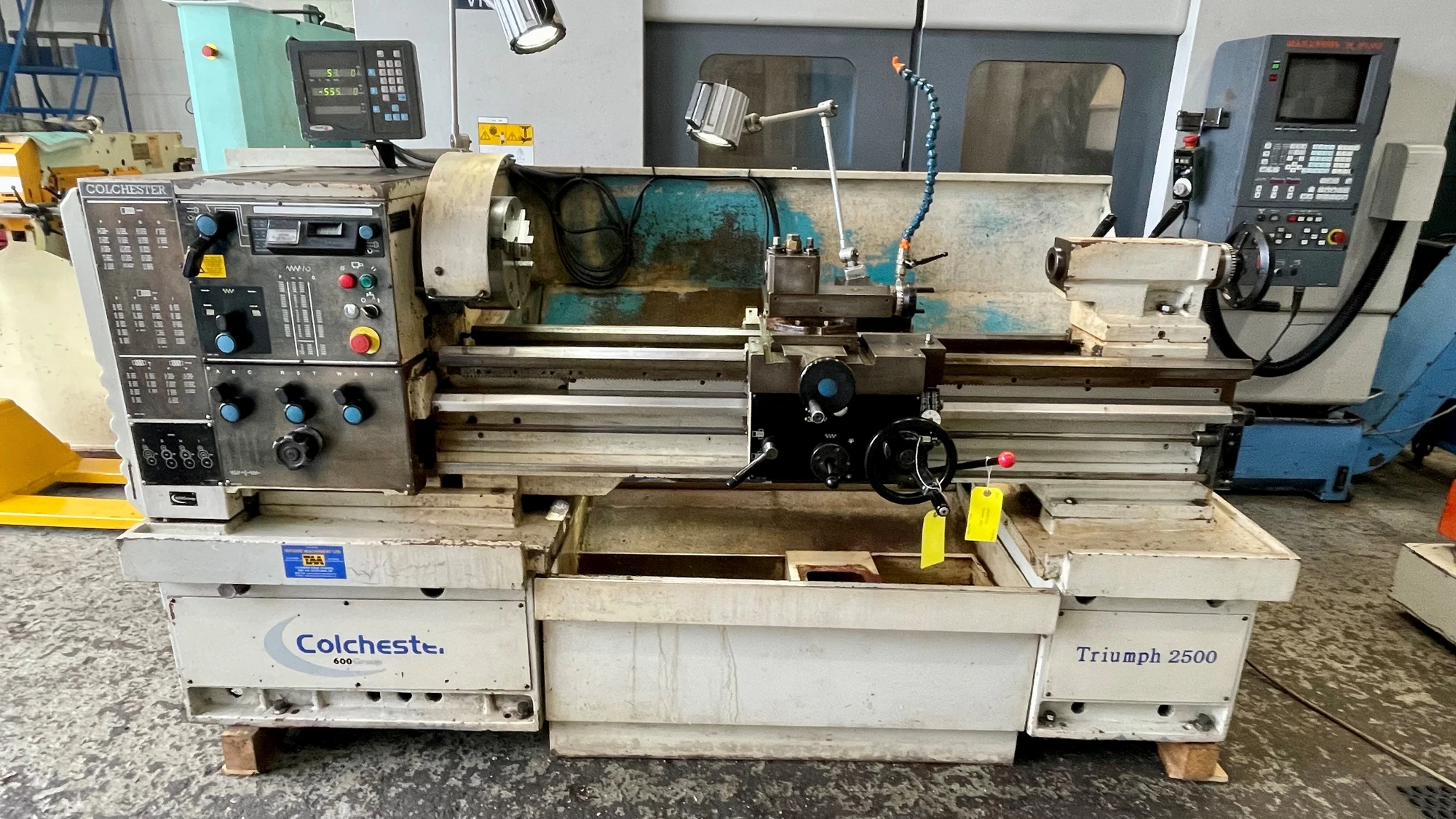

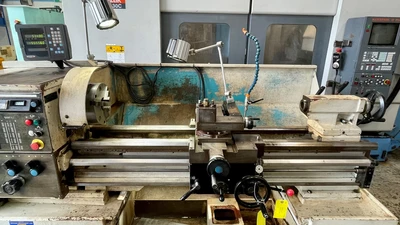

USED 2003 COLCHESTER, MADE IN ENGLAND TRIUMPH VS 2500

SWING OVER BED: 400.0 mm
SWING IN THE GAP: 585.0 mm
SWING OVER CROSS SLIDE: 246.0 mm
BETWEEN CENTRES: 1250.0 mm
TRAVEL OF CROSS SLIDE: 250.0 mm
TRAVEL OF TOPSLIDE: 130.0 mm
WIDTH IN FRONT OF FACEPLATE: 165.0 mm
SPINDLE BORE: 75.0 mm
SPINDLE NOSE: D1-6
SPINDLE SPEED: 14-275, 40-795, 125-2500 RPM
SPINDLE MOTOR: 7.5 Kw 10HP
TAILSTOCK TAPER: 5 MT
MACHINE WEIGHT: 1800 KGS

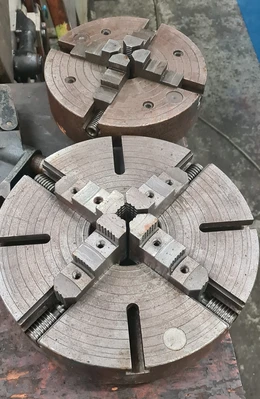

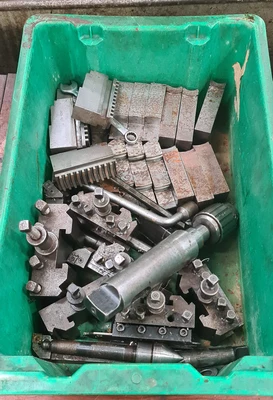

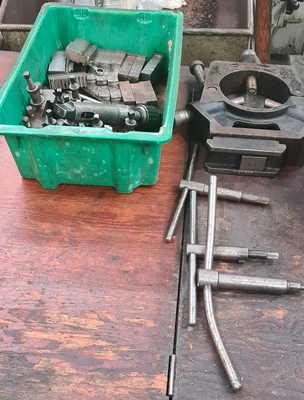

PLUS: VARIABLE SPINDLE SPEED 2 AXIS FAGOR DIGITAL READOUT GAP BED 3 JAW CHUCK 4 JAW CHUCK FACE PLATE 3 POINT STEADY QUANTITY OF TOOL HOLDERS VARIOUS TOOLING
