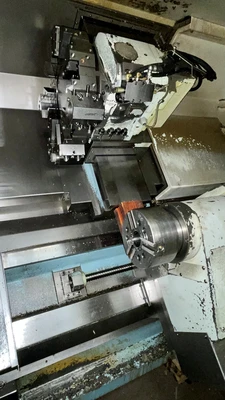

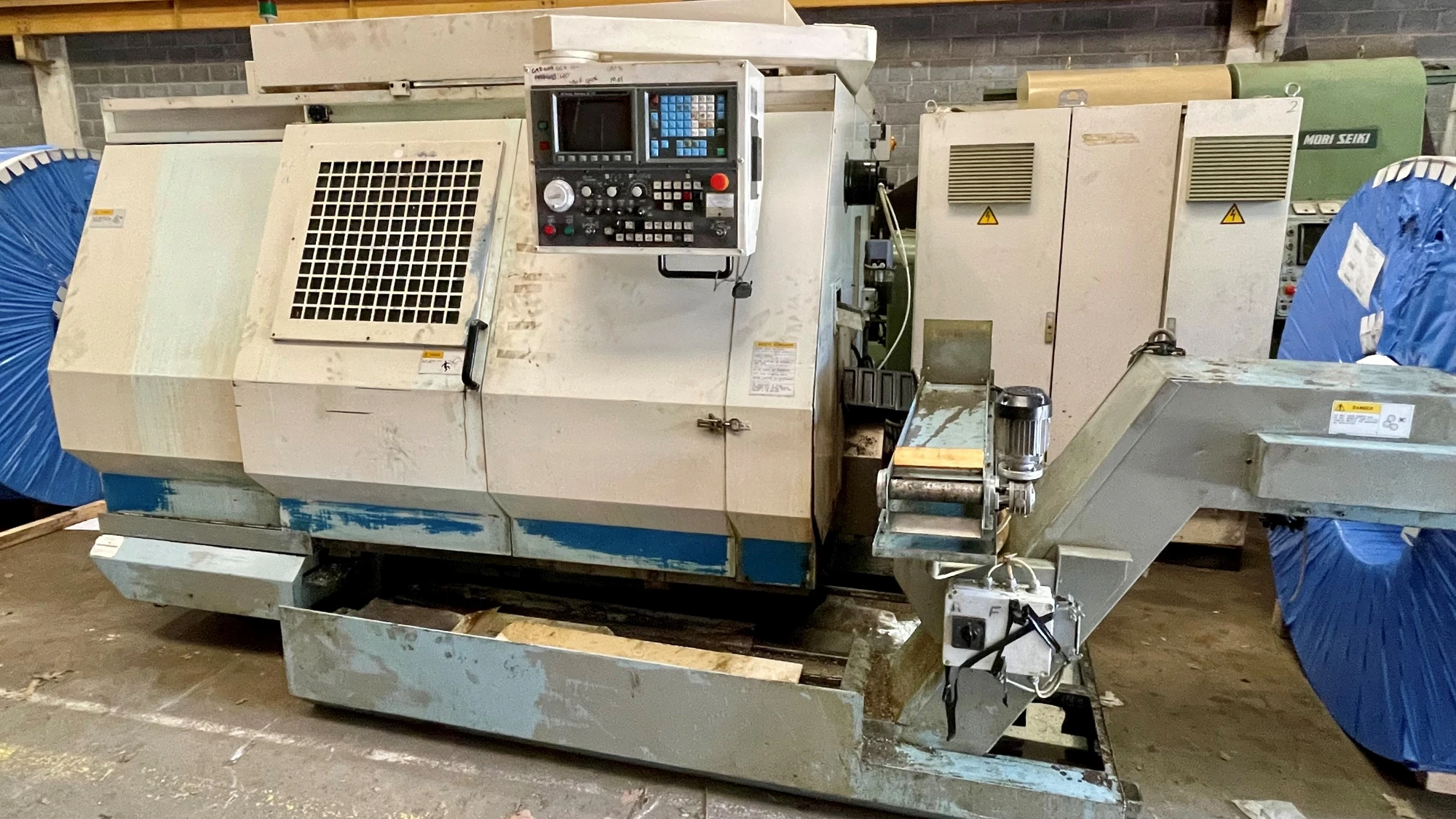

USED 1996 BIGLIA, MADE IN ITALY B56 S2M

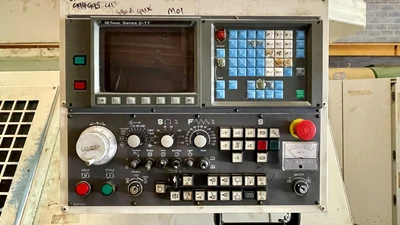

CONTROL: FANUC 0TT-C
CHUCK SIZE MAIN SPINDLE: 200.0 mm
CHUCK SIZE SUB SPINDLE: 160.0 mm
SWING OVER BED MAIN SPINDLE: 300.0 mm
SWING OVER BED SUB SPINDLE: 200.0 mm
MAX MACHINING LENGTH MAIN SPINDLE: 430.0 mm
MAX MACHINING LENGTH SUB SPINDLE: 240.0 mm
DISTANCE BETWEEN NOSE: 790.0 mm
MAIN SPINDLE SPEED: 80 – 4000 rpm
SUB SPINDLE SPEED: 80 – 4000 rpm
MAIN SPINDLE BORE: 80.0 mm
SUB SPINDLE BORE: 52.0 mm

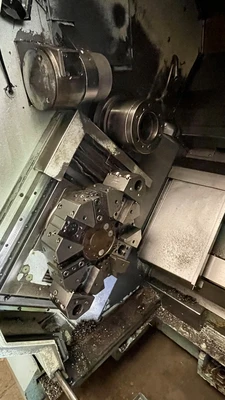

MAIN SPINDLE TURRET: 12 STATION
SUB SPINDLE TURRET: 8 STATION
MAIN SPINDLE NO OF LIVE TOOLS: 6 STATIONS
SUB SPINDLE NO OF LIVE TOOLS: 4 STATIONS
PLUS: SWARF CONVEYOR MACHINE MANUALS
