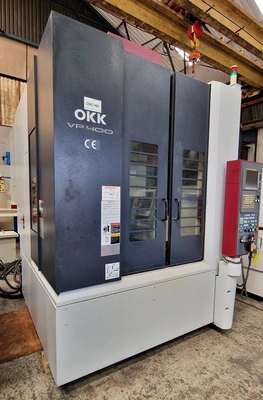

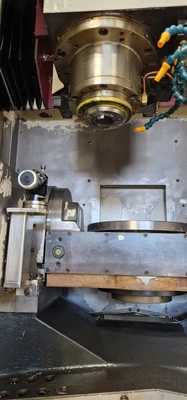

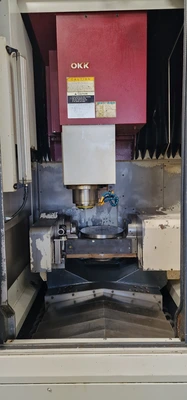

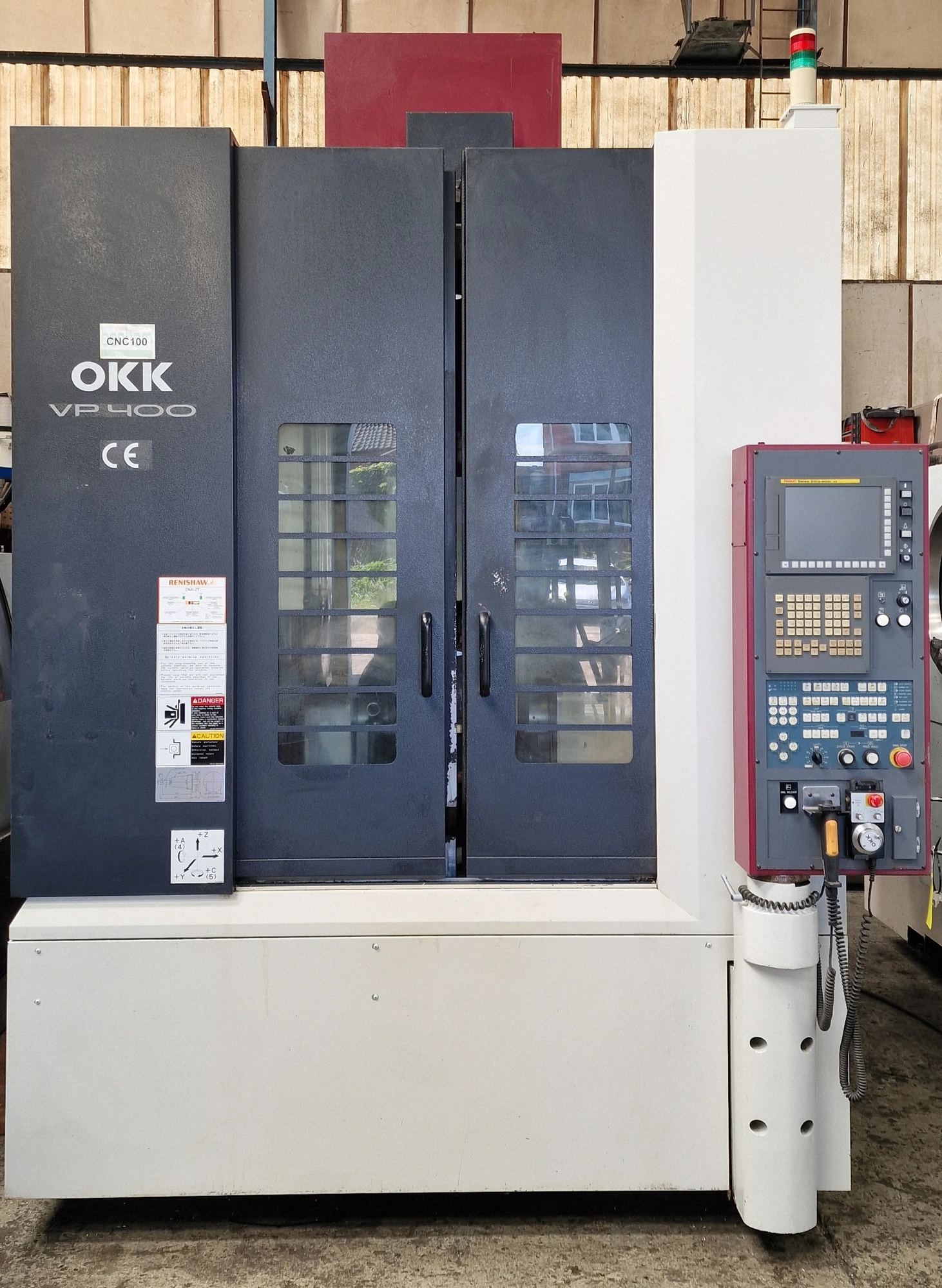

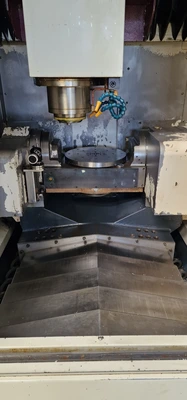

USED 2007 OKK VP 400 310IS A5

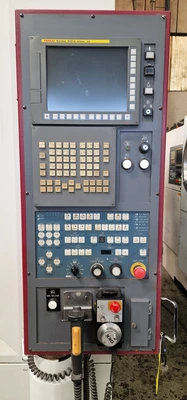

CONTROL: FANUC
TABLE SIZE DIA.: 350.0 mm
TABLE LOAD: 200 KGS
TRAVERSES (XYZAC): X: 600.0 mm Y: 410.0 mm Z: 460.0 mm A: -120 to +30 degrees C: 360 degrees
SPINDLE SPEED: 100 – 12,000 RPM
SPINDLE TAPER: 7/24 # 40
SPINDLE NOSE TO TABLE: 150 – 610.0 mm
SPINDLE MOTOR: 22/18.5 kW
SPINDLE TAPER: BT 40
RAPID TRAVERSE RATE: (X, Y, Z): 48/48/36 m/min
ATC: 30 stations
MAX. TOOL LENGTH: 300.0 mm
MAX. TOOL WEIGHT: 7 KG
TOOL CHANGE TIME: 1.2 SEC
PLUS: BIG PLUS BT 40 SPINDLE 2 SPEED TOOL CHANGER CERAMIC SPINDLE BEARINGS FULL 5 AXIS MACHINE HIGH PRESSURE THROUGH SPINDLE COOLANT RENISHAW MP10 PROBE RENISHAW MEASUREMENT TWIN AUGER CONVEYORS SPINDLE CHILLER FULL SET OF MANUALS ONE PREVIOUS OWNER
