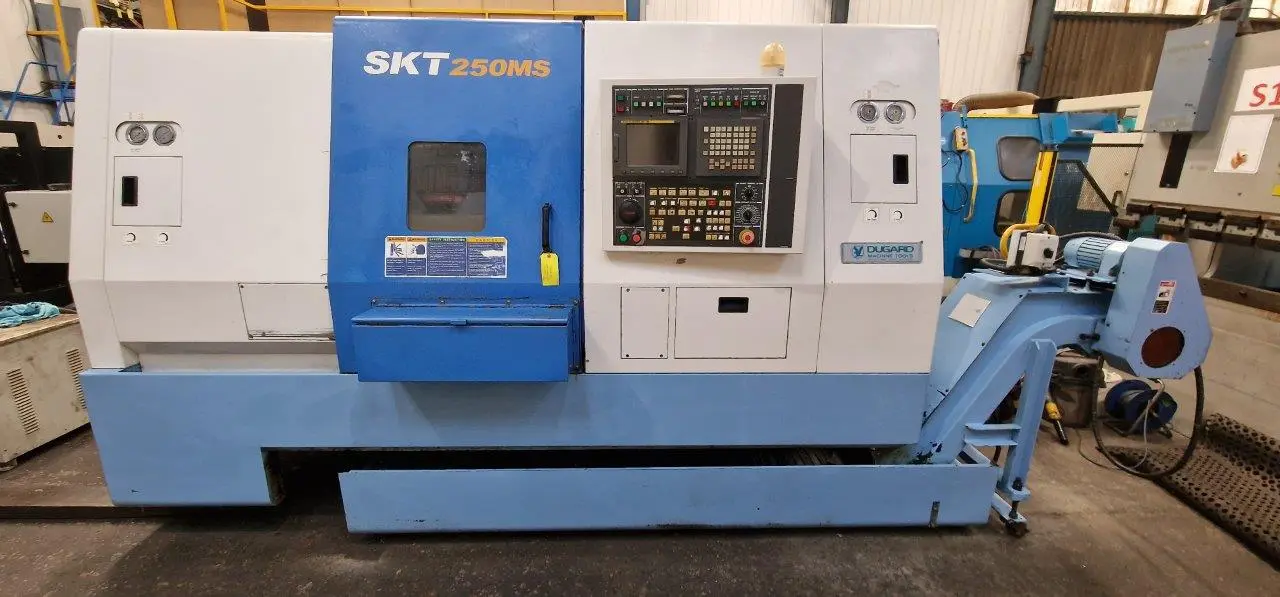

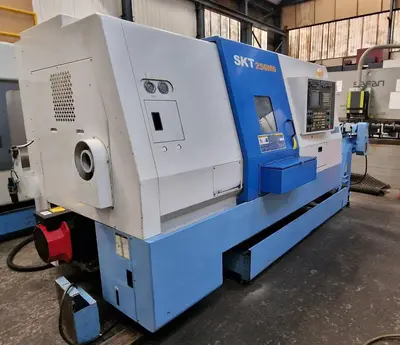

USED 2005 HYUNDAI KIA, MADE IN SOUTH KOREA SKT 250 MS

CONTROL: FANUC 18 IT
SWING OVER BED: 620.0 mm
SWING OVER CROSS SLIDE: 400.0 mm
MAX TURNING DIA: 410.0 mm
MAX WORK LENGTH: 700.0 mm
TRAVEL: X AXIS: 290.0 mm Z AXIS: 750.0 mm B AXIS 700.0 mm
RAPID FEEDS: X AXIS: 20 m/min Z AXIS: 24 m/min B AXIS 20 m/min
SPINDLE SPEED: 3,500 RPM
SUB SPINDLE SPEED: 4,000 RPM
SPINDLE NOSE: A2-8
SUB SPINDLE NOSE: A2-6
SPINDLE POWER: 18.5/22 kW
SUB SPINDLE POWER: 7.5/11 kW
BAR DIA: 82.0 mm
BAR DIA SUB SPINDLE: 65.0 mm

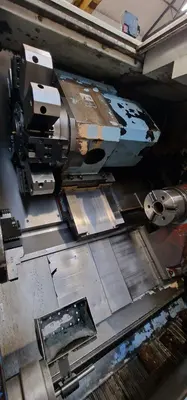

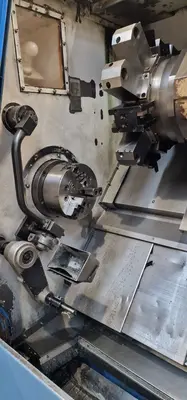

TURRET: 12 STATIONS
PLUS: C AXIS B AXIS PARTS CHATHCHER TOOL SETTING PROBE SWARF CONVAYOR
