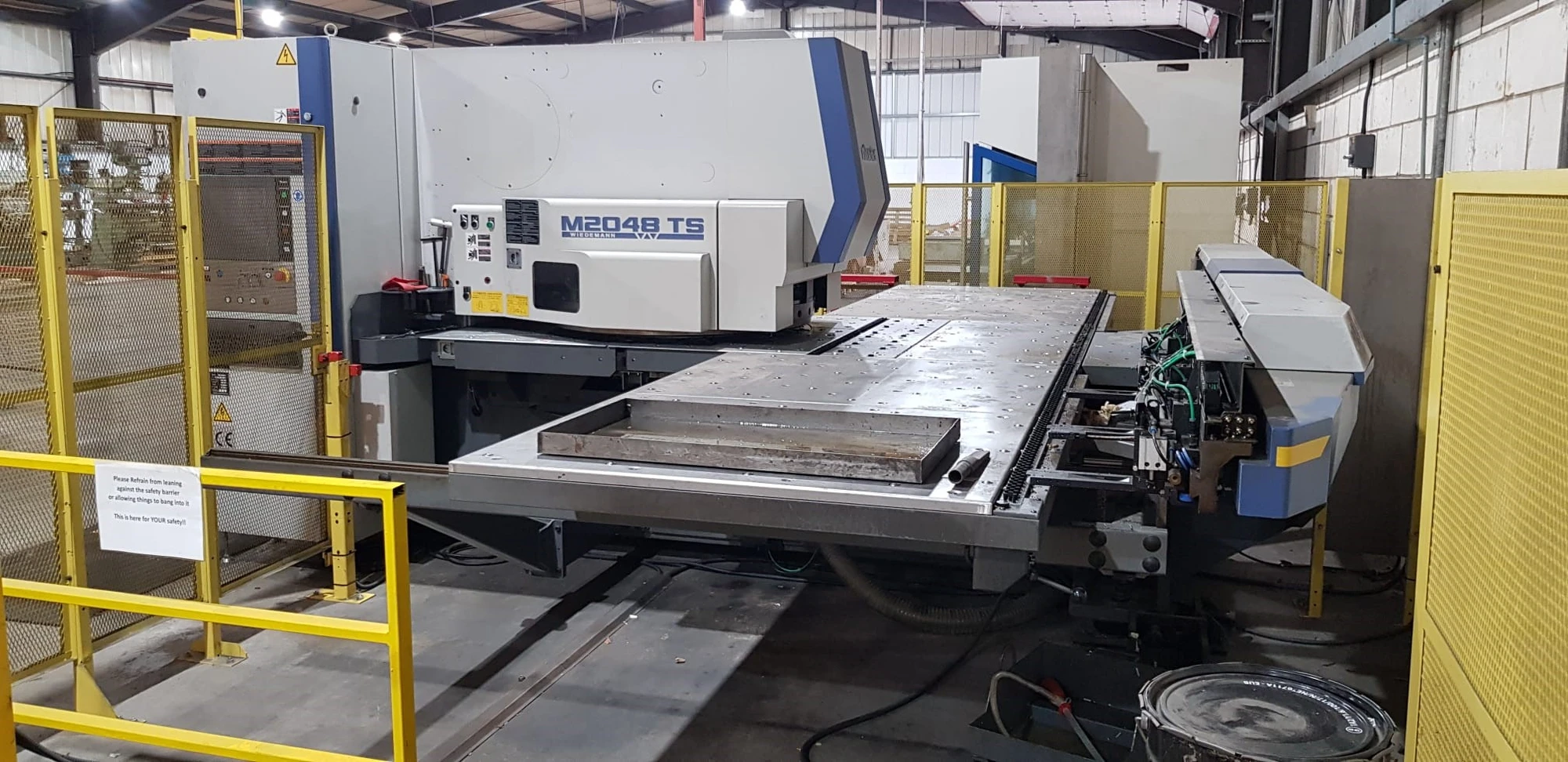

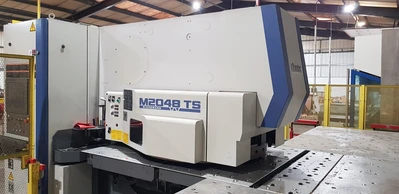

USED 2017 MURATA WIEDEMANN, MADE IN JAPAN MOTORUM 2048

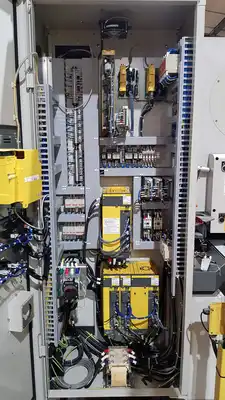

CONTROL: FANUC 30i TOUCH SCREEN
CAPACITY: 20 TONS
SHEET SIZE (WITH ONE REPOSITIONING): 1250mm x 2500mm
SHEET THICKNESS MAX.: 6.35 mm
Y, X STOKE: Y AXIS: 1360.0 mm X AXIS: 2550.0 mm
PUNCHING ACCURACY: +- 0.1mm
THROAT DEPTH: 1340.0 mm
MAX ALLOWABLE SHEET WEIGHT: 150 KG
HIT RATE 1.0T: 25 mm PITCH 8.3 mm stroke: 355 HPM 0.5 mm PITCH 1.4 mm stroke: 900 HPM
SIMULTANEOUS AXIS SPEED: 125 m/MIN
PUNCHING ACCURACY: +- 0.1 mm
TURRET INDEX SPEED: 35 RPM
COMPRESSED AIR: QUANITY: 100NL/MIN PRSSURE: 0.5 MPa
POWER SUPPLY: 19 kVA

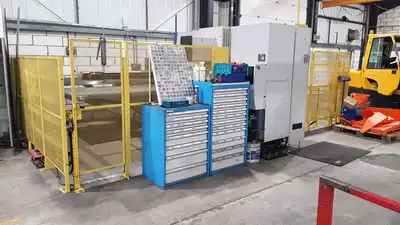

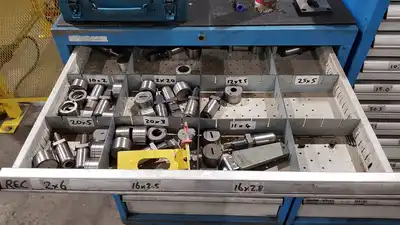

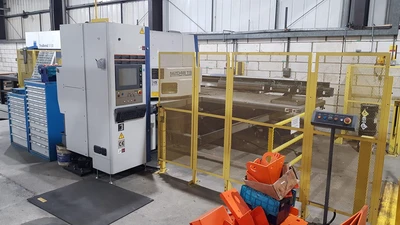

PLUS: GOOD SET OF TOOLING ONE OWNER FROM NEW VERY LESS HOURS SAFETY GUARDS
