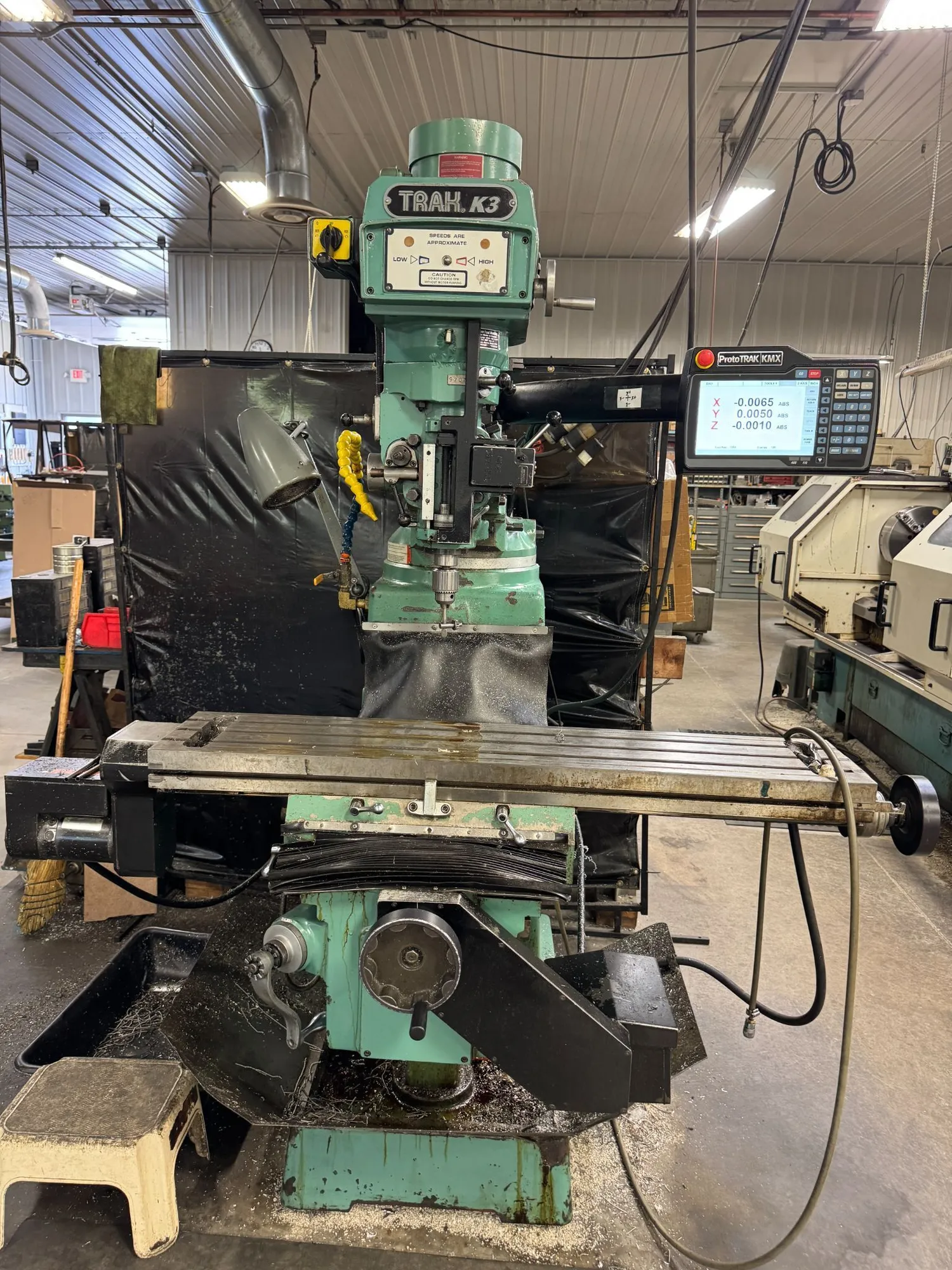

SOUTHWESTERN INDUSTRIES TRAK K3 updated control Proto Trak KMX, 2020
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 32" | 812.8 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
Stock#R861
Model K3
Serial#980155
Control Proto TRAK KMX 2020
Axis 2
Machine Specifications (TRAK K3)
Feature Specification
Table Size 10″ x 50″
Travels (X, Y, Z) 32″ (X), 16″ (Y), 16″ (Knee/Z-Manual)
Quill Travel 5″
Spindle Taper R8
Spindle Motor 3 HP Continuous
Spindle Speeds 60 – 4,200 RPM (Variable)
Quill Feeds 0.0015″, 0.003″, 0.006″ IPR
Head Tilt 90° Left/Right, 45° Forward/Back
3 HP motor 208 Volt 3 Phase,60 Cycle
Max Table Load 750 lbs (Uniform)
Machine Weight ~2,816 lbs
