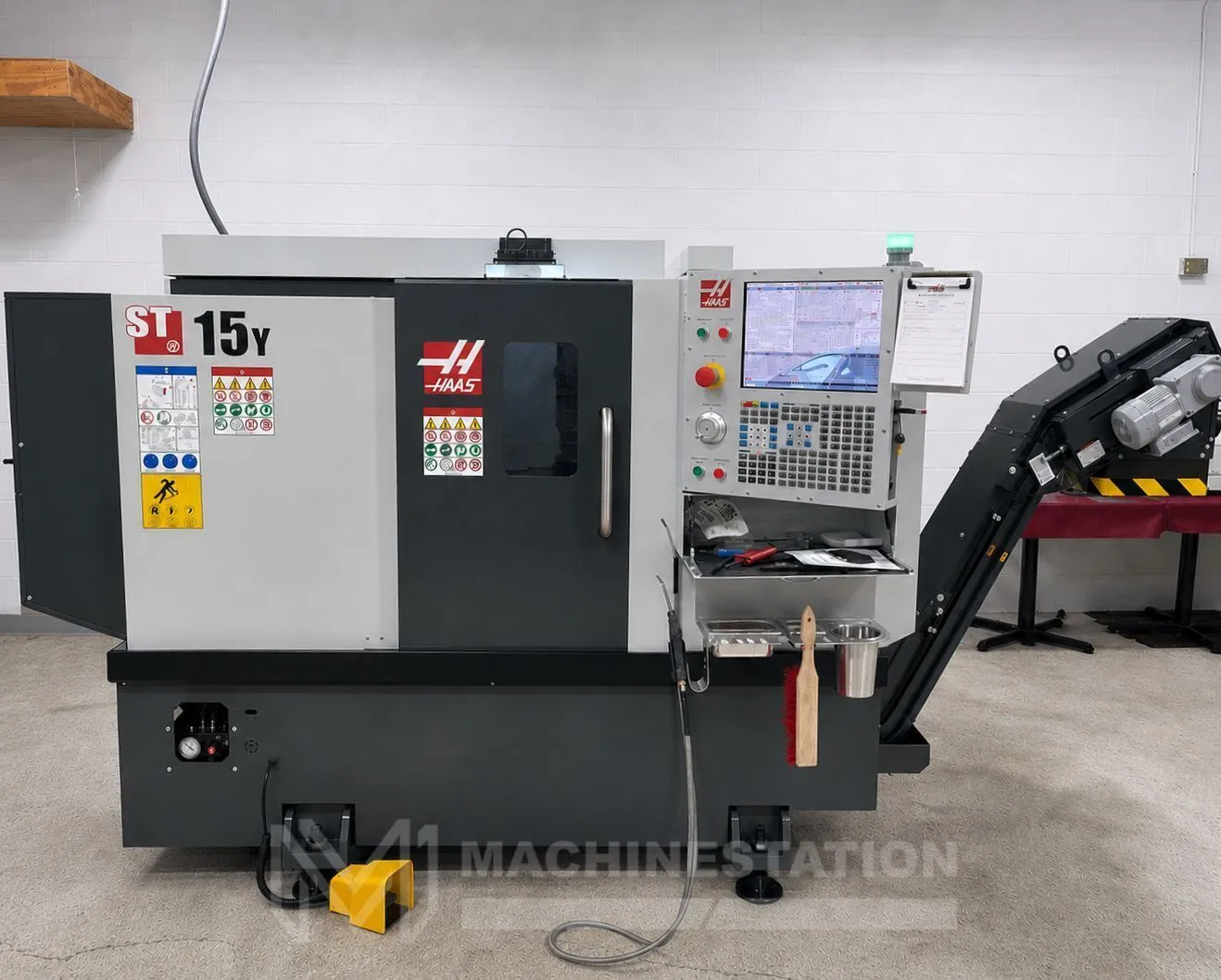

USED 2024 HAAS ST-15Y
Overview
Description
Avoid Paying More! New Haas prices just went up 5% as of May 1st 2025 — plus, long lead times on new machines mean delays and higher costs. This 2024 Haas ST-15Y is fully equipped with 8″ Chuck, C & Y Axis, Only 4 Cutting Hours, Tool Presetter, Coolant Tank and Chip Conveyor.
“Replacement Cost Over $120,000 with Similar Options”
Specifications
| Swing | 16.5" | 419.1 mm |
|---|---|---|
| Machining Length | 16" | 406.4 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 126″ x 70.0″ x 81.0″ High | 126″ x 70.0″ x 81.0″ High |
| Weight | 7,900 lbs Approx. | 7,900 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

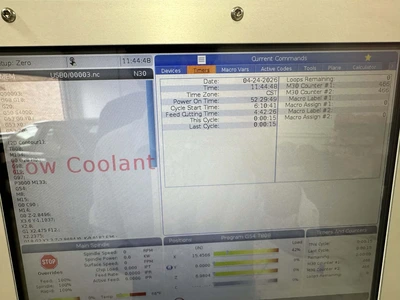

Haas CNC Control
Visual Part Programming System
User Definable Macros
Early Power-Failure Detection Module
Rigid Tapping
Spindle Orientation
Haas Connect: Remote Monitoring
Media Display
1GB Max Memory
Ethernet Interface
WiFi Connection For Haas Control
Inch Measurement Units
Coolant Tank
Capacity:
Max Turning Diameter : 11.0″
Max Swing Over Bed : 16.5″
Max Turning Length: 16.0″
Max Bar Capacity : 2.5″
Travels:
X Axis Travel : 7.88″
Y Axis Travel : ± 2.0″
Z Axis Travel : 16.00″
C Axis : 0.001 Degree
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 1200 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4000 RPM
Turret Type: BMT-45
General:
Air Requirement: 4 scfm @ 100 psi
Machine Dimensions: 126″ x 70.0″ x 81.0″ High
Machine Weight:7,900 lbs Approx.
Equipped With
8″ 3-Jaw Chuck on Spindle
Servo Controlled C Axis Spindle

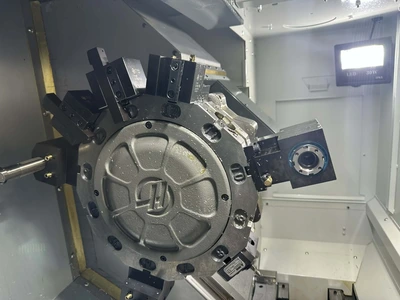

12 Station BMT-45 Live Tool Turret
Y Axis on Turret
Automatic Tool Presetter (Upgraded $6,195 value Included) – Set Tool Length Offsets Quickly

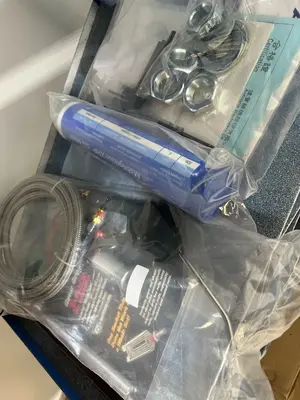

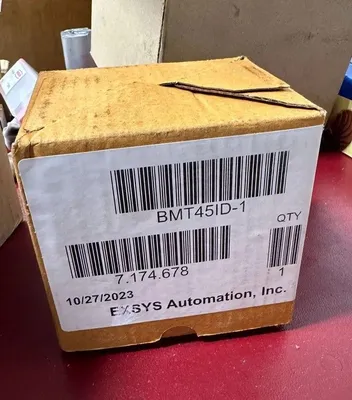

BMT-45 Driven Toolholder Kit
BMT-45 Standard Toolholder Kit

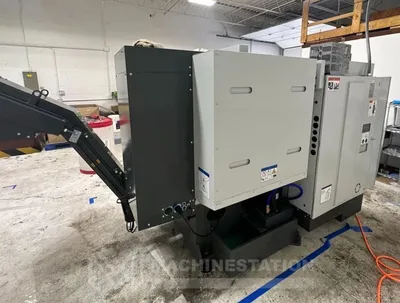

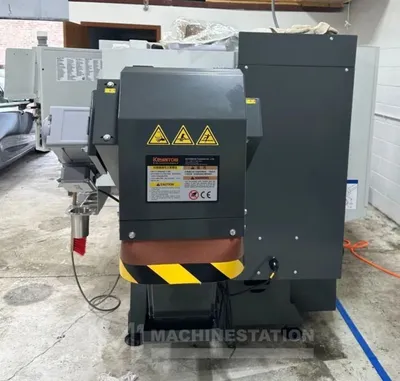

Belt Type Chip Conveyor (Upgraded $6,195 value Included) – High-volume chip removal for increased productivity
Foot Switch
