10” x 50” SWI TRAK K3S 2 Axis CNC Vertical Mill
PROTO TRAK SM
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 32" | 812.8 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |

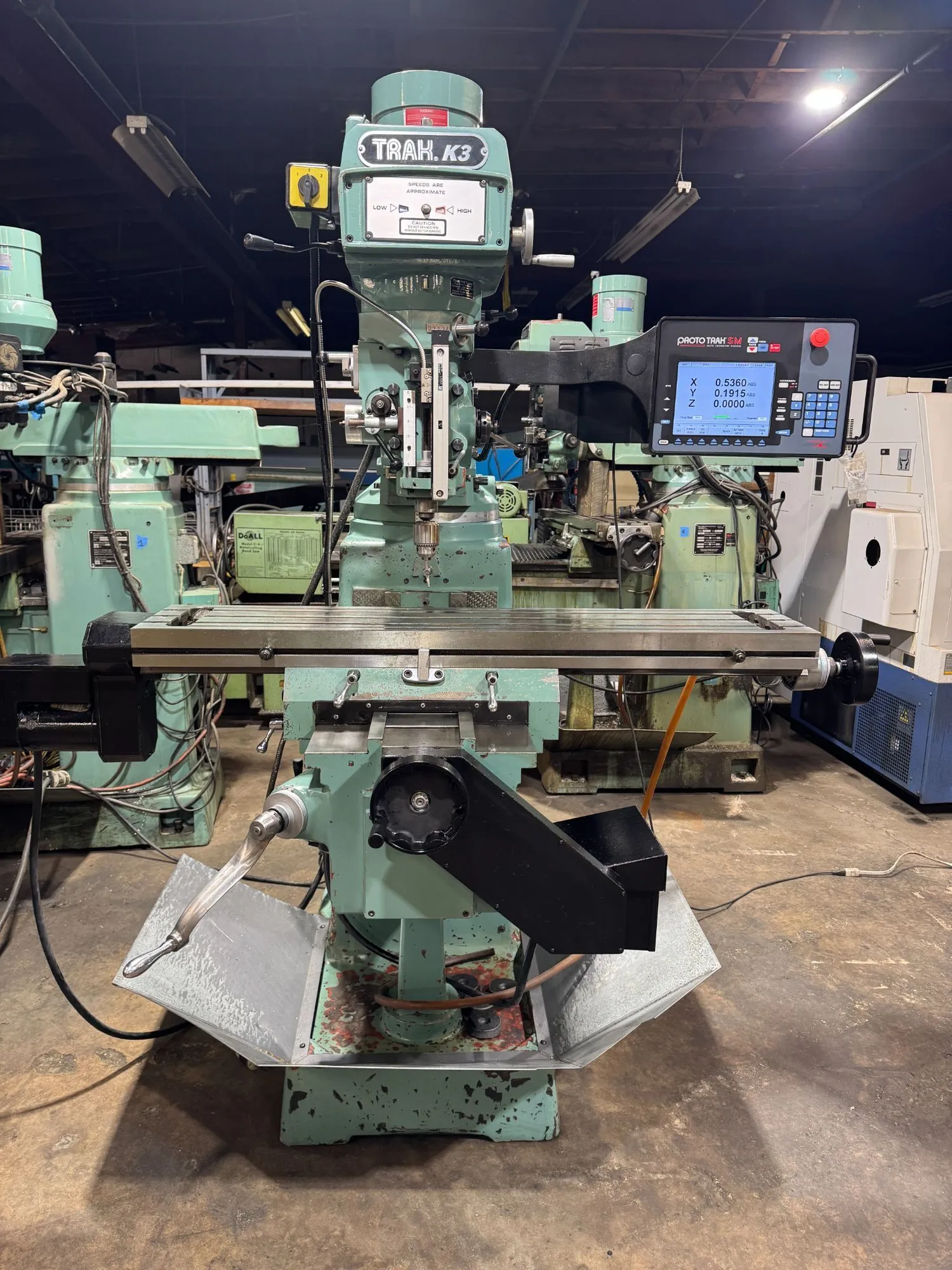

10” x 50” SWI TRAK K3S 2 Axis CNC Vertical Mill
PROTO TRAK SM 2020
Stock#R863
Model K3S
Control Proto Trak SM installed 2020
Serial#023AK12346
Table size.............................................................. 10” x 50”
Longitudinal table travel................................................... 32”
Cross table travel............................................................ 16”
Knee vertical table travel.................................................. 16”
Ram longitudinal travel.................................................... 15”
Quill travel....................................................................... 5”
Spindle speeds............................................................... 60-4200 RPM
Main spindle motor.......................................................... 3 HP
