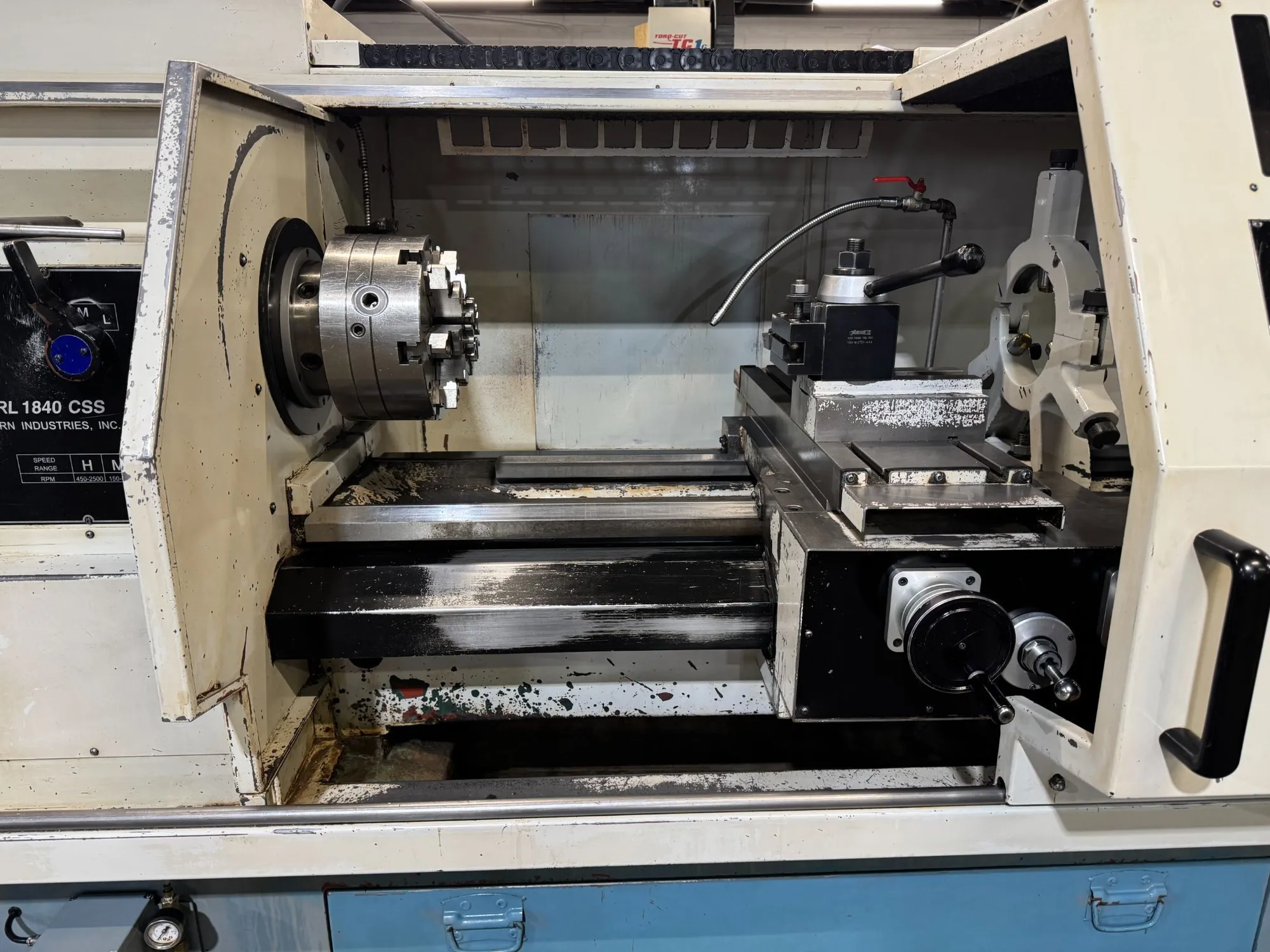

TRAK TRL 1840 CSS CNC Lathe
Prototrak LX3 Control Tooling package
| Swing | 18" | 457.2 mm |
| Machining Length | 40" | 1,016 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.36" | 59.944 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 18.5" | 469.9 mm |
TRAK TRL 1840 CSS CNC Lathe
Prototrak LX3 Control Tooling
Stock R864
Model 1840
Serial#00-6241
Control LX3
Year 2000
Capacity & Bed
• Swing over bed: 18.5" (470 mm)
• Swing over cross-slide: 9" (228 mm)
• Distance between centers: 40" (1,016 mm)
• Bed width: 14.5" (368 mm)
• Bed height: 13 3/8"
Chuck 10” 6 Jaw
Spindle & Headstock
• Spindle nose: D1-6 Camlock
• Spindle through-hole: 2.36" (60 mm)
• Spindle taper: MT-6 (with MT-4 reduction sleeve)
• Spindle motor: 10 HP
• Speed ranges: Infinitely variable in 3 mechanical ranges:
o Low: 50 – 270 RPM
o Medium: 150 – 850 RPM
o High: 450 – 2,500 RPM Tailstock & Movement
• Quill diameter: 2.95" (75 mm)
• Quill travel: 6.3" (160 mm)
• Quill taper: MT-5
• Cross-slide travel (X-axis): 9" (or 13" depending on configuration)
Power & Dimensions
• Electrical requirements: 220V, 3-phase, 60Hz (36 Amps full load)
• Machine weight: Approx. 4,500 – 4,930 lbs
• Footprint (L x W x H): 91" x 53" x 70"
• Tooling package
