| Swing | 49.21" | 1,249.9 mm |
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 4.13" | 104.9 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 315 RPM | 315 RPM |
| Swing Over Cross Slide | 37" | 939.8 mm |
SPECIFICATIONS:
Maximum Swing Over Bedways: 49.21"
Maximum Swing Over Cross Slide: 37"
Distance Between Centers: 118.11"
Width Of Bed: 43.3"
Spindle Bore: 4.13"
Spindle Speeds (24): 1.6 - 315 RPM
Weight Capacity (Unsupported): 60,000 Lbs
Weight Capacity (2-Steady Rests): 80,000 Lbs
Equipped With:

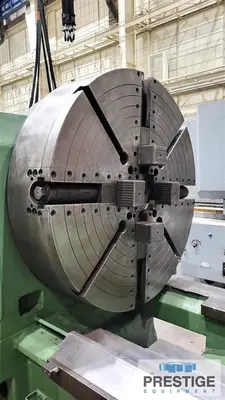

49" 4-Jaw Chuck
Mitutoyo KA Digital Readout On X-Axis
Power Top Compound for Taper Cutting
6-Way Power Rapid Traverse

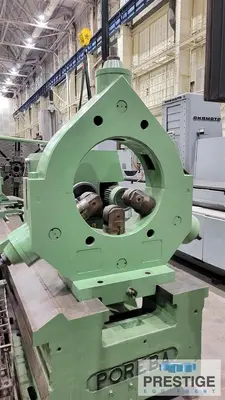

24" Dia. Steady Rest
9" Dia. Follow Rest
Inch/Metric Threading

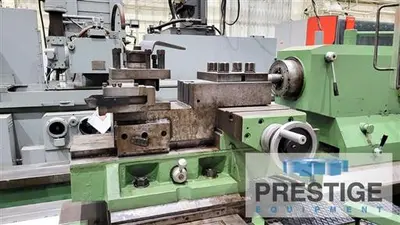

4-Way Tool Post
Coolant System

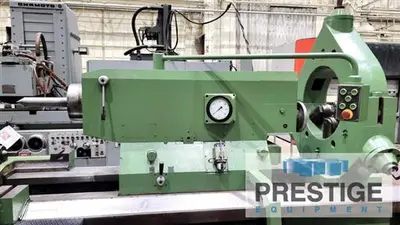

Power Tailstock
100 HP
Features:
49" 4-Jaw Chuck
Power Top Compound for Taper Cutting
6-Way Power Rapid Traverse
24" Dia. Steady Rest
9" Dia. Follow Rest
