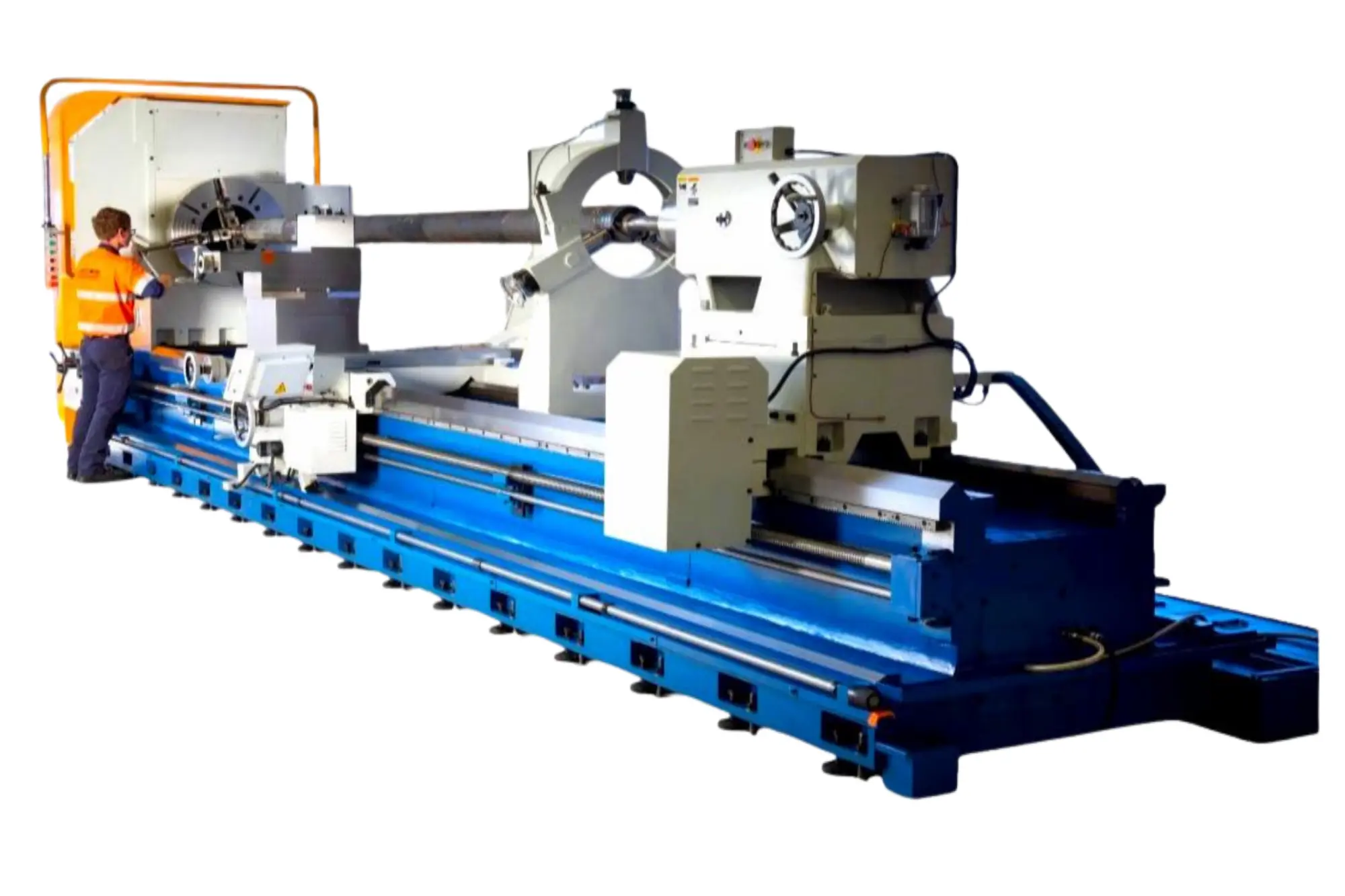

NEW BEMATO MOH1400.120.9

The BEMATO MOH1400.120.9 Heavy Duty Oil Country Lathe is built for large-diameter pipe turning, shaft machining, and heavy-duty industrial applications commonly found in the oil & gas, energy, mining, and heavy equipment industries. Designed with a massive 1,385 mm swing over bed and 12,000 mm distance between centers, this machine delivers exceptional rigidity and stability for machining long and oversized workpieces with precision. Its heavy-duty 800 mm wide hardened and ground bedways, combined with a no-gap bed structure for extended lengths, provide reliable accuracy and vibration resistance during demanding turning operations.

Equipped with a large Ø230 mm spindle bore and A2-15 spindle nose, the MOH1400.120.9 is ideal for handling large pipe diameters and oil country tubular goods with ease. The machine features a powerful 30 HP main spindle motor with a 6–400 RPM spindle speed range, delivering high torque for both roughing and finishing applications. A robust MT#7 tailstock with Ø200 mm quill diameter and 300 mm quill travel provides excellent support for long workpieces, while the servo-driven Z-axis feed system ensures smoother and more precise longitudinal movement. Additional features such as rapid traverse on the X and Z axes, hardened guideways with wipers, automatic lubrication system, coolant system, and heavy-duty 4-way tool post make the BEMATO MOH1400.120.9 a dependable solution for manufacturers requiring high-capacity turning performance, durability, and long-term machining reliability.

MAIN MOTOR
SPINDLE MAGNETIC BRAKE
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
4-WAY TOOL POST
X, Z AXES RAPID TRAVERSE
WORK LIGHT
METER / INCH COMMUNITY GEAR BOX
GUIDEWAYS HARDENED, GROUND WITH WIPERS
LIVE CENTER MT7
TOOL BOX WITH TOOLS
LEVELLING BOLTS & PADS
OPERATION & SERVICE MANUAL
