Makino S56 with Erowa "Work Pal" pallet system and Graphite Package (This machine never ran graphite)
| X | 35.4" | 899.16 mm |
| Y | 19.7" | 500.38 mm |
| Z | 19.7" | 500.38 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 20 | 20 |
| Taper | HSK-63a | HSK-63a |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 39.4" | 1,000.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Pro 5) | CNC (Pro 5) |
| Dimensions | 99.25" x 109" x 116" | 99.25" x 109" x 116" |
| Weight | 16,500 lbs. | 16,500 lbs. |

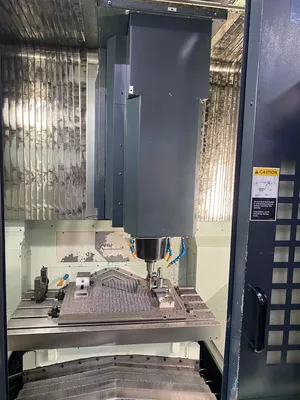

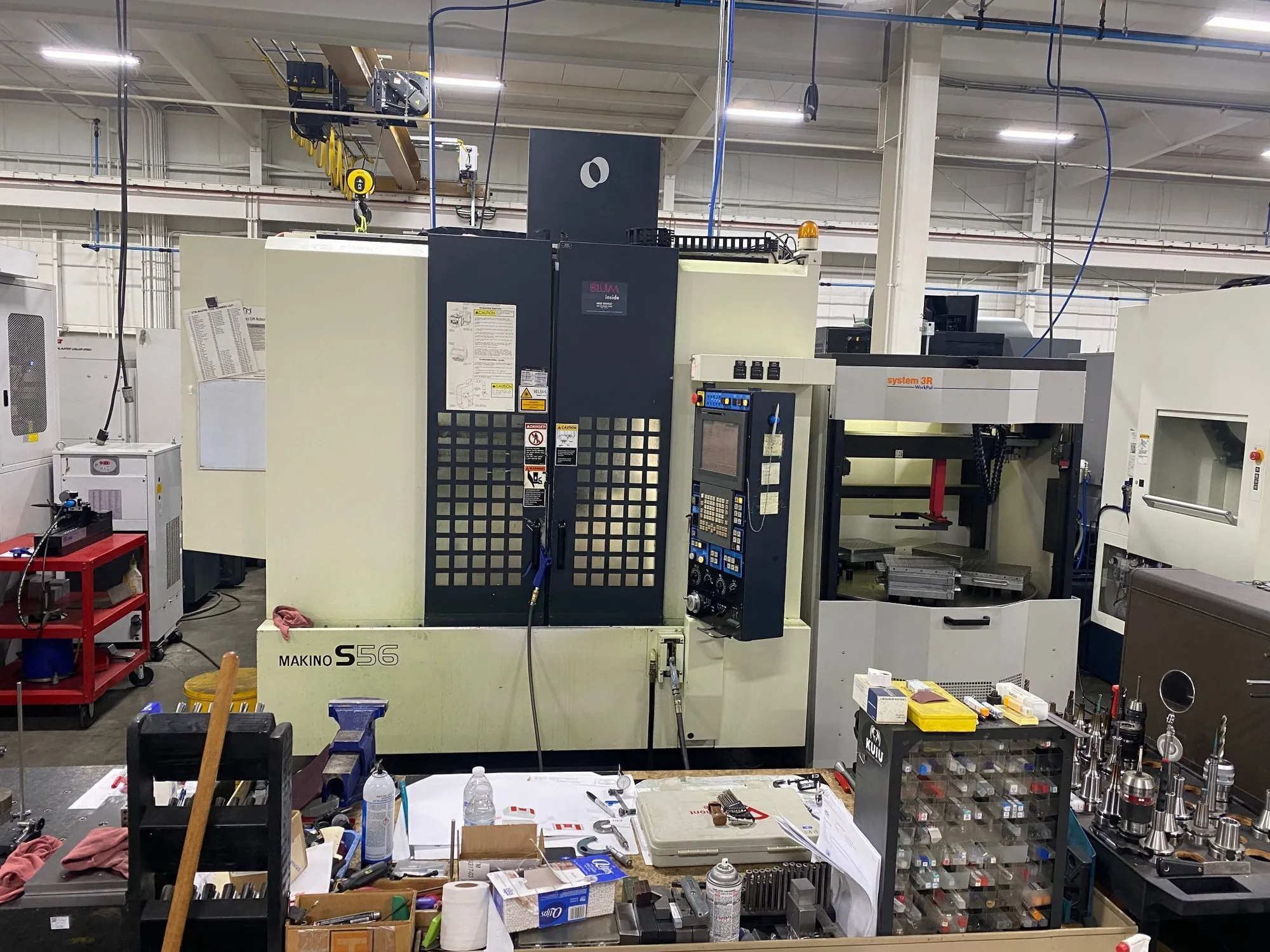

ONE USED MAKINO HARD MILLING HIGH SPEED VERTICAL MACHINING CENTER
Model: S56
Table: 39.4” x 19.7”
Max weight on table: 1,325 lbs.
Travels: X,Y,Z: 35.4” x 19.7” x 19.7”
Rapid traverse rates: 1,574 ipm
RPM: 20,000
Spindle HP: 20
Spindle taper: HSK-63a
ATC: 20 place
Dimensions: 99.25” x 109” deep x 116” high (maximum Operating height)
Weight: 16,500 lbs.
EQUIPPED WITH:

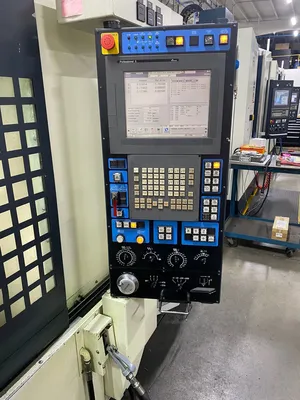

Pro 5 controls
Coolant through spindle
Chip Blaster
Rigid tap
Graphite package included (this machine never cut graphite, only nylon and SS using mostly 12 mm tooling)

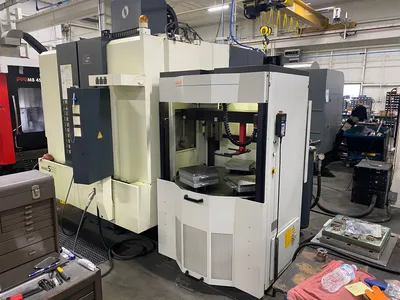

Erowa “Work Pal” 5-position pallet system with 3R Automation pallets
Approximately 40) Makino Stainless steel MST HSK-63a tool holders
Manuals
SN: V110162, New 4/2008
Note: This machine was only used for “fine finishing”, never for heavy metal removal.
Condition: Excellent In plant and under power until end of June.
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
$39,500.00
Best regards, Jerry Ditter, Pres.
