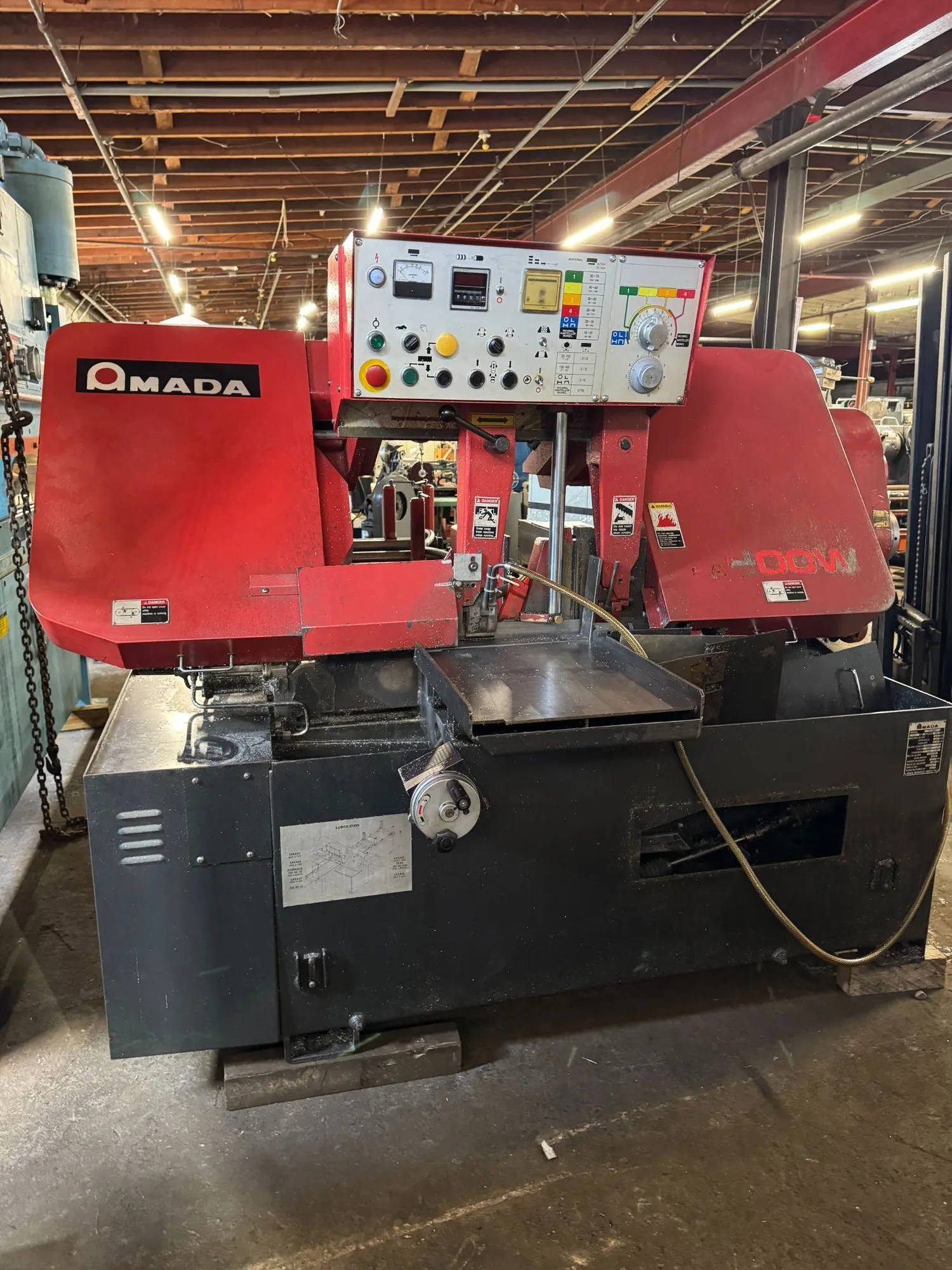

Amada HA-400W 16” x 16” Automatic Band Saw
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 15' | 4,572 mm |
Amada HA-400W 16” x 16”
Automatic Band Saw
Stock#RA872
Model#HA-400W
Year 2004
Round Stock Capacity, Maximum 16"
Square Stock Capacity, Maximum 16" x 16"
Rectangular Stock Capacity, Maximum 16" x 16"
Work Load Capacity 5511 LBS
Band Length 180" (15')
Band Width 1.5"
Band Thickness .050"
Band Speeds, Variable 50 to 295 FPM
Table Height 27.6"
Motor, Horsepower 7.5 HP
Hydraulic Motor, Horsepower 2 HP
Weight, approximately 4400 LBS
Hydraulic-Driven Stock-Feed Table
Hydraulic Band Saw Up-Feed and Down-Feed
Auto clamp & Indexing
5’ Exit Table
230/460/3/60
Chip Conveyor
Coolant
