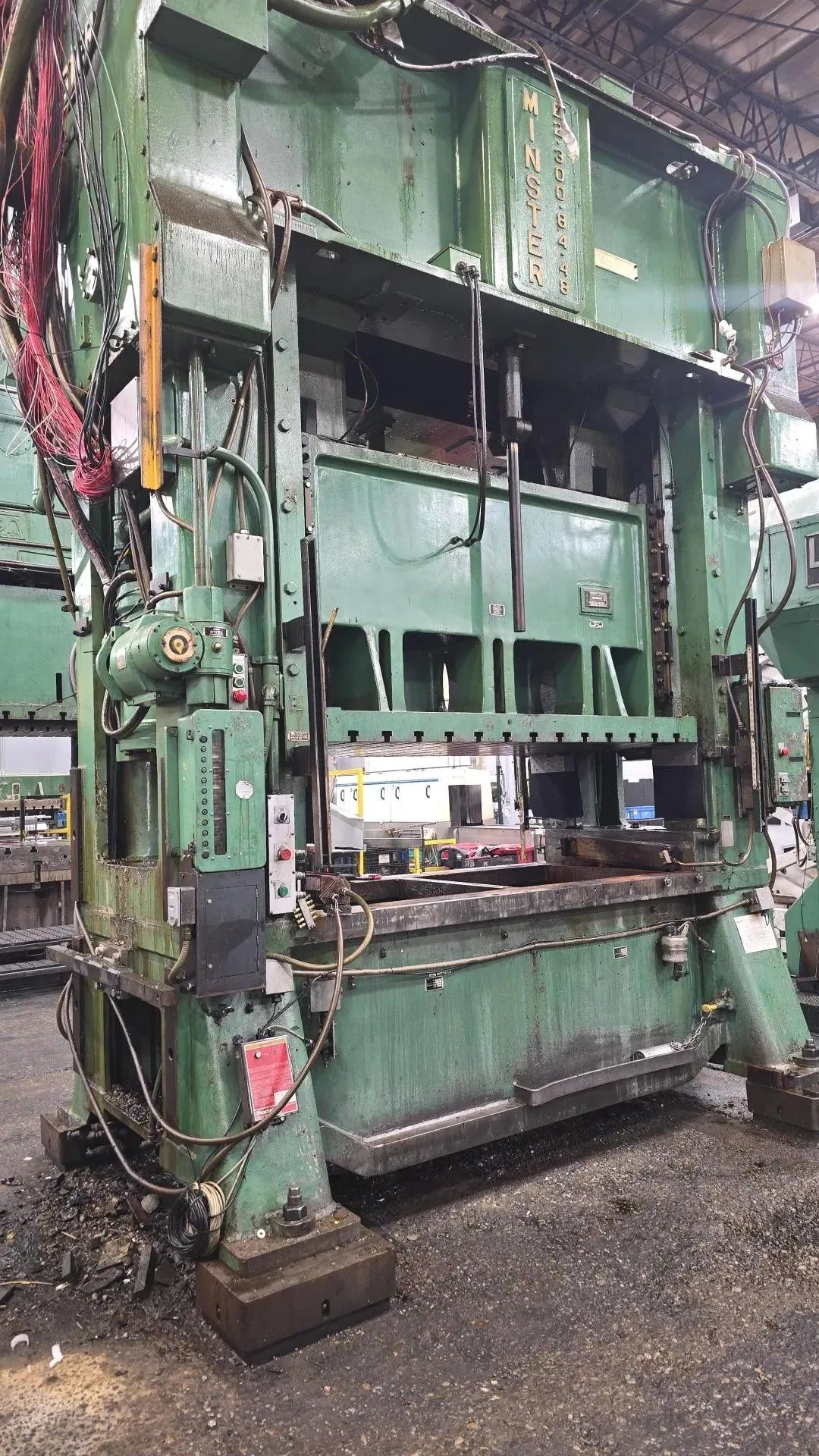

300 ton Minster HeviStamper Straight Side Mechanical Press: 84" x 48" Bed Area, 10" Stroke, 28" Shut Height, 0-100 SPM
| Tonnage | 300 T | 272.156 t |
| Stroke | 10" | 254 mm |
| Shut Height | 28" | 711.2 mm |
| Bed area (Left to right) | 84" | 2,133.6 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 100 strokes/min. | 100 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 27" | 685.8 mm |
| Weight | 102,000 | 102,000 |
Model Number: E2-300-84-48
Serial Number: E2-300-25559
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 10”
Strokes per Minute: 0-100
Shut Height: 28” over bed
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 27” wide
Floor to top of bed: 38”
Overall Weight: 102,000 lbs
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
Vertical Light Curtains
Wintriss Smart Pac Pro Control
Wintriss Light Curtains
Wintriss Die Protection
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Main Motor: 50 HP @ 1800 RPM
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
