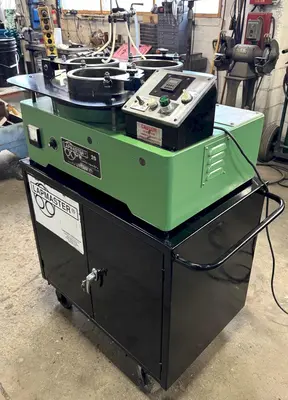

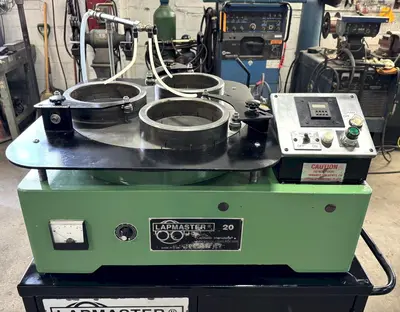

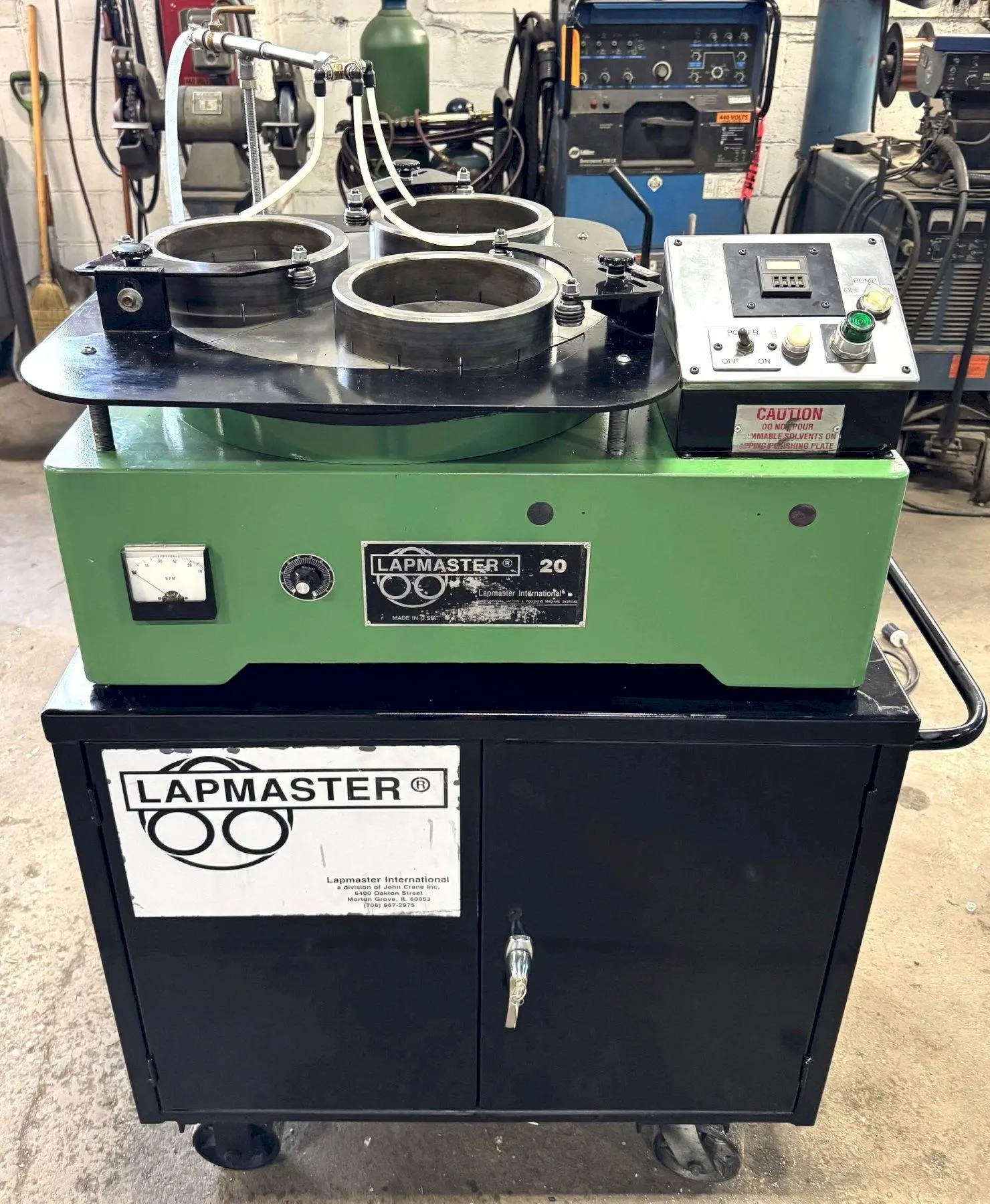

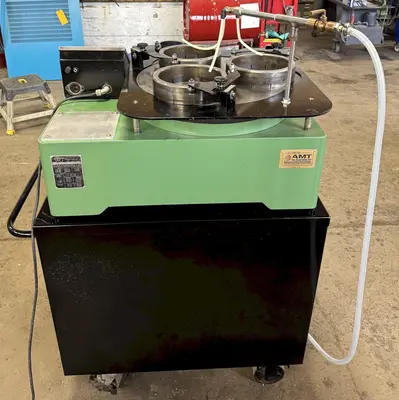

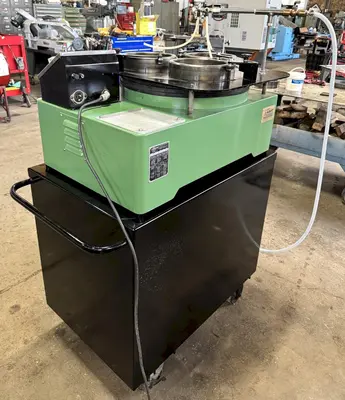

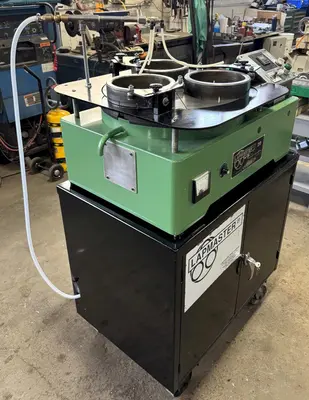

LAPMASTER HEAVY DUTY BENCH MODEL LAPPING MACHINE
MODEL: 20

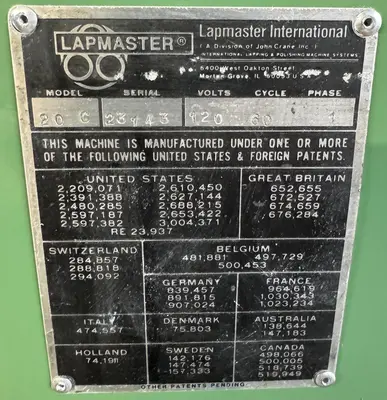

SERIAL NUMBER: 23143
GENERAL SPECIFICATIONS

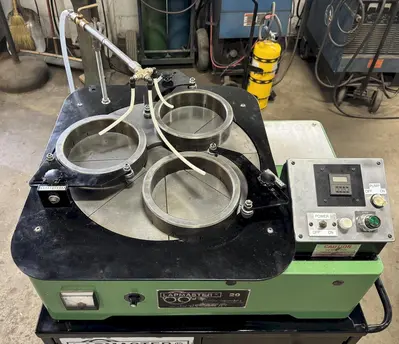

Three Ring Style Open Face Machine
For Production Parts Up Yo: 7-3/8" Diameter
Lapping Plate Dimensions: 20" O.D. x 5" I.D.
Conditioning Ring Dimensions: 7-1/2" I.D. x 9" O.D.
Parts Capacity Per Full Load: 1/2" Diameter - 528 Parts
1" Diameter - 120 Parts
2" Diameter - 27 Parts
Lapping Plate Speed: 70 RPM
EQUIPPED WITH
1 HP Main Drive Motor and Controls, 120/60/1
20" Diameter Serrated Cast Iron Lapping Plate
(3) Cast Iron Conditioning Rings
(3) Adjustable Ring Roller Guides (Yokes)

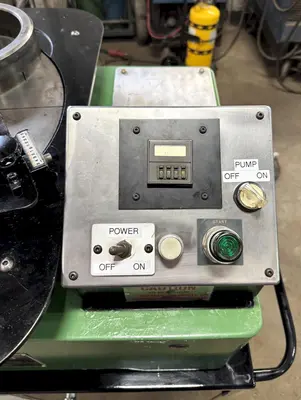

Automatic Cycle Timer Control
Wrap Around Work Table

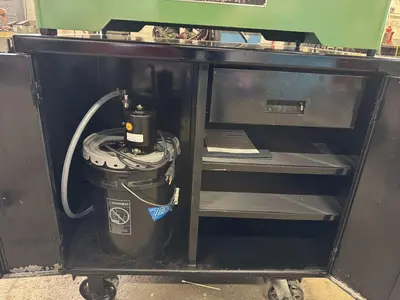

Slurry Feed System w/New Pump, Tank and New Distributor
Heavy Duty Steel Weldment Base
Lapmaster Rolling Cart
Approximate Overall Dimensions:
Approximate Weight: 500 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
