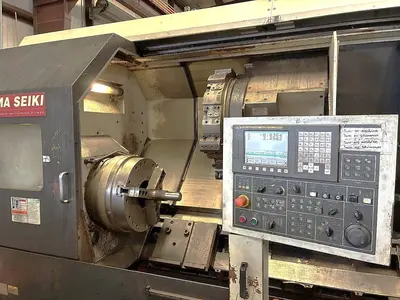

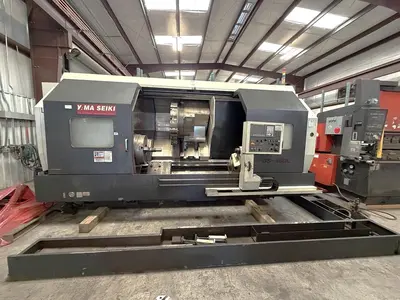

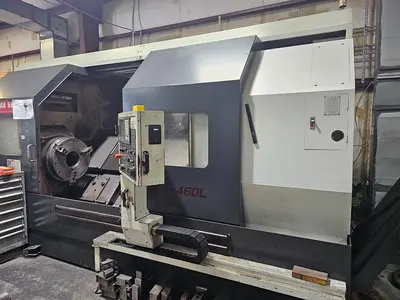

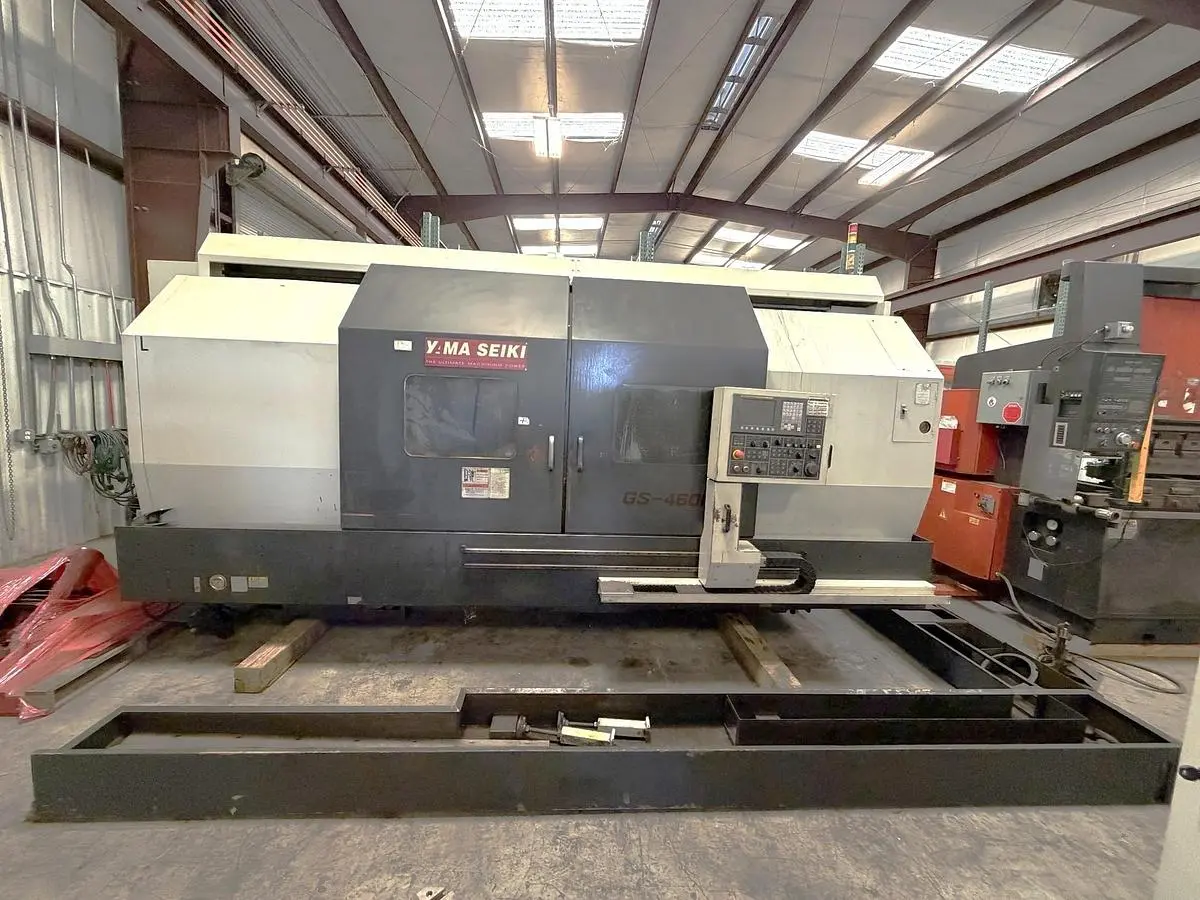

USED 2004 YAMA SEIKI GS-460L

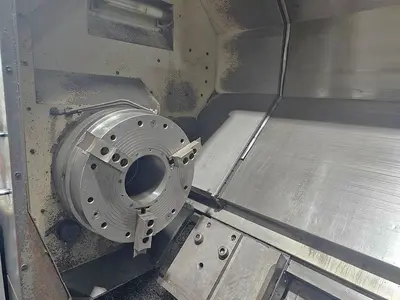

24" SMW Autoblok 3 Jaw Air Chuck

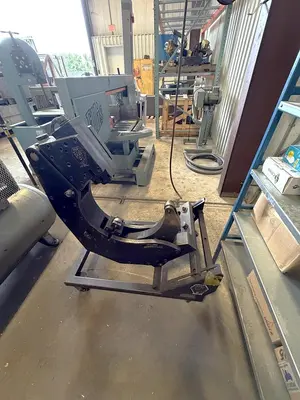

Chip Conveyor Tailstock Steady Rest
8" Bar Capacity
2 Speed Gearbox RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals

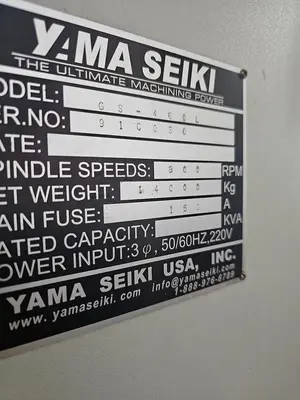

Wired 220V 3 Phase / 150A Required

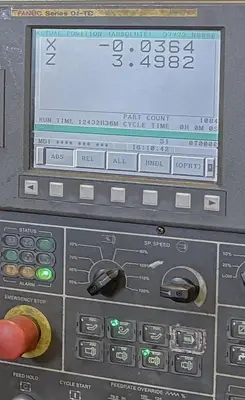

**Run Time Hours 12,432**

The 2004 Yama Seiki GS-460L is a robust heavy-duty CNC lathe equipped for demanding tasks. Notable for its 24-inch SMW Autoblock air chuck and an impressive 8.07-inch bar capacity, this machine ensures versatility in handling various workpieces. With a 29-inch swing over the bed and an 80-inch Z-axis travel, it offers substantial machining capabilities, allowing for a maximum turning diameter of 24 inches and a turning length of 79 inches.

Powered by a 60 HP, 2-speed geared motor, the spindle reaches speeds up to 900 RPM, accommodating a wide range of materials and requirements. It features a 12-position turret, which facilitates efficient tool changes and minimizes downtime in production. Controlled via the Fanuc 0i-TC Series, the lathe delivers reliable precision and ease of use.

Additional features include a steady rest and a chip conveyor for smoother operations and maintenance. Weighing approximately 30,800 lbs., this used Yama Seiki lathe is well-suited for heavy-duty applications in various industrial settings. It offers a strategic blend of power, precision, and flexibility for enhancing workshop productivity.

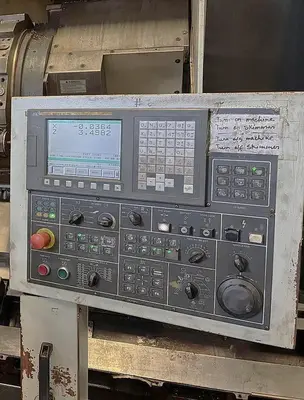

Control: Fanuc 0i-TC Series Control
Chuck Size: 24" SMW Autoblock 3 Jaw Air Chuck
Maximum Swing: 29"
Maximum Turning Diameter: 24"
Maximum Turning Length: 79"
Maximum Bar Capacity: 8.07
X-Axis Travel: 13"
Z-Axis Travel: 80"
Spindle Nose / Spindle Bore: A2-15" / 8.07"
Spindle Speeds: 900 RPM
Spindle Motor: 60 HP - 2 Speed Geared

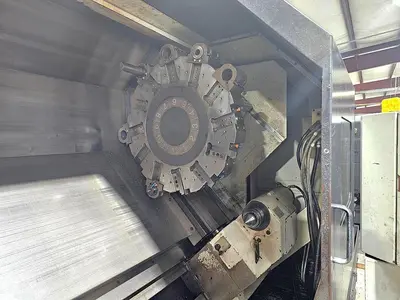

Number of Turret Positions: 12 Position Turret
Machine Dimensions: Not Available
Machine Weight: 30,800 lbs.
