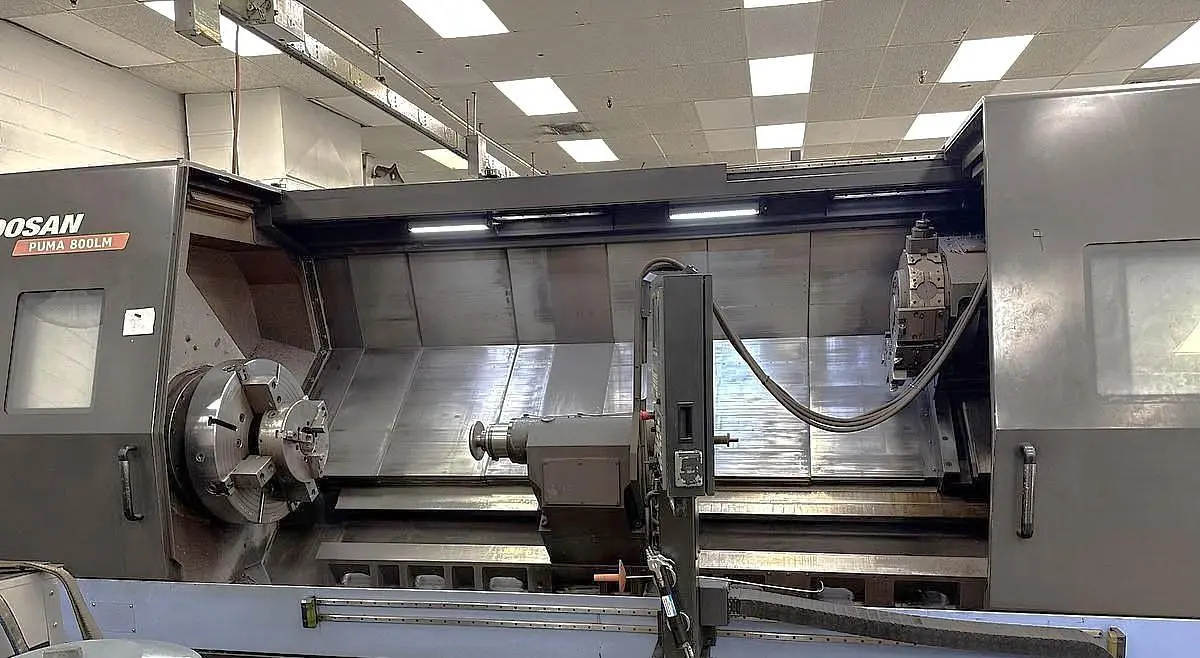

USED 2015 DOOSAN PUMA 800LM

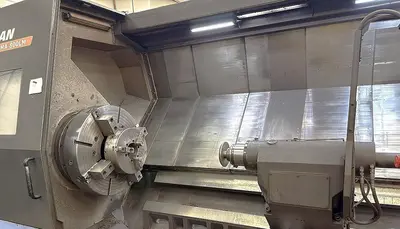

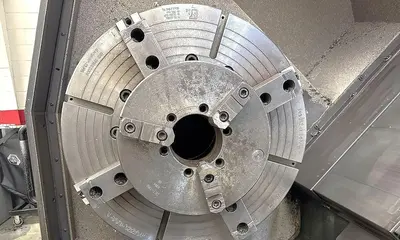

32" 4 Jaw Manual Chuck
12.6" Bar Capacity

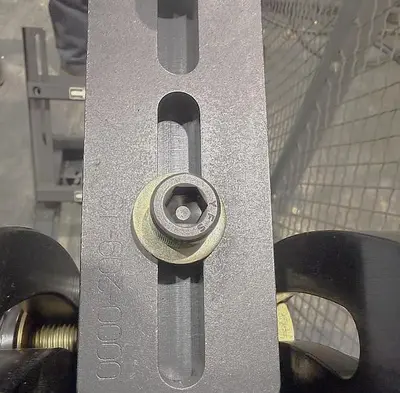

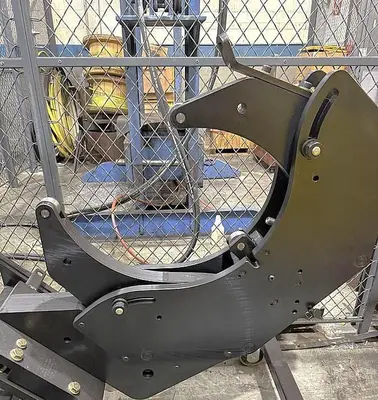

New RIP Manual Steady Rest
Tailstock

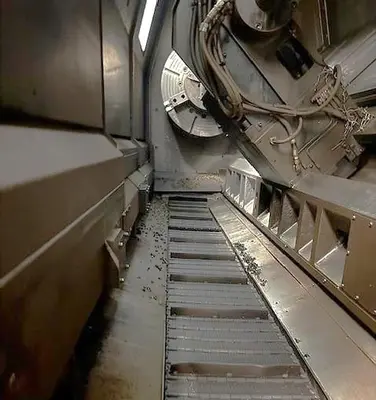

Chip Conveyor

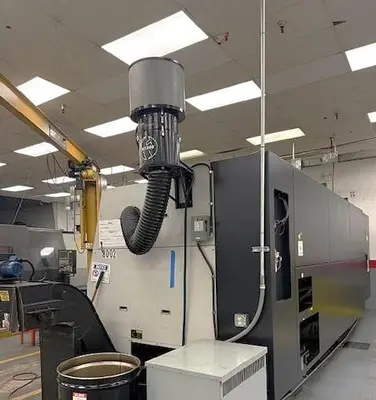

Mist Collector

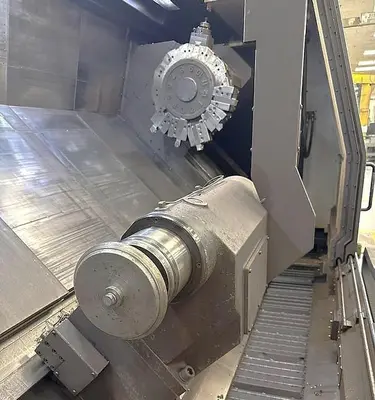

12 Station VDI Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
Wired 200/220V Electrics
All Available Manuals
All Available Static Tooling
Some Live Tool Holders

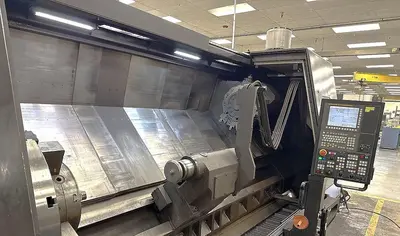

The 2015 Doosan Puma 800LM CNC lathe is a reliable and precise machine designed for demanding industrial applications. Equipped with a Fanuc Series 32i-Model B Control, it boasts a large 32" 4-jaw manual chuck and accommodates a bar capacity of 12.6". The machine features a generous turning length of 126" and can handle a maximum turning diameter of 35.4", making it suitable for larger workpieces.

With an impressive spindle speed range of 3 to 750 RPM and a powerful 60 HP spindle motor, this lathe ensures efficient and smooth cutting operations. The inclusion of a C Axis with a high precision of .001-degree rotation and a milling function adds versatility to the machine's repertoire. Rapid traverse rates are 472 IPM in the X-axis and 397 IPM in the Z-axis, enabling fast and efficient movement across the workpiece.

Additional features include a new RIP steady rest, tailstock, and conveyor, contributing to its adaptability and ease of use. The machine's overall dimensions are 290" x 104" x 102", and it weighs approximately 48,500 lbs, making it robust and stable for heavy-duty machining tasks.

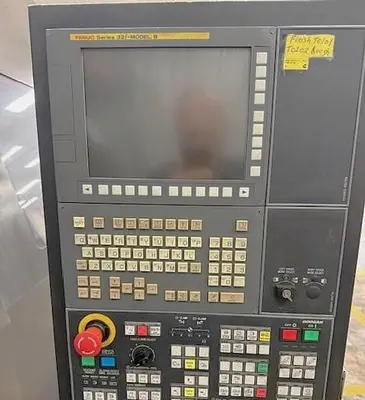

Machine Control: Fanuc Series 32i-Model B Control
Chuck size: 32" 4 Jaw Manual Chuck
Maximum Swing over Bed: 40.6"
Maximum turning diameter: 35.4"
Maximum Distance Between Centers: 126"
X axis travel: 18.52"
Z axis travel: 127.46"
C Axis Spindle Rotation: .001 Degree
Spindle Nose / Spindle Bore / Bar Capacity: A2-20" / 12.6" / 12.6"
Spindle speed: 3 - 750 RPM
Spindle motor (30 min / cont): 60 / 50 HP
Rotary Tool Speed / Rotary Motor: 30 - 3,000 RPM / 15 HP
Turret type: 12 Position Bolt on Style Turret
Rapid traverse rates x, z: 472 IPM / 397 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 6.3" / 5.9" / #5 MT
Machine dimensions: 290" x 104" x 102" (355" length with chip conveyor in place)
Machine weight: 48,500 lbs.
