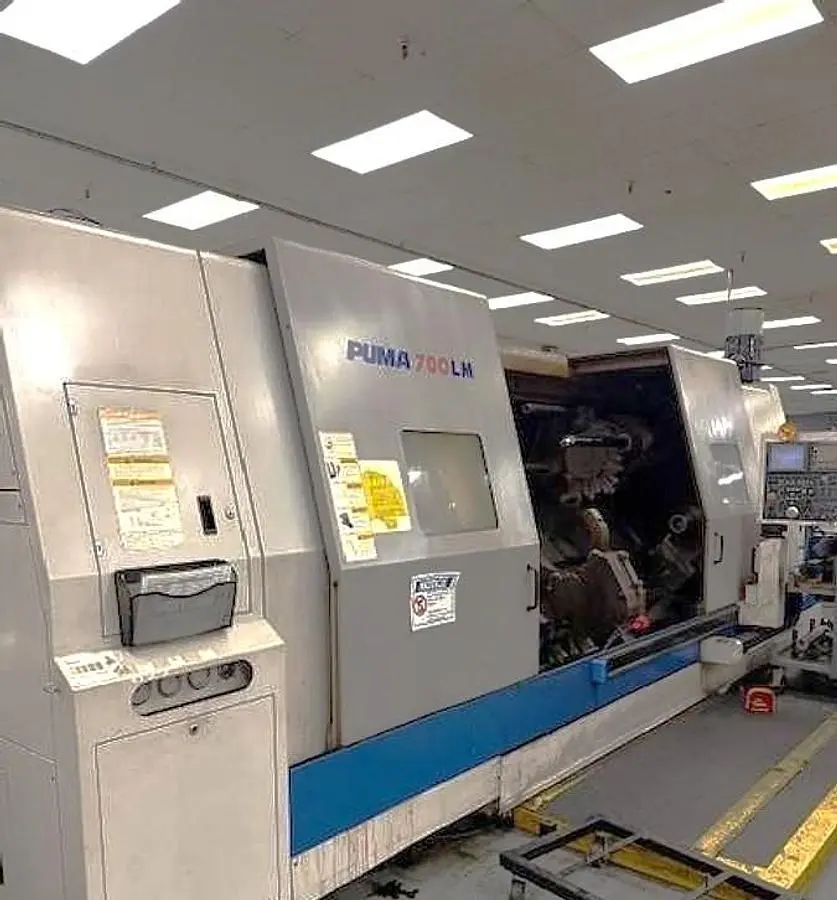

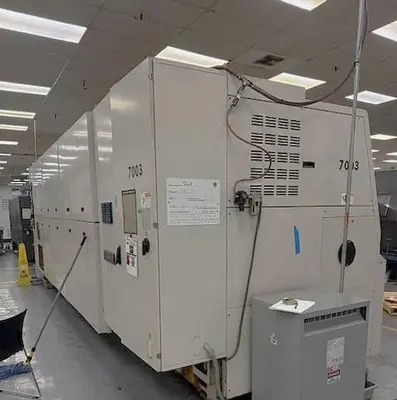

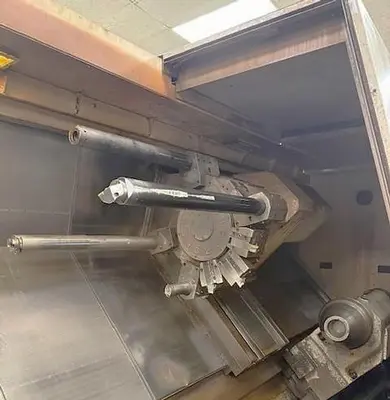

USED 2006 DOOSAN PUMA 700LM

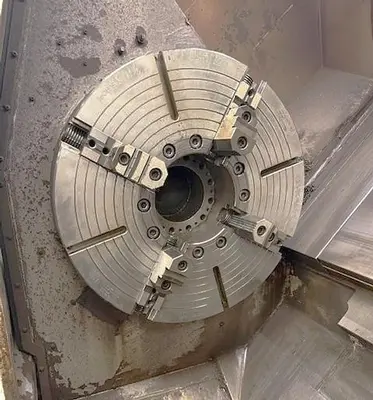

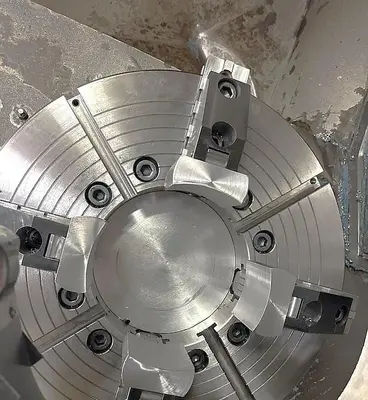

32" 4 Jaw Manual Chuck
6.5" Bar Capacity

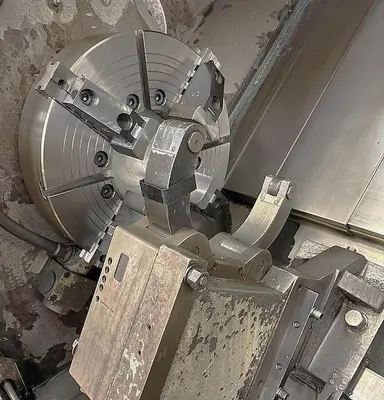

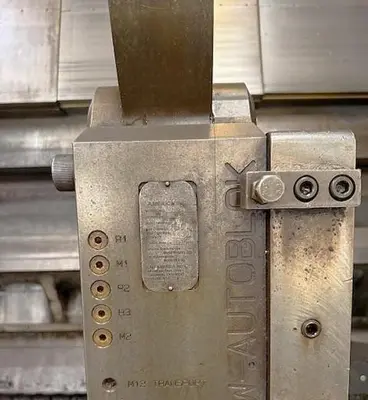

SMW Autoblok Hydraulic Steady Rest with 16" Capacity

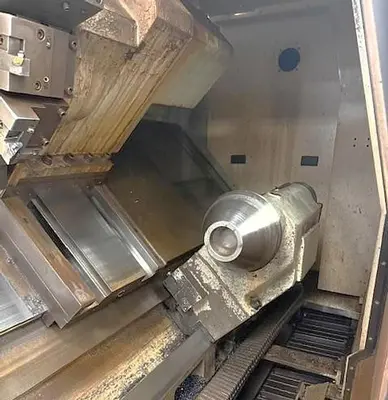

Tailstock
Chip Conveyor
Tool Presetter
High Pressure Coolant System
12 Station Bolt On Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
Wired 200/220V Electrics
All Available Manuals
All Available Tooling (NO Perishable Tooling is Included, Only Tool Holders)
Will Include Some Live Tool Holders

The 2006 Doosan Puma 700LM is a robust and versatile CNC lathe designed for precision and efficiency, ideal for operations needing comprehensive turning capabilities. Equipped with a Fanuc Series 21i-TB Control, this machine offers intuitive management of its diverse functionalities. It features a 32" 4-jaw manual chuck and a generous 6.5" bar capacity, making it suitable for handling large and demanding workpieces with a maximum swing over bed of 40.6" and a maximum turning diameter of 31.5".

The Puma 700LM is designed to accommodate longer pieces, with a notable 126" distance between centers. Its travel capacities include an X-axis travel of 18.5" and a Z-axis travel of 133.8", supported by rapid traverse rates of 472 IPM on the X-axis and 397 IPM on the Z-axis. The machine’s spindle operates in three ranges with speeds from 3 to 1500 RPM, powered by a robust 60 HP motor, allowing for high performance even under demanding conditions.

Additional features like the SMW steady rest, tailstock, conveyor, and a 12-position bolt-on style turret enhance its operational flexibility. The rotary tool is capable of speeds ranging from 30 to 3,000 RPM, driven by a powerful 15 HP motor. These specifications, combined with the machine's sturdy build weighing 48,400 lbs., make the Doosan Puma 700LM a reliable choice for various complex machining tasks.

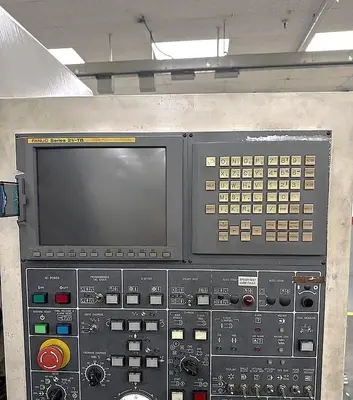

Machine Control: Fanuc Series 21i-TB Control
Chuck size: 32" 4 Jaw Manual Chuck
Maximum Swing over Bed: 40.6"
Maximum turning diameter: 31.5"
Maximum Distance Between Centers: 126"
Maximum Bar Capacity: 6.5"
X axis travel: 18.5"
Z axis travel: 133.8"
C Axis Spindle Rotation: .001 Degree
Spindle Nose / Spindle Bore / Bar Capacity: A1-15" / 7.12" / 6.5"
Spindle speed: 3 - 1500 RPM (3 Ranges)
Spindle motor (30 min / cont): 60 / 50 HP
Rotary Tool Speed / Rotary Motor: 30 - 3,000 RPM / 15 HP
Turret type: 12 Position Bolt on Style Turret
Rapid traverse rates x, z: 472 IPM / 397 IPM
Tailstock Quill Diameter / Quill Travel / Taper: 6.3" / 5.9" / #5 MT
Machine dimensions: 290" x 104" x 102" (355" length with chip conveyor in place)
Machine weight: 48,400 lbs.
