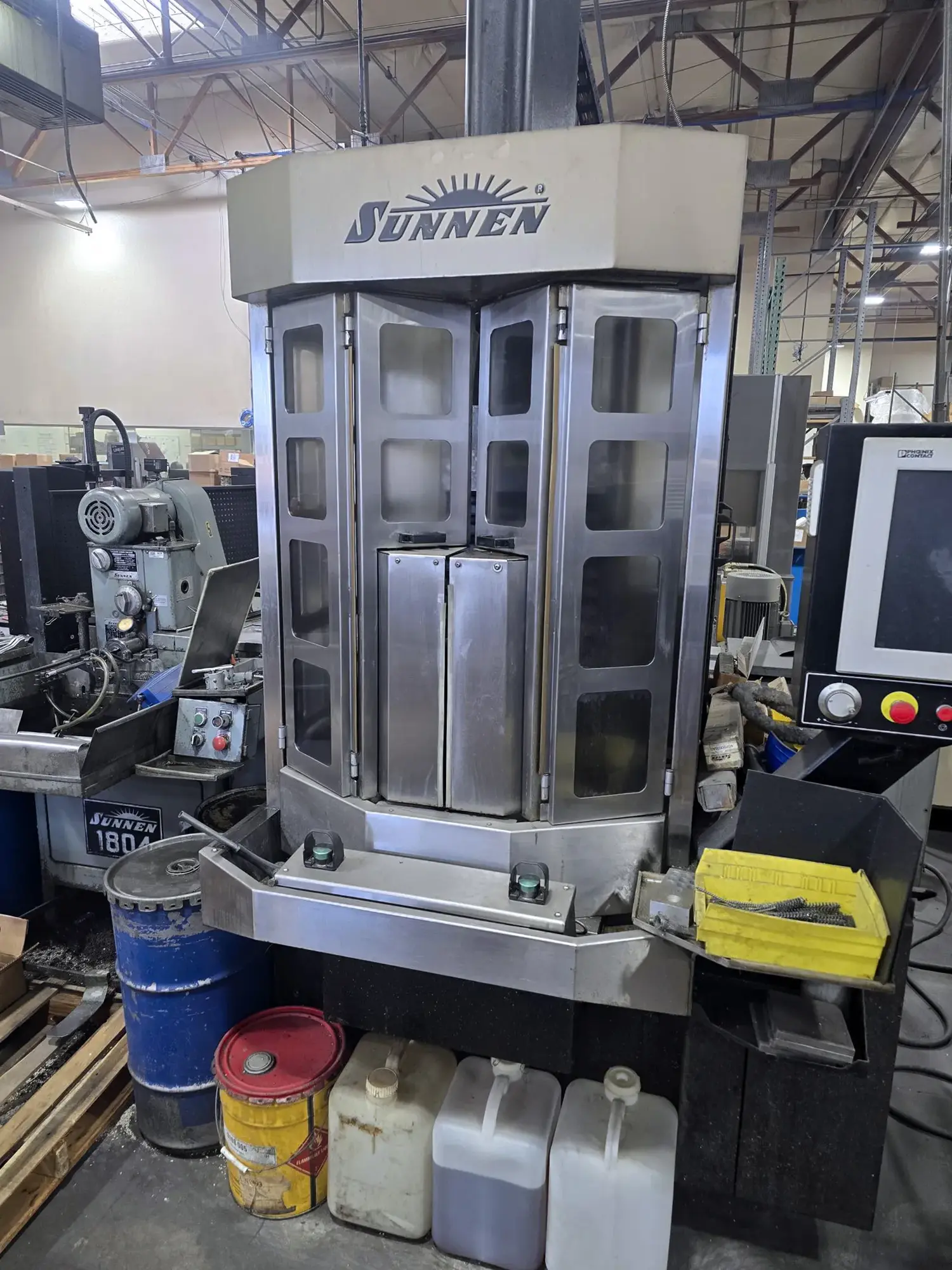

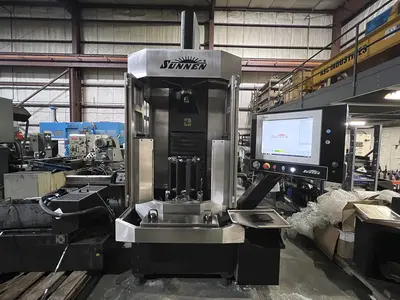

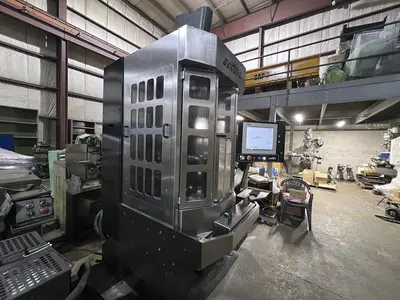

USED 2019 SUNNEN SV‑1005 VERTICAL HONE

5 Position Workholder| Servo Vertical Hone
Boost precision with this Sunnen SV-1005 Vertical Hone (2019), featuring an advanced SV Series touchscreen control for efficient, high-accuracy bore finishing. Ideal for engine blocks, liners, and con-rods, it delivers consistent crosshatch patterns for optimal oil retention. Perfect for hydraulic cylinders, valve bodies, gears, and aerospace components requiring tight tolerances and superior surface finishes.

Bore Capacity: 0.12" – 2.56"
Max Part Length: 9.8"
Work Envelope (X/Y/Z): 6" × 6" × 6"
Vertical Carriage Travel: 24.8"
Spindle Speed: 100 – 4,000 RPM
Stroke Speed: 30 – 400 SPM
Spindle Motor: 7.5 HP
Column Motor: 10 HP

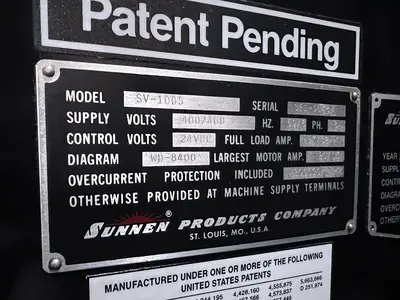

Power Requirements: 400/460V, 3 Phase
Dimensions: 83" × 86" × 114"
Weight: ~4,750 lbs

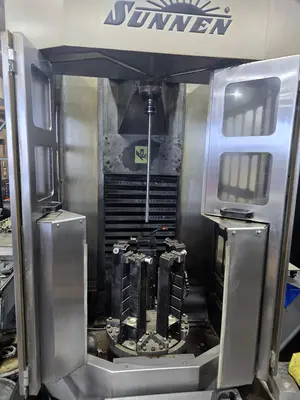

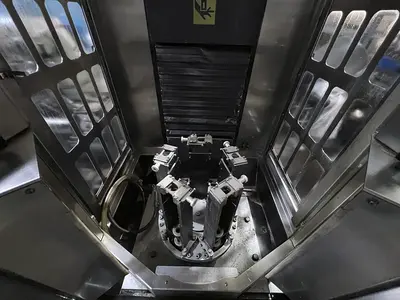

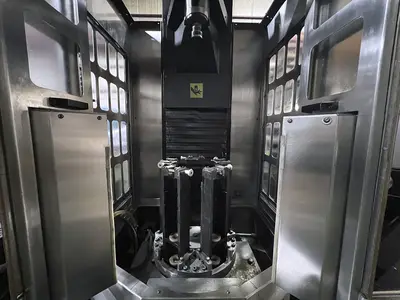

5 Position Rotary Indexing Workholding Table

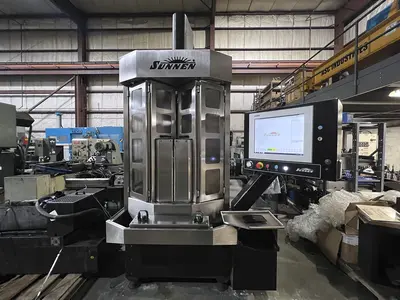

Sunnen SV Series Touchscreen HMI Control

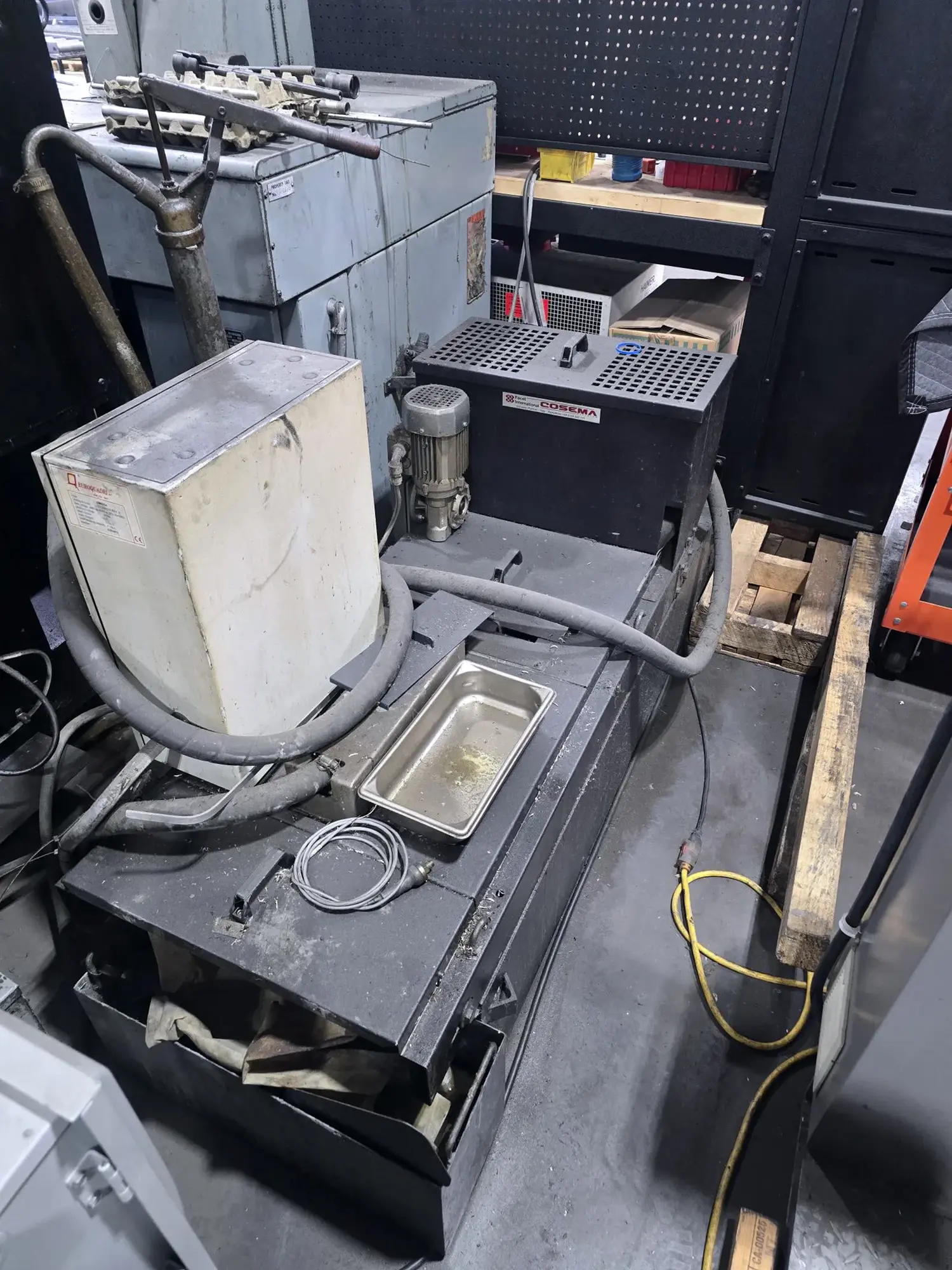

Coolant Tank
Filtration System
