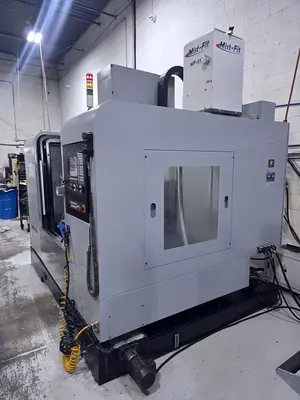

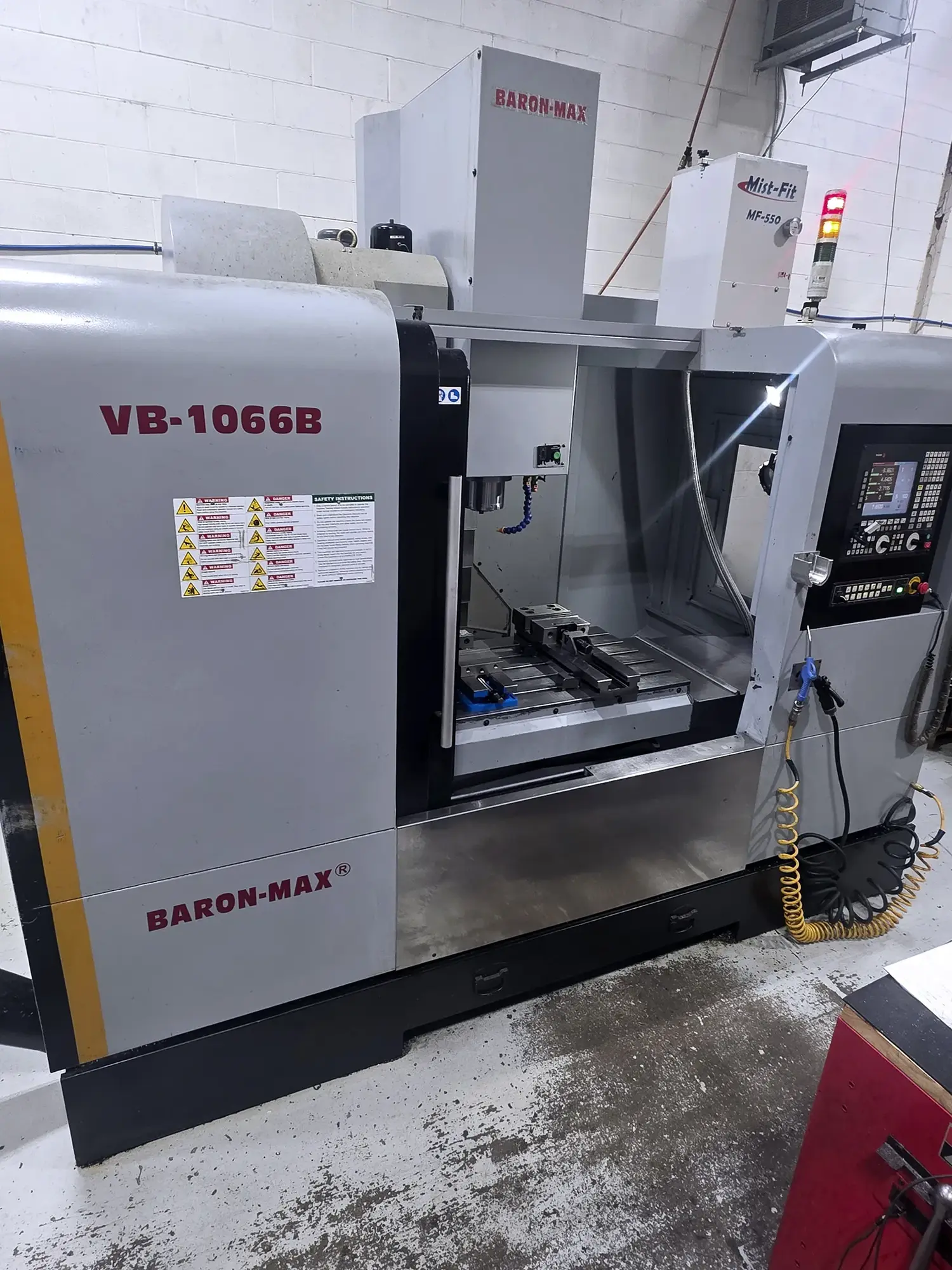

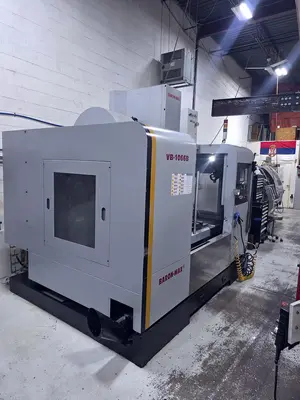

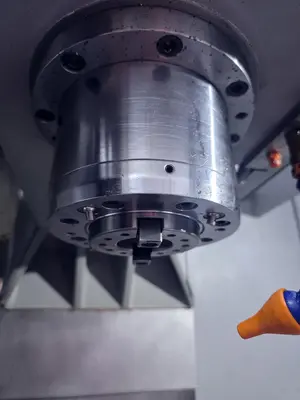

USED 2016 BARON-MAX VB-1066B
Overview
3800 hours| 4th axis pre-wired| High Pressure thru-spindle|
Increase machining efficiency with this Baron-Max VB-1066B Vertical Machining Center (2016) featuring Fagor Control. Built for heavy-duty milling, drilling, tapping, and boring, it delivers exceptional precision and rigidity for demanding applications. Ideal for mold making, die work, toolroom operations, and 4th-axis machining, it handles complex parts and harder materials with high-speed accuracy and reliability.
Specs

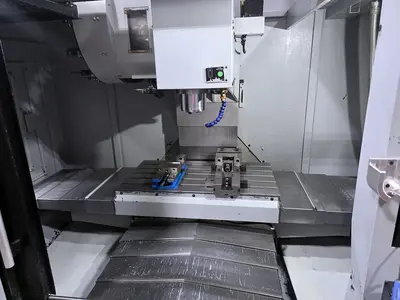

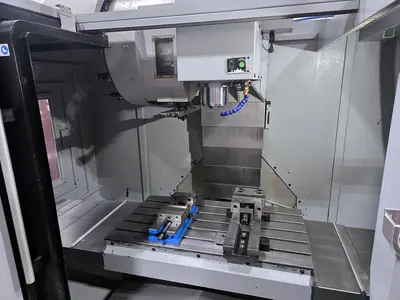

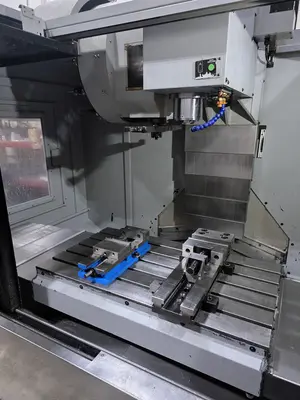

Table Size: 23.6” × 43.3”
Max Table Load: 1,700 lbs
Travels: X 41.3” | Y 23.6” | Z 23.6”
Spindle to Table Distance: 3.94” – 27.93”

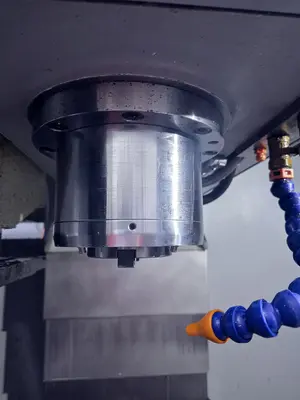

Spindle Motor: 15 HP (direct drive)
Spindle Speed: Up to 12,000 RPM
Spindle Taper: BT40
Cutting Feed Rate: 393 IPM
Rapid Traverse: X/Y 944 IPM | Z 787 IPM
Tool Changer: 24-tool arm type
Machine Weight: 14,300 lbs

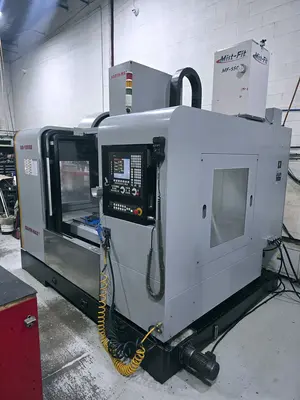

Control: Fagor 8055i-Power control with 11” color LCD, USB, Ethernet & RS232 connectivity
Hours: 3827 spindle hours
Equipped With
Box ways for exceptional rigidity & stability
High-pressure thru-spindle coolant (20 bar) with filtration
Screw-type chip auger
Spindle chiller
Rear washdown system
Automatic lubrication system
4th axis pre-wire
Ground ballscrews with double nuts
Full enclosure guarding with interlock
Way covers on X Y & Z
End-of-cycle signal light
Halogen work lamp
Coolant system included
Transformer 575V / 3-phase / 60Hz
CSA approved
