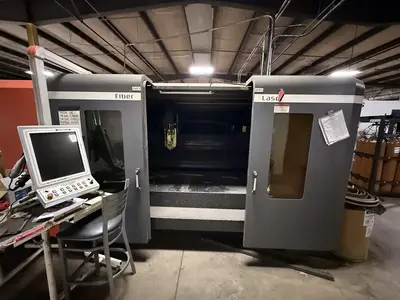

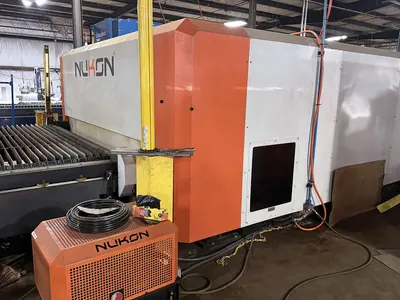

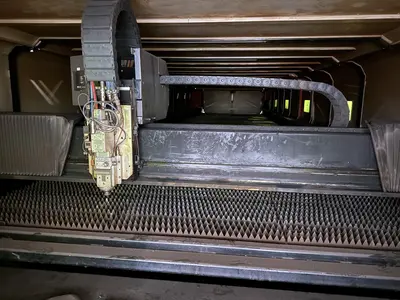

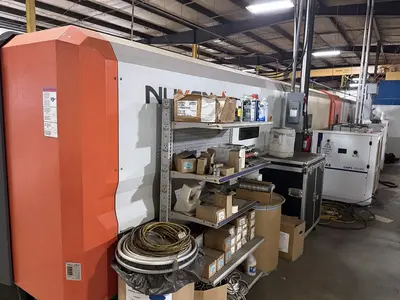

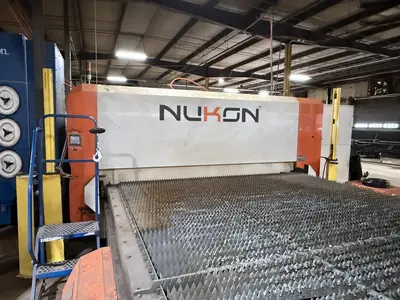

USED 2016 NUKON 12525

8' x 40' Table| 4kW| Dual tables
The Nukon 12525 4kW Fiber Laser with 8' x 40' dual tables (2016) is a high-performance CNC laser cutting system built for large-format, high-speed sheet metal fabrication. Designed for precision cutting and continuous production, it delivers exceptional efficiency for manufacturing complex metal components in agriculture, automotive, defense, and industrial shelving industries. Its dual-table configuration maximizes productivity by reducing downtime, making it an ideal solution for demanding industrial fabrication environments.

Table Size: 8'x 40'
Sheet / table size: 99.61" × 474.41"
X Axis: 474.41"
Y Axis: 99.61"
Z axis: 5.71"
Working table height: 35.43"
Acceleration: 472.44 in/s²
Max axis speed (X/Y simultaneous): 4,133.86 in/min
Positioning accuracy (Pa): 0.00394"
Max loading capacity: 30,865 lb
Shuttle table change time: 125 sec

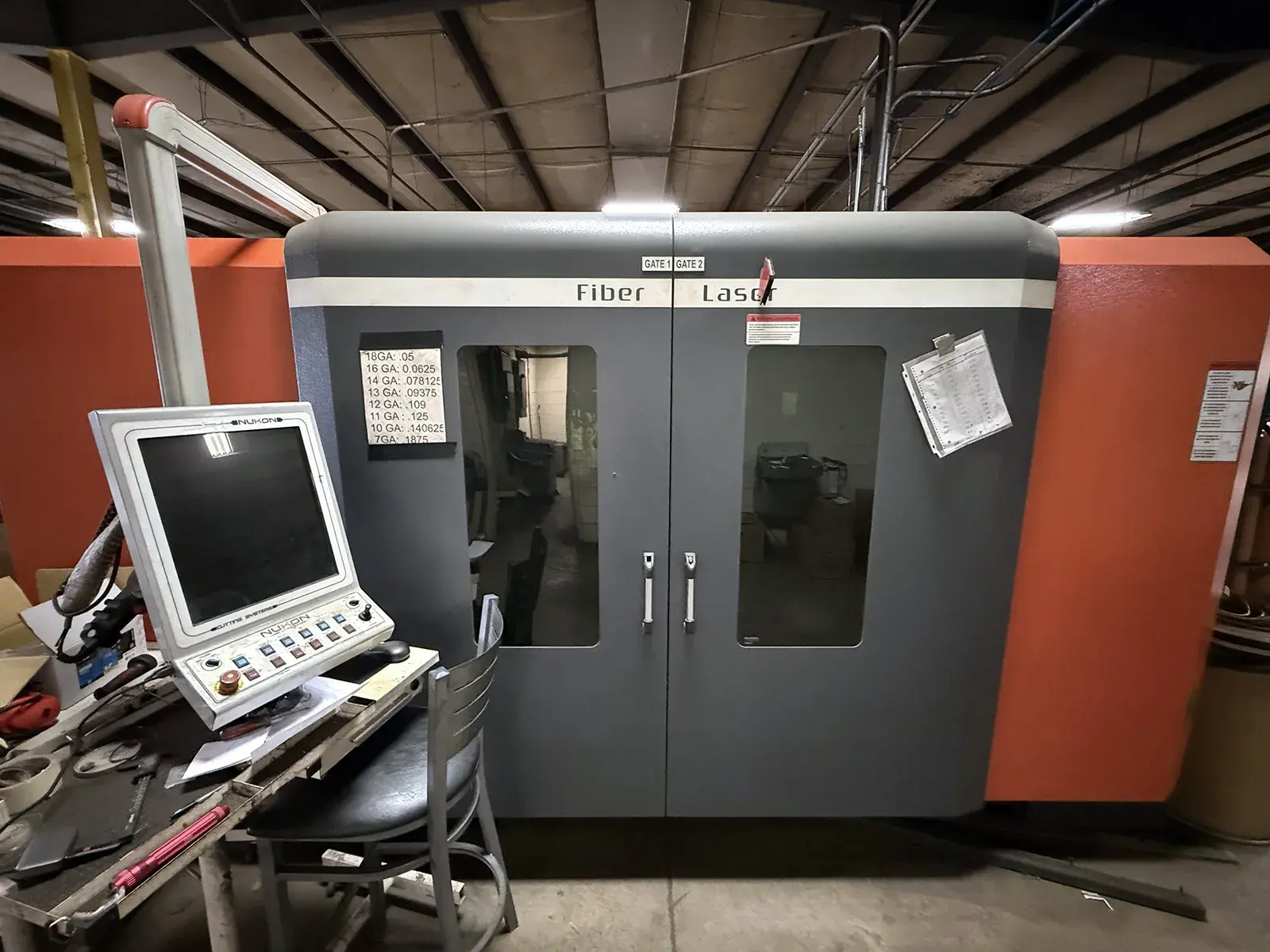

Control panel: 19" multitouch screen
Assist gas pressure - O₂: ~218 psi (15 bar)
Assist gas pressure - N₂: ~363 psi (25 bar)
Power consumption (4 kW column): 32 kVA, 380–400V, 3-phase ±10%
Mild Steel: 0.787" (20 mm)
Stainless Steel: 0.472" (12 mm) / up to 0.591" (15 mm*)
Aluminum: 0.394" (10 mm) / up to 0.472" (12 mm*)
Brass: 0.236" (6 mm) / up to 0.315" (8 mm*)
Copper: 0.236" (6 mm) / up to 0.315" (8 mm*)
APPROX MACHINE WEIGHT: 110,231 lb

Dual Tables

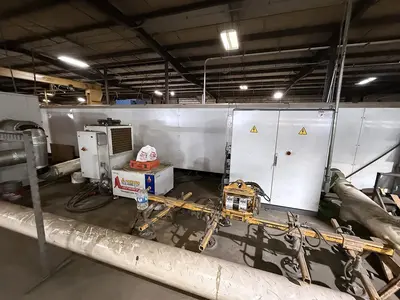

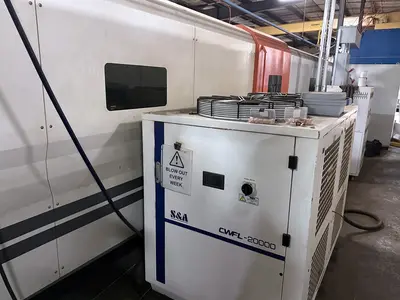

Chiller

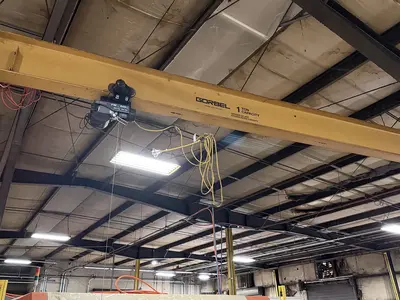

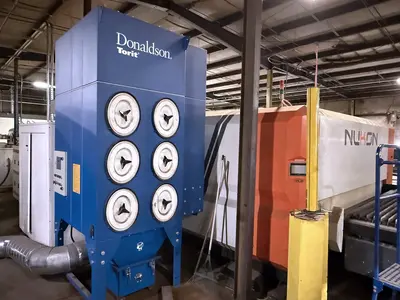

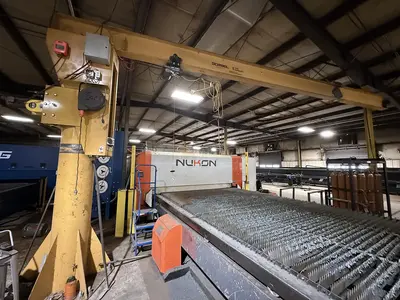

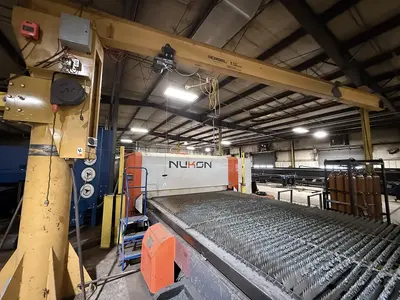

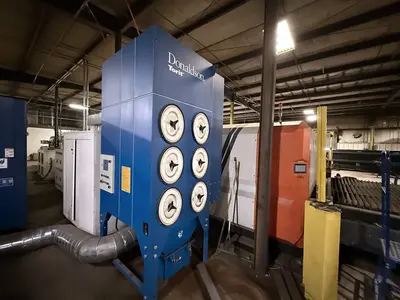

Jib Crane Dust Collector
