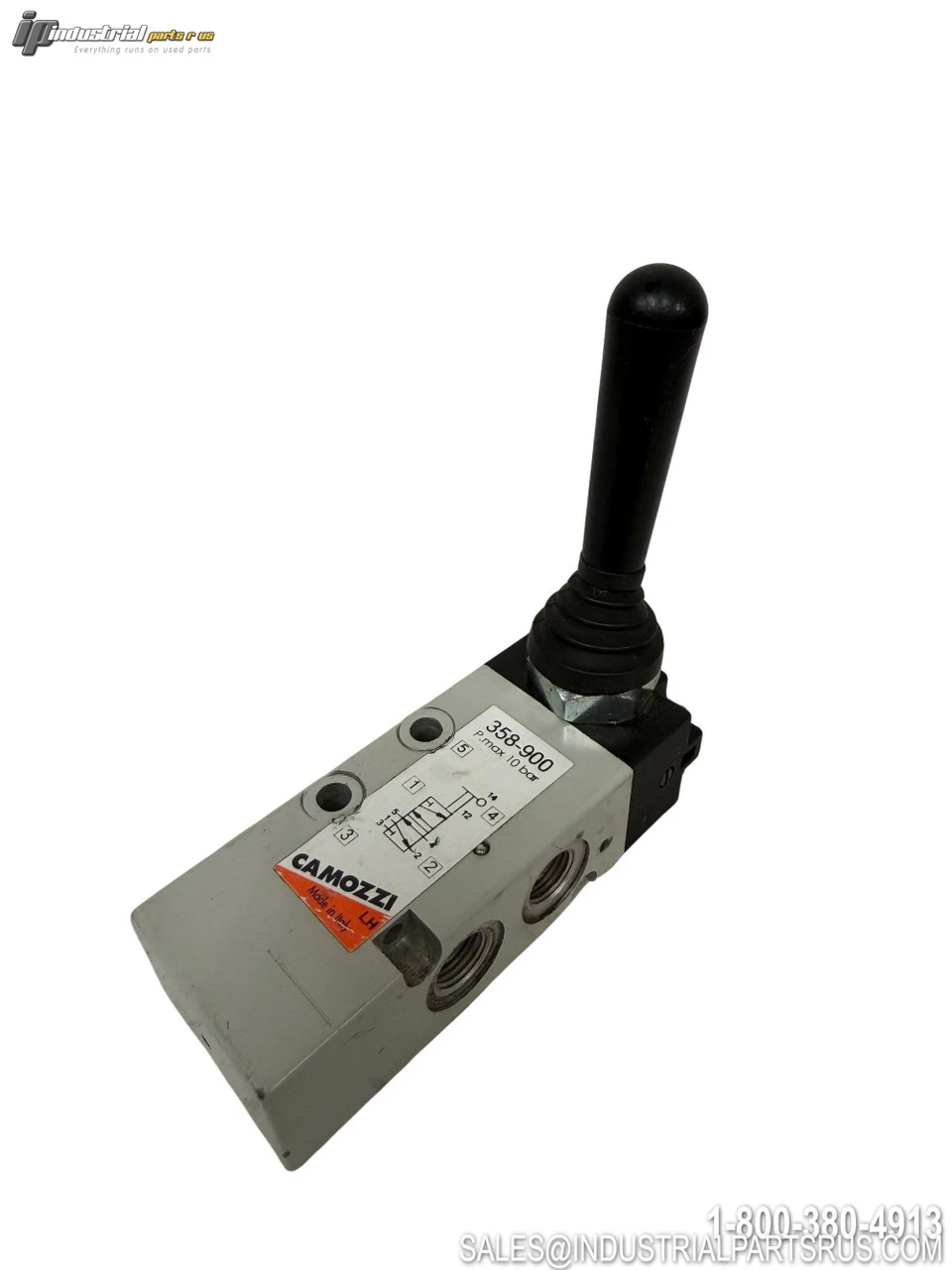

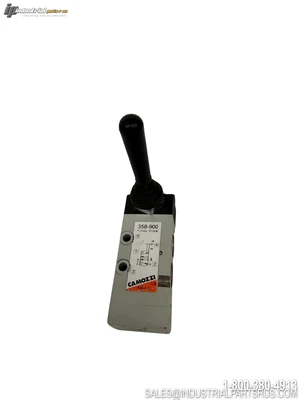

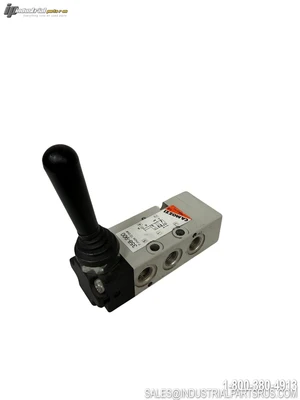

USED CAMOZZI 358-900

The Camozzi 358-900 is a manually operated pneumatic valve from the Series 3 range, designed for precise air control in industrial automation applications. This 5/2-way valve features lever actuation with bistable operation, providing reliable switching between two stable positions. The valve is constructed with an aluminum body, stainless steel spool, and NBR seals for durability in compressed air systems.
Specification
Value
Brand
Camozzi
Model/Part Number
358-900
Valve Function
5/2-way (5 ports, 2 positions)
Series
Series 3
Actuation Type
Manual Lever
Operation Type
Bistable
Port Connection
G1/8 (1/8" BSPP)
Flow Rate
700 L/min
Operating Pressure
-0.9 to 10 bar
Design Structure
Spool Valve
Body Material
Aluminum
Spool Material
Stainless Steel
Seal Material
NBR
Mounting Type
Through Holes/Panel Mount
Operating Medium
Filtered Air (without lubrication)
Ambient Temperature
0°C to 60°C
Medium Temperature
0°C to 50°C
Actuating Force
5N
Weight
0.179 kg
We warranty all items for 30 days from date of purchase.

SKU: AI1521
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Camozzi
Part Number: 358-900
Shelf: J-91
Model: 358-900
MPN: 358-900
Type: Pneumatic Valve
