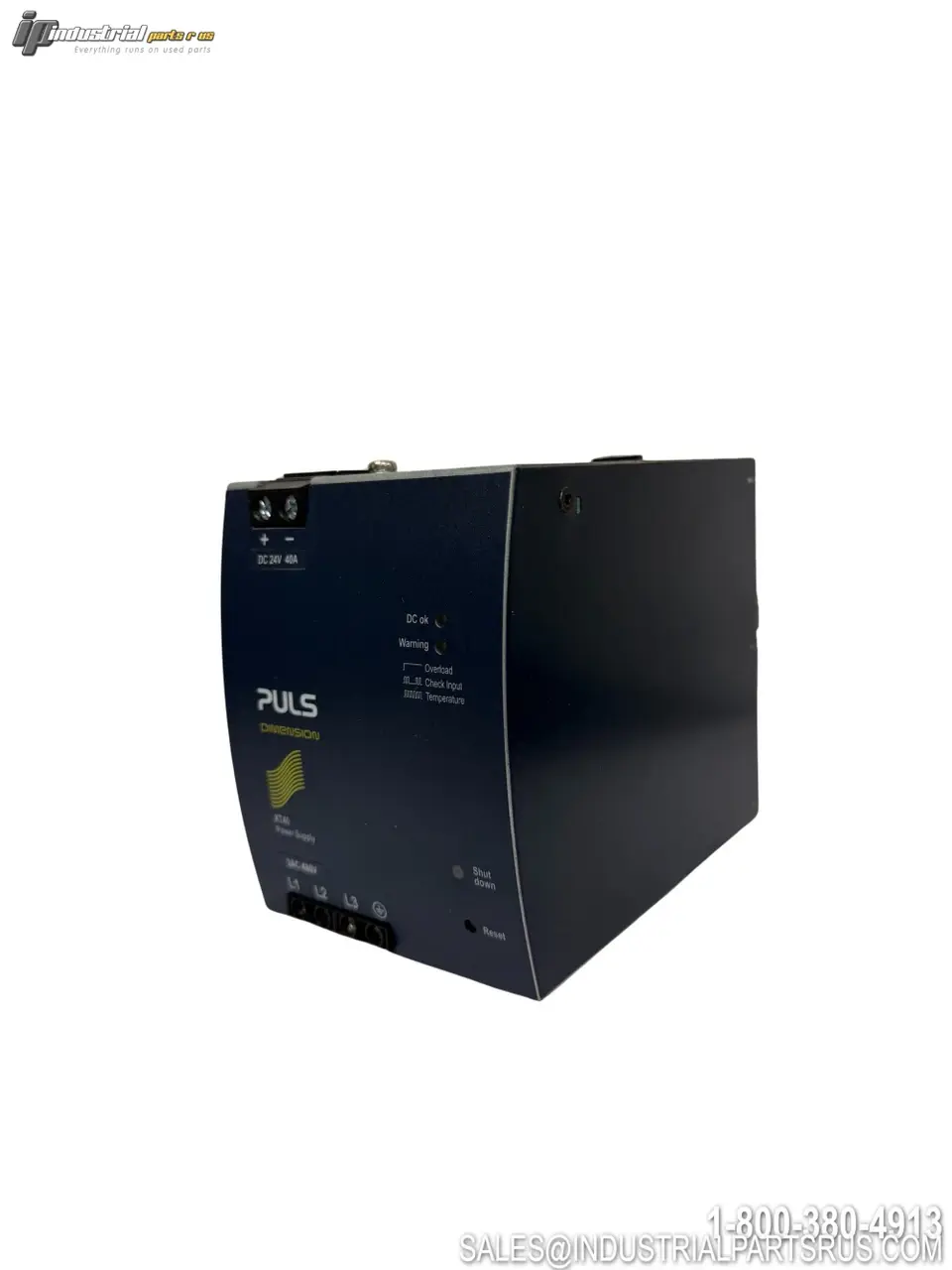

USED PULS XT40.242

The XT40.242 is a 960W 3-phase DIN rail power supply from Puls's DIMENSION X-series. A semi-regulated resonant converter enables a very compact design maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation output ripple and hold-up time. This unit is ideal for industrial applications requiring reliable DC power for motors, valves, and other high-power loads.
Specification
Value
Brand
Puls
Model/Part Number
XT40.242
Series
DIMENSION X-Series
Output Voltage
24VDC (fixed)
Output Current
40A
Output Power
960W
Input Voltage
3x432-528VAC (440/480/500/525VAC nom.)
Input Phases
3-Phase
Frequency
47-63Hz
Input Current
1.4A/phase (@ 480VAC)
Power Factor
0.93
Efficiency
95.5%
Design
Semi-regulated
Mounting
DIN Rail
Dimensions
96 x 124 x 159mm (W x H x D)
Weight
1.4kg
Operating Temperature
-25°C to +70°C
Power Reserve
25%
Output Ripple
<1500mVpp
Overvoltage Protection
29.9VDC max
Connection Type
Screw terminals
Approvals
UL 508, CE, IEC 60950
We warranty all items for 30 days from date of purchase.

SKU: AI1518
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 2A peak
Manufacturer: Puls
Part Number: XT40.242
Shelf: F-11
Model: XT40.242
MPN: XT40.242
Type: Power Supply
