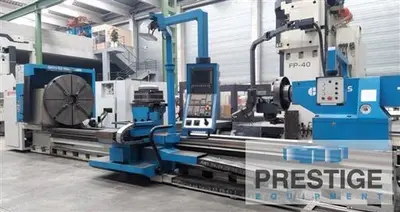

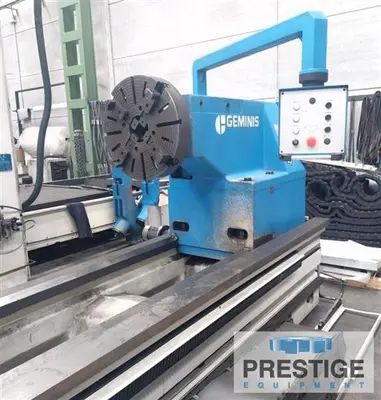

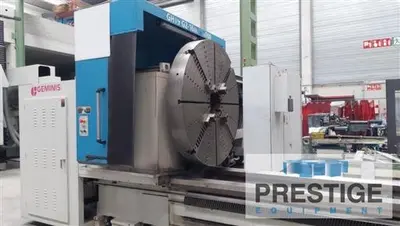

USED 2011 GEMINIS GHT G2 1600X6000

SPECIFICATIONS:
Swing Over Bed: 62.99"
Swing Over Carriage: 43.70"
Distance Between Centers: 236.22"
Spindle Bore: 5.90"
Spindle Speeds, 4 Range: 0 - 710 RPM
Max. Weight Capacity, Unsupported: 20 Ton
Max. Weight Capacity, 2 Steady Rests: 30 Ton
Tailstock Quill Diameter: 9.44"
Tailstock Quill Travel: 10.62"
Approx. Machine Footprint: 400" x 101"
Approx. Machine Weight: 66,000 Lbs

Equipped With:

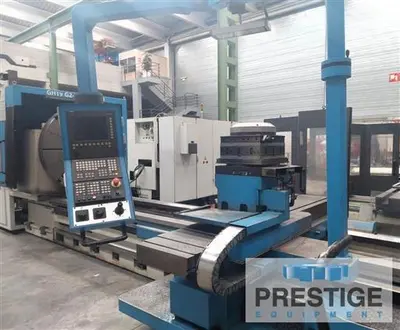

Siemens Sinumerik 840D Powerline CNC Control
Sauter 4-Position Auto Indexing Turret
Motorized Tailstock
55.1" Independent 4-Jaw Chuck
22" Independent 4-Jaw Chuck
19.6" Steady Rest
35.4" Steady Rest
Chip Conveyor

Features:
Siemens Sinumerik 840D Powerline CNC Control
30 Ton Weight Capacity
Sauter 4-Position Auto Indexing Turret
