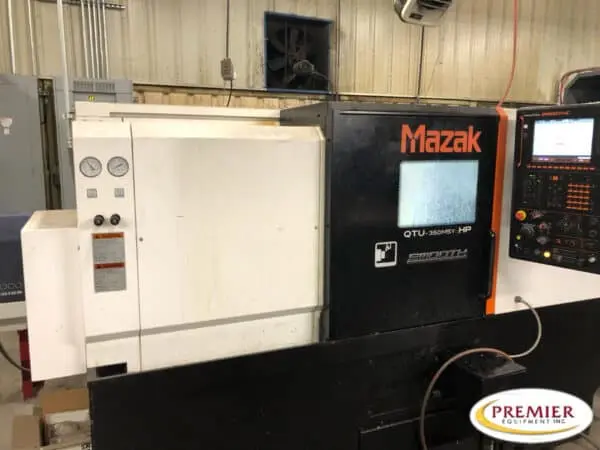

Mazak QTU-350MSY HP – 2019

Mazak QTU350MSYHP CNC Turning Center with Milling

Maximum swing:   27.4”
Recommended Turning Diameter:   10”
Maximum Turning Diameter:   13.5”
Bar Working Diameter:   3.03”
X-Axis Travel:   8.5”
Y-Axis Travel:   +/-2”
Z-Axis Travel:   23.75”
Main Spindle
Max Spindle Speed:   3500 RPM
Motor:  30HP
Spindle Through Hole:   3.5”
Second Spindle
Max Speed:  6000 RPM
Spindle Nose:  A2-5
Spindle Thru Hole:  2.4”
No. of Turret Stations:   12

Mazatrol SmoothC Control
Oil Skimmer
Parts Catcher
Sub Spindle
Edge Rebel 80 Barfeeder

Chip Conveyor
