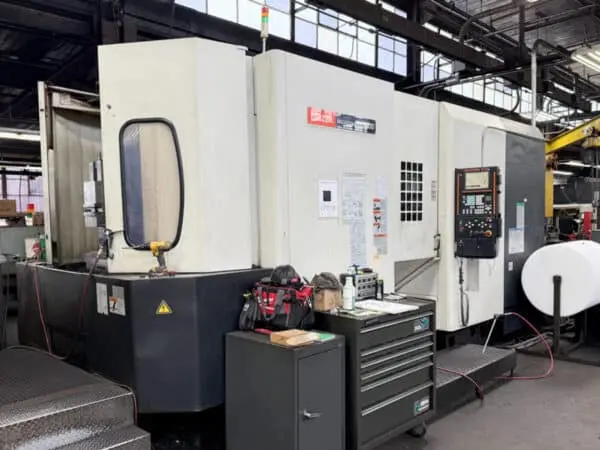

Mazak FH-6800 – 2006

Mazak FH6800 CNC HMC
Specifications

Pallet Size 24.8″ x 24.8″

#/Pallets 2

Max Table Load Capacity 3315 lb

Table Positioning NC Positioning

Distance From C Surface to Spindle Center 3.9″-35.4″

Distance From Table Top Spindle Nose 5.9″-40.6″

Spindle RPM 7000 RPM

X Axis Travel 41.3″

Y Axis Travel 31.5″

Z Axis Travel 34.7″

Number of Tool Stations 80 ATC

Maximum Tool Diameter 5.31″

Max Tool Dia Adjacent Pocket Empty 10.2″

Maximum Tool Length 19.7″

Maximum Tool Weight 66 lb

Spindle Taper CAT 50

Main Spindle HP 50/40 HP

Machine Weight 43,430 lbs.

Mazatrol Fusion 640M

Hi-Pressure Coolant Thru Spindle (1000 PSI)

Signal Tower (3 Color Lights)

Work Piece Air Blast
