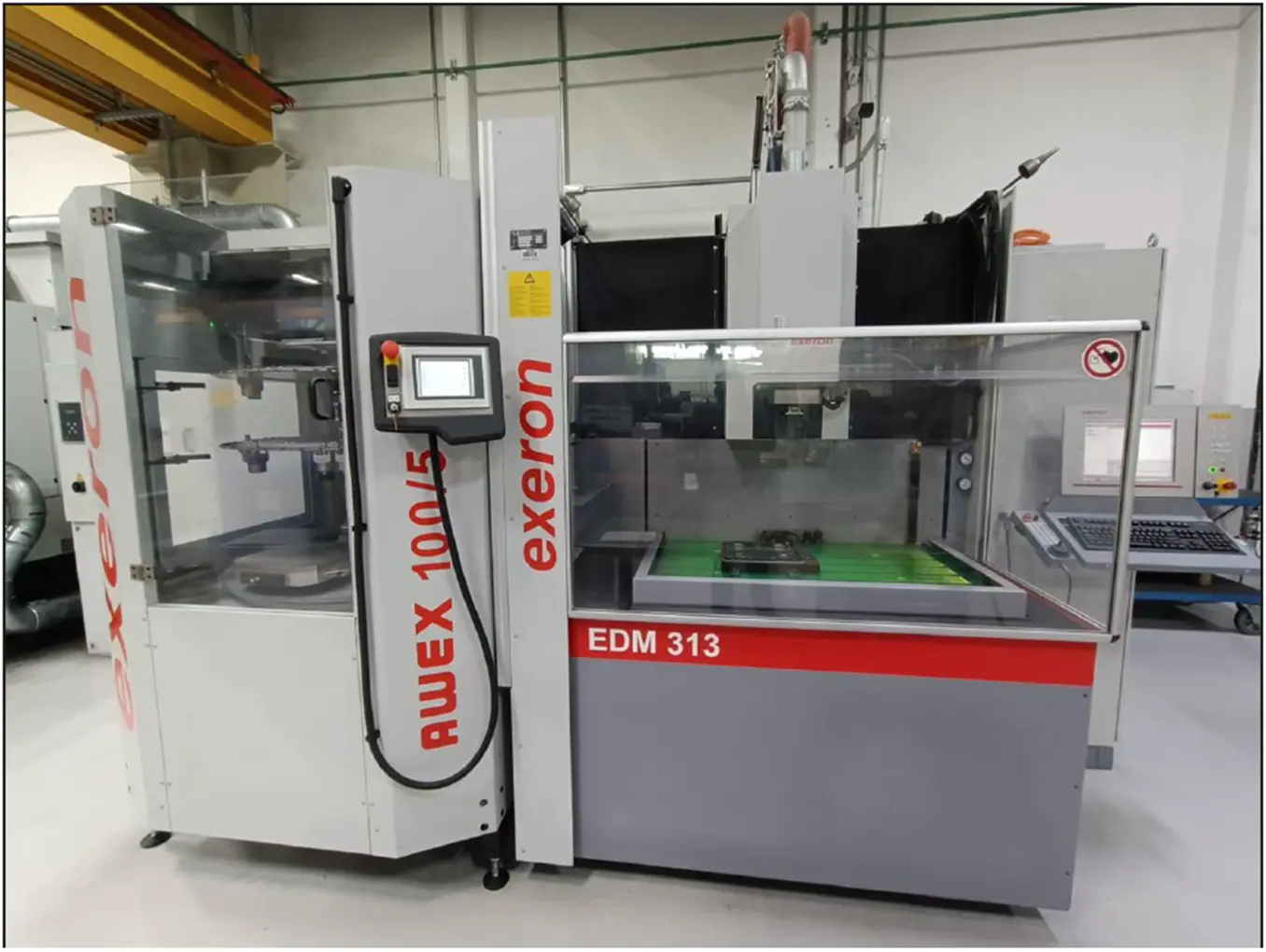

USED 2016 EXERON EDM 313
Overview
Only 900 Hours. Used for training. Exeron EDM 313 High-Precision CNC Sinker Type EDM Electrical Discharge Machine (2016) With AWEX100/5 Fully Automatic Workpiece and Pallet Changing System
Specs
Exeron EDM 313 High-Precision CNC Sinker Type EDM Electrical Discharge Machine (2016)
X/Y/Z Travels: 620 x 420 x 400 mm (approx. 24.4" x 16.5" x 15.7").
Machine Table: 1000 x 600 mm.
Work Tank (internal): Approx. 1070 x 670 mm.
Distance Table/Quill: Min./Max. 150/550 mm.
Max. Electrode Weight: 50/250 kg.
Max. Workpiece Weight: 1,500 kg.
Drives: Digital AC servo direct drives with glass scales on all axes.
Generator and Performance
Generator Current: 60 A (Standard).
Generator Technology: exopuls+ (designed for low electrode wear).
Power Consumption: Approx. 11 kVA.
Max. Pulse Current: 60 A - 120 A (depending on configuration).
Control and Software
Control Unit: MF30 Control (based on Windows).
Operating System: Windows 10 with Intel Core i5 processor.
Features: Touchscreen interface, integrated dielectric device, automated cooling, and 3D simulation.
Programming: exo-prog (menu-controlled, no NC syntax required).
Structure and Dimensions
Machine Base: Undivided mineral cast for high stability.
Total Weight: ~4,200 kg.
Dimensions (W x D x H): ~2,430 x 2,450 mm (footprint varies based on peripheral, such as filter systems).
Key Options Available
C-Axis: For high-precision positioning and simultaneous motion.
Electrode Exchanger: 30-slot capacity.
Fire Protection: Integrated CO
system.
Filtering: Cartridge filter system or backflush filter system
Equipped With
Only 900 Hours. Used for training.
Exeron AWEX100/5 fully automatic handling system designed for high-precision workpiece and electrode management.
Automation Capacity: Handles up to 100 electrodes (tooling) and 5 pallets, allowing for extensive unattended operation.
Compatibility: Adaptable to exeron EDM machines like the EDM 312MF30+AWEX100/5.
System Integration: Often combined with Erowa ITS automatic keyless chucks for secure clamping.
Performance: Designed for high-speed electrode handling and pallet changing to maximize efficiency.
Design: Part of exeron’s German-made automation solutions, featuring robust construction for tool and mold making
