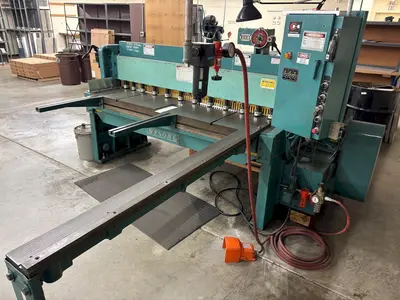

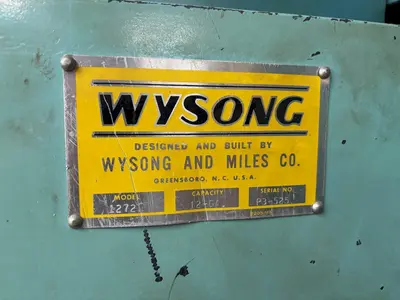

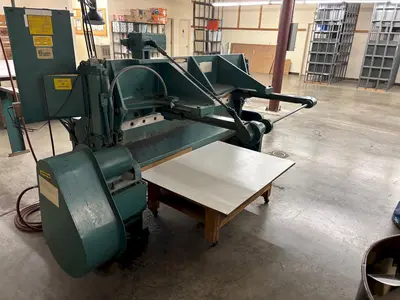

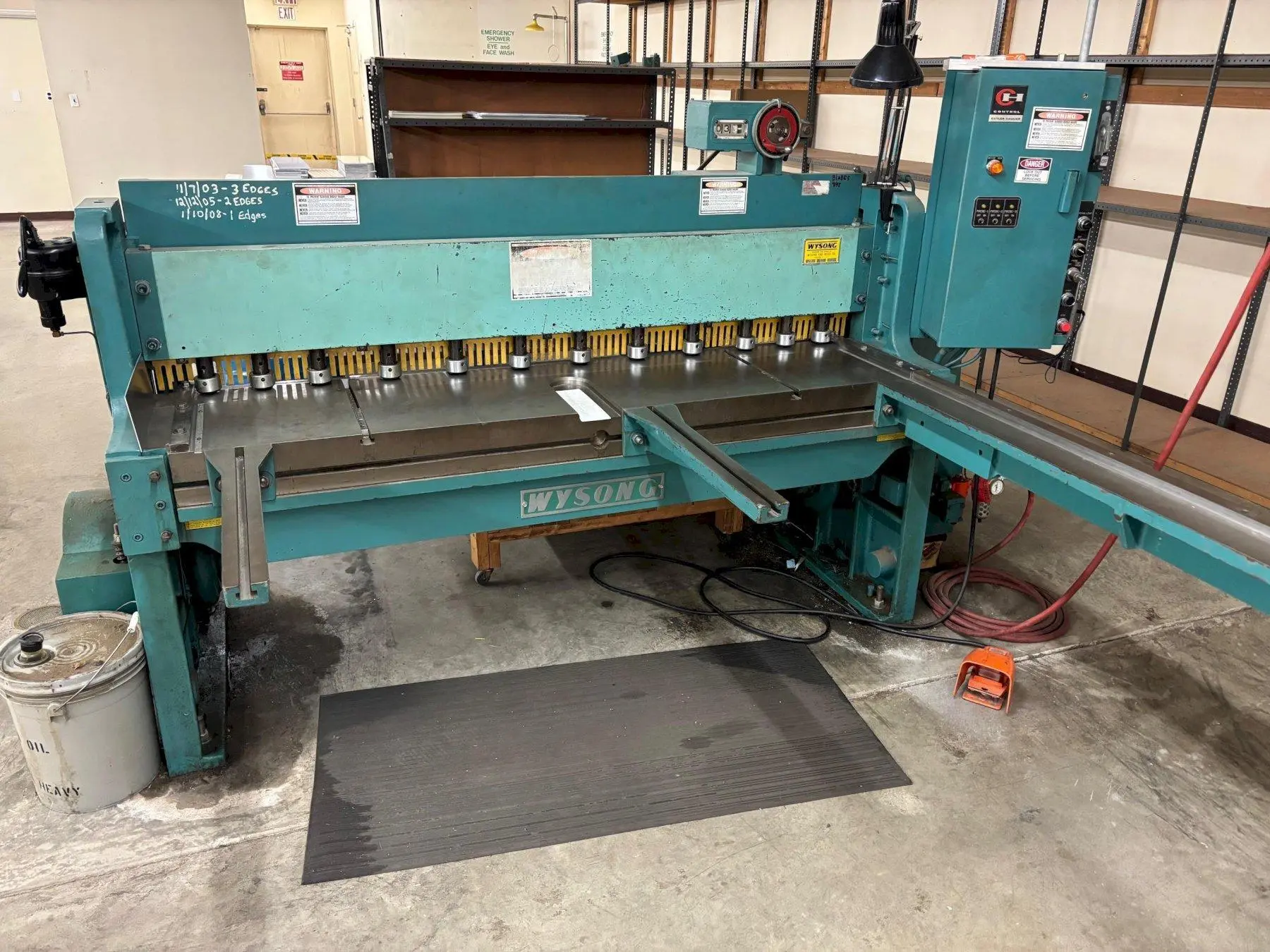

12 Ga. x 6' WYSONG MECHANICAL SHEAR MODEL 1272
Overview
Specifications
12 Ga. x 6' WYSONG MECHANICAL POWER SHEAR
MODEL 1272
SPECIFICATIONS:
CAPACITY, MILD STEEL .................... 12 GA
CAPACITY, STAINLESS STEEL ......... 14 GA
CUTTING LENGTH .............................. 72"
RAKE OF UPPER BLADE .................... 3/8"
NO. OF HOLDDOWN FEET .............. 12
BACK GAUGE RANGE ........................ 24"
SPEED ...................................................... 60 SPM
APPROX. WEIGHT .................... 5,500 LBS.
FLOOR SPACE WITH GAUGES ... 113" L-R x 86" F-B x 72" H
FLOOR SPACE WITHOUT SQUARING ARM ... 113" L-R X 48" F-B X 72" H
Equipped With
- 24" CAPACITY FRONT OPERATED MANUAL BACK GAUGE
- SQUARING ARM
- (2) FRONT ARM EXTENSIONS
- AIR ACTUATED CLUTCH WITH REMOTE ELECTRIC FOOT PEDAL
- AUTOMATIC LUBRICATION
- 3 HP, 3/60/220-440 VOLT MOTOR WITH CONTROLS
NOTE: BACK GAUGE IS MISSING THE ANGLE STOP.
FOB: RONKONKOMA, NY
