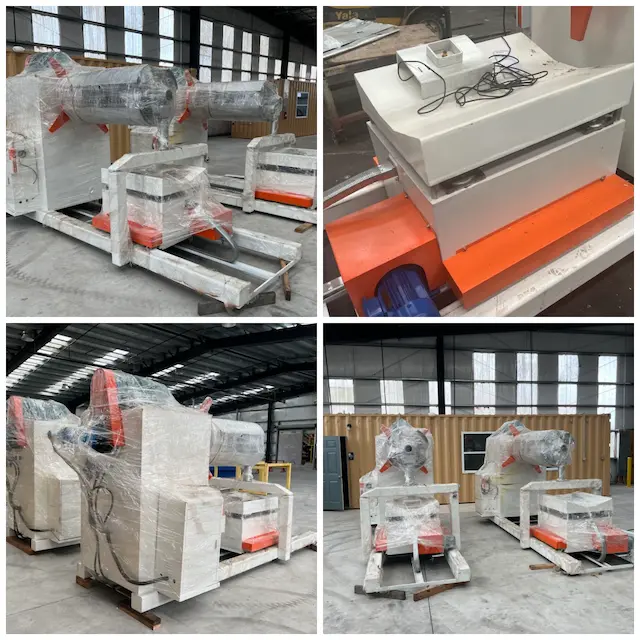

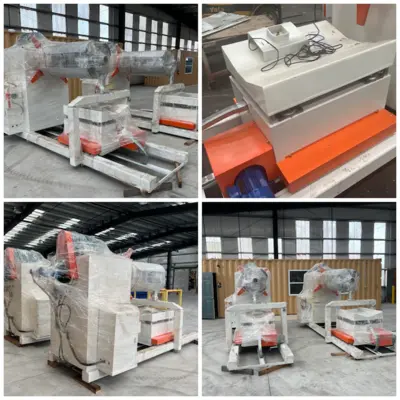

Metal Coil Uncoiler USA

The metal coil handling machine is designed for efficient and precise coil handling in industrial and manufacturing processes. Tailored for the USA market, this machine ensures compliance with local industry standards, making it an ideal choice for businesses in metal fabrication, construction, and roll forming. It combines advanced technology and robust construction, ensuring high performance, durability, and reliability in demanding applications.
The machine is optimized to handle various coil materials such as steel, aluminum, and galvanized sheets. It is equipped with advanced controls and safety features for smooth operation, minimizing downtime and enhancing productivity.
Uncoiler with Hydraulic Car
Models Available: 15,000lb and 10,000lb uncoilers

Decoiling Speed: 60 feet per minute

Maximum Loading Capacity: 10,000lb - 15,000lb

Coil Width: 48 inches

Machine Weight: 3.5 tons

Machine Footprint: 14ft (L) x 6ft (W) x 6ft (H)

Car Size: 35 inches x 28 inches

Working Speed: Determined by the roll former

Controls: Jog controls for precision

Safety Features:
Proximity sensor for automated safety monitoring
Air brake for controlled stopping and enhanced safety
Profiles Related to This Machine
This metal coil handling machine is compatible with a wide range of profiles, making it suitable for diverse applications. Common profiles include:
Roofing Profiles: Designed to create roofing sheets and panels.

Structural Profiles: Used in building frameworks, such as C-channels and Z-channels.

Cladding Profiles: Ideal for wall panel production.

Decking Profiles: Suitable for manufacturing floor decking panels.

Trim Profiles: Used for edge finishing in construction projects.
Each profile's specifications can be customized based on material type, thickness, and intended application. For example:
Material Types: Steel, aluminum, and galvanized sheets

Thickness Range: 0.5mm to 3.0mm

Width Options: Up to 48 inches

Applications: Residential, commercial, and industrial projects
Question and Answer Section
Q1: What types of materials can this machine handle?
A1: This machine is capable of handling steel, aluminum, and galvanized metal coils. It supports a wide range of material gauges, ensuring versatility in applications.
Q2: Is the machine compliant with USA safety standards?
A2: Yes, the machine is designed with safety features like proximity sensors and air brakes, adhering to USA industry standards and regulations.
Q3: Can the uncoiler handle different coil weights?
A3: Absolutely! The uncoiler is available in two models with a maximum loading capacity of 10,000lb and 15,000lb, making it adaptable to various operational requirements.
Q4: What is the decoiling speed?
A4: The machine offers a decoiling speed of 60 feet per minute, ensuring efficient operation for high-production environments.
Q5: How much space does the machine require?
A5: The machine has a footprint of 14ft x 6ft x 6ft, making it compact enough for most manufacturing facilities in the USA.
Q6: Can the controls be automated?
A6: Yes, the machine comes with jog controls for manual operation, but automation can be integrated depending on specific requirements.
Q7: What are the maintenance requirements?
A7: Routine maintenance includes checking the hydraulic system, cleaning the air brake mechanism, and inspecting the proximity sensors for proper functioning.
Q8: Are there customization options for specific profiles?
A8: Yes, the machine can be tailored to produce custom profiles based on your industry needs. Specifications like material thickness, width, and shape can be adjusted.
This metal coil handling machine offers unmatched efficiency and adaptability for businesses in the USA. Whether you're manufacturing roofing sheets, cladding panels, or structural components, this machine provides a reliable and high-performance solution tailored to your production needs.

Machine Specifications
